12V6.5A Desktop Power Adapter Certified By UL

EN60950 12V 6.5A Power Supply Adapter

12v 6.5A Desktop Power Supply Description:

12v 6.5A Switching Power Supply for all types of strip lights, led lighting ,led display, etc.12v 6.5a ac power adapter With short circuit protection, over load protection, stable output voltage.High efficiency is over 80%, low temperature and 100% load tested.has CE, ROHS,GS,UL,FCC,SAA,C-TICK,CB,PSE,KC approved.

12V6.5A AC/DC universal switching power adapter

AC input 100-240Vac

Output: 12VDC 6.5A

100% high voltage test, 100% aging test, 100% full inspection

Built-in over current, over voltage, over load and short circuit protection

High precision, low ripple and low noise

Super-compact designed, light, handy and portable.

Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE

12V6.5A AC/DC power adapter specifications:

Input: 100-240Vac 50/60Hz

Output:12V6.5A

Type: Desktop

Color: Black / white

Size: 140*60.5*34.5mm

Output loading precision: ±5%

Operating temperature: 0℃ -40℃, 5% -90% RH;

Storage temperature: -20℃ -85℃, 5% -95% RH;

Efficiency: Energy Star Level VI & ERP Stage 2 Certified

Certificate: CCC, UL, CE, FCC, CB, GS, SAA, C-tick, Rohs,

Protection: over current, over voltage, over load, short circuit protection

12V6.5A 80W power adapter Electrical:

Dielectric Withstand: 3,000VAC Primary-Secondary

Leakage Current: 0.25mA@2Pin

EMI Conduction & Radiation: Compliance to EN55022  EN55024 FCC Part 15B Class B

Harmonic Current: Compliance to EN61000-3-2

MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332

Output characteristics: constant current / constant voltage mode;

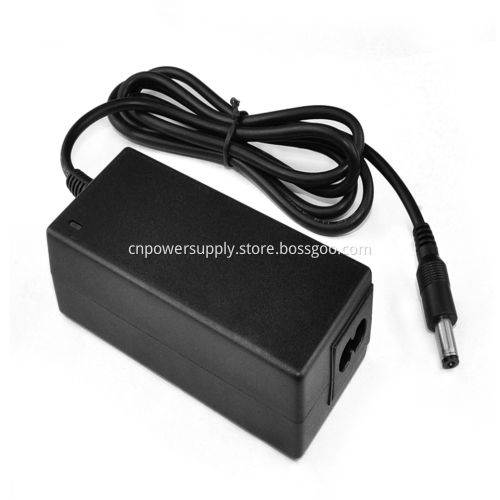

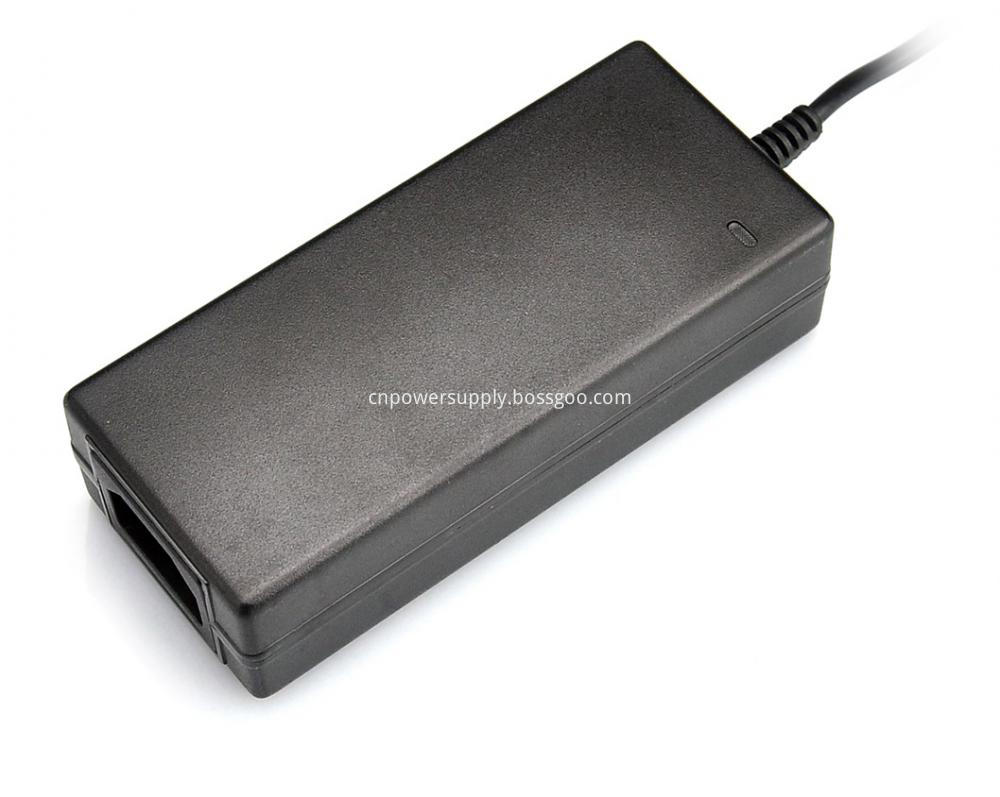

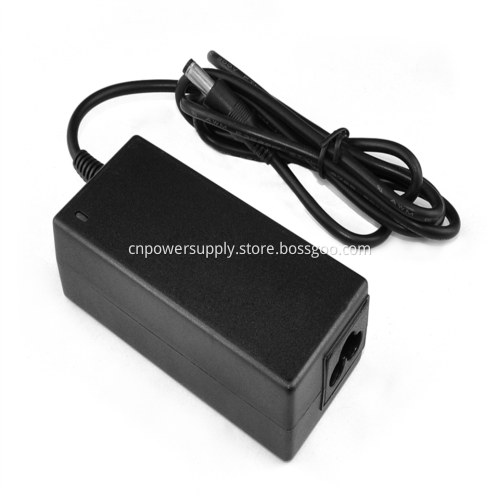

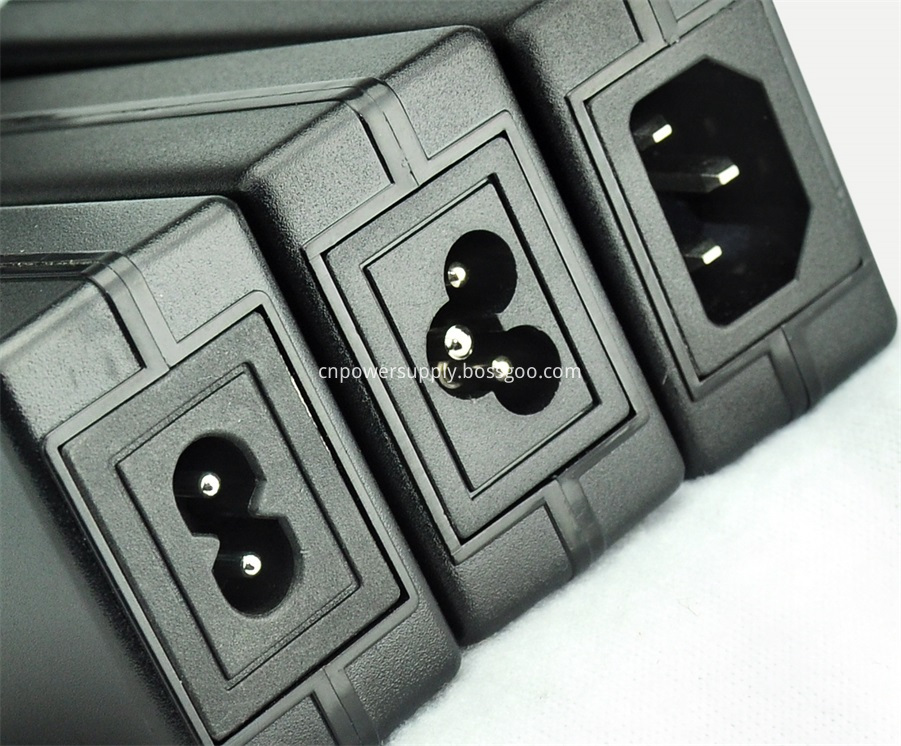

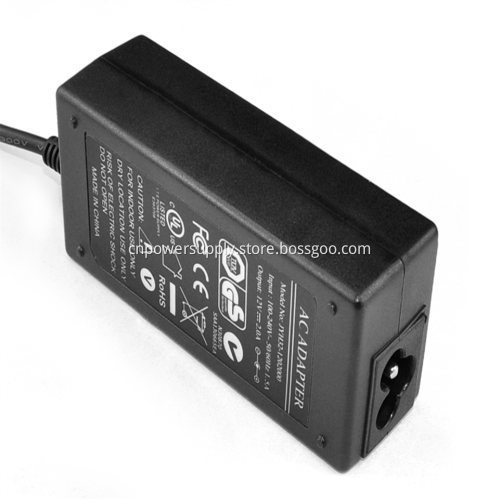

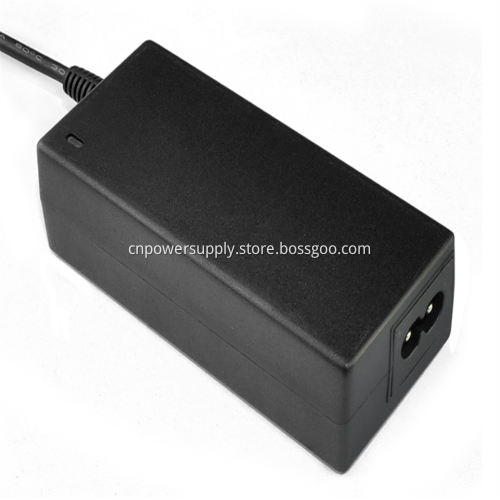

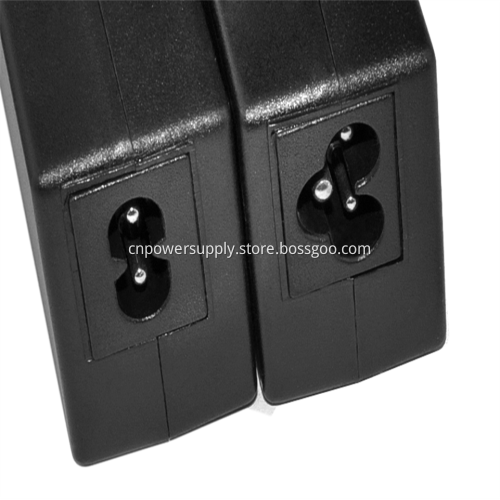

 images:

Company infomation :

Shenzhen Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer specialized in researching, producing and selling products like Switching power adapter, Car charger etc.So far our products have been exported to Europe, North America, Australia, Africa, Middle East and Southeast Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and foreign customers to visit our factory and achieve win-win situation.

Certificates:

FAQ

1, What kind of company we are?

2, How we control the quality?

3, Can we accept samples customized?

     No problem for samples order, and welcome your testing before your big order.
