12V Desktop Adapter 5A CCTV Power Supply

12V Desktop Adapter 5A CCTV Power Supply

12V 5A Power Supply Description:

It`s a AC to DC 12V 5A power supply. These are switch mode power supplies which mean the output is regulated to 12V and the capable output current is much higher (5000mA!).These will power most projects that don`t require more than 5000mA of current. Center-positive 5.5x2.5mm barrel connector. It can works perfect with our audio amplifer boards.

12V5A AC/DC universal switching power adapter

AC input 100-240Vac

Output: 9VDC 1A

100% high voltage test, 100% aging test, 100% full inspection

Built-in over current, over voltage, over load and short circuit protection

High precision, low ripple and low noise

Super-compact designed, light, handy and portable.

Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE

12V5A switching power supply specifications:

Input: 100-240Vac 50/60Hz

Output: 12V5A

Type: Desktop Type

Color: Black / white

Size: 120*52*32MM

Output loading precision: ±5%

Operating temperature: 0℃ -40℃, 5% -90% RH;

Storage temperature: -20℃ -85℃, 5% -95% RH;

Efficiency: Energy Star Level VI & ERP Stage 2 Certified

Certificate: CCC, UL, CE, FCC, CB, GS, SAA, C-tick, Rohs,

Protection: over current, over voltage, over load, short circuit protection

 12V5A AC/DC power adapter Electrical:

Dielectric Withstand: 3,000VAC Primary-Secondary

Leakage Current: 0.25mA@2Pin

EMI Conduction & Radiation: Compliance to EN55022  EN55024 FCC Part 15B Class B

Harmonic Current: Compliance to EN61000-3-2

MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332

Output characteristics: constant current / constant voltage mode;

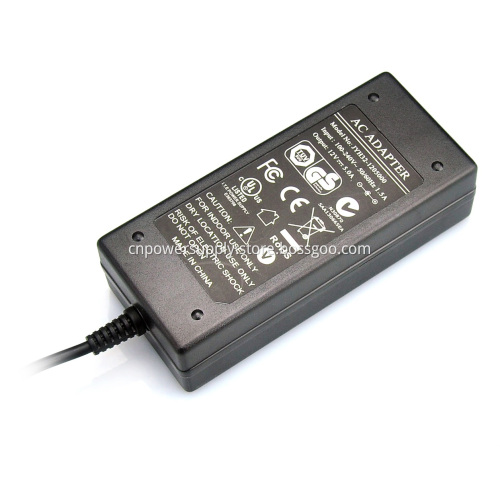

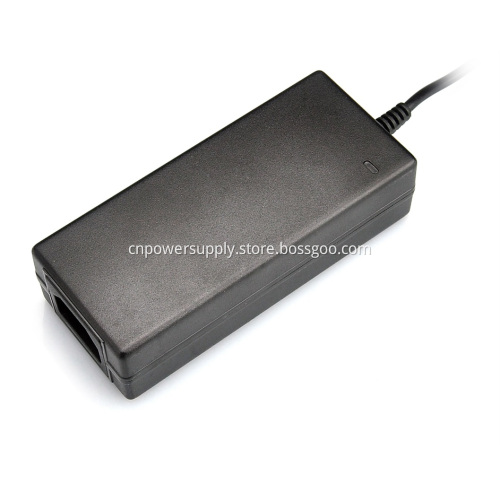

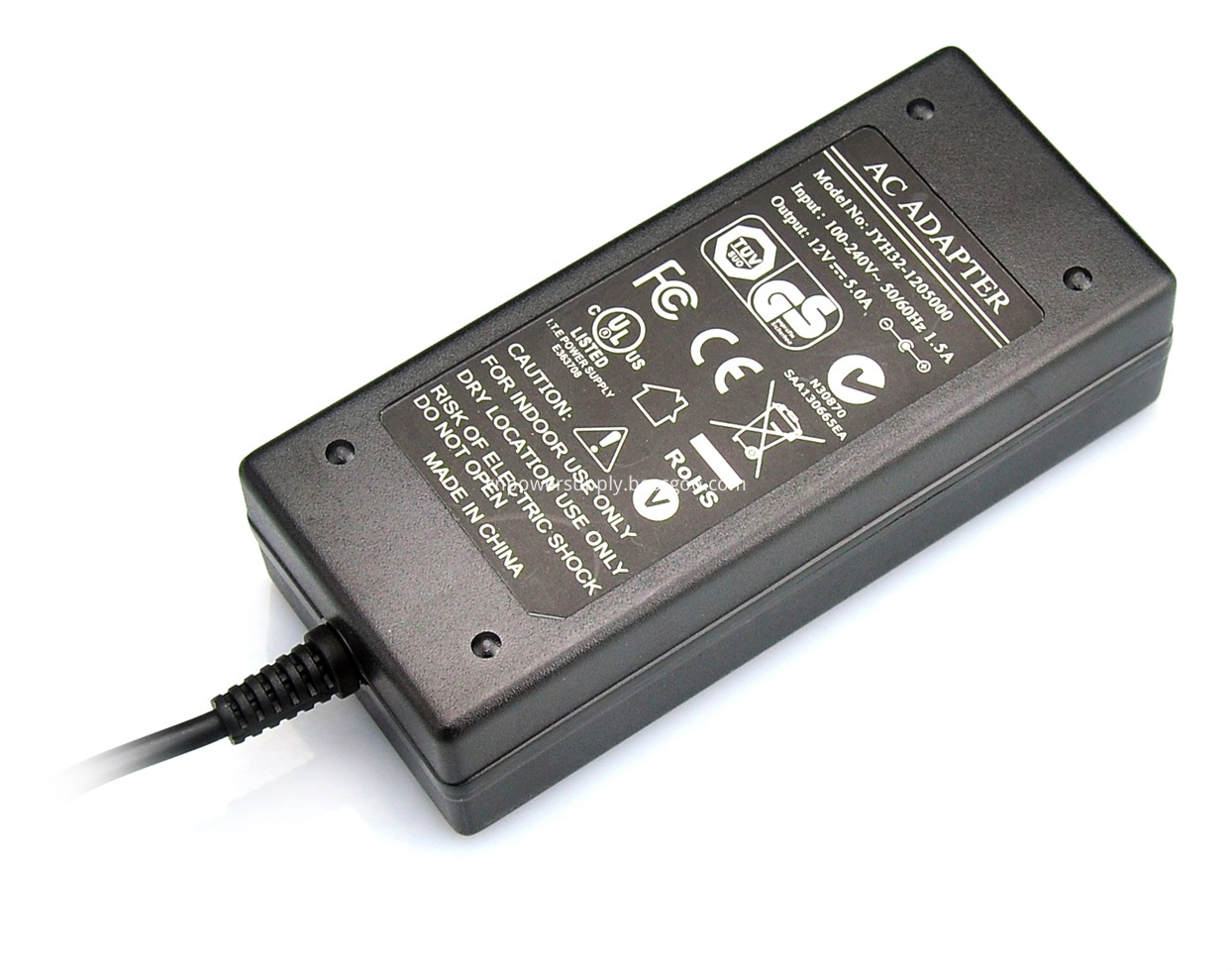

 images:

Company infomation :

Shenzhen Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer specialized in researching, producing and selling products like Switching power adapter, Car charger etc.So far our products have been exported to Europe, North America, Australia, Africa, Middle East and Southeast Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and foreign customers to visit our factory and achieve win-win situation.

Certificates:

FAQ

1, What kind of company we are?

2, How we control the quality?
