ac power adapter cannot be determined

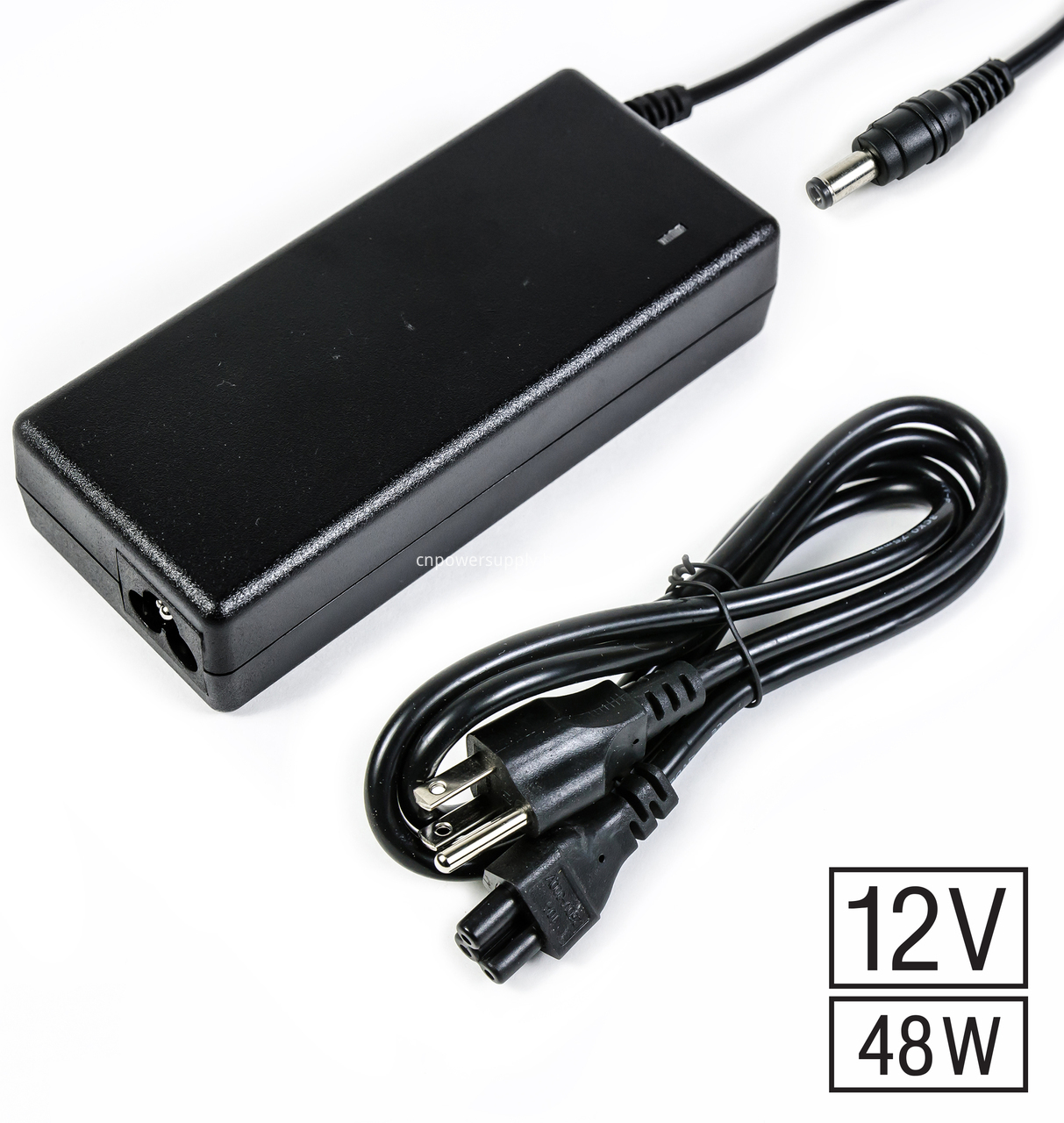

12V 4A Dc Power Supply Adapter 4000mA

12V 4A Dc Power Supply Adapter Description:

Our 12V 4A power supply is reliable switching power supply with high quality material, durable and safety in use. The power supply can keep the voltage stability. Universal AC input/full range, Full load burn-in test. Widely use for led strip lights and other device need constant voltage at the 12V such as CCTV camera, LED flexible strip, LED decorative lighting, street light, building lighting, LCD Monitors, LED display, industrial automation, home appliances and so on.

12V4A AC/DC universal switching power adapter

AC input 100-240Vac

Output: 9VDC 1A

100% high voltage test, 100% aging test, 100% full inspection

Built-in over current, over voltage, over load and short circuit protection

High precision, low ripple and low noise

Super-compact designed, light, handy and portable.

Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE

12V4A AC/DC power adapter specifications:

Input: 100-240Vac 50/60Hz

Output: 9V1A

Type: wall mount

Color: Black / white

Size: 60*39*27MM

Output loading precision: ±5%

Operating temperature: 0℃ -40℃, 5% -90% RH;

Storage temperature: -20℃ -85℃, 5% -95% RH;

Efficiency: Energy Star Level VI & ERP Stage 2 Certified

Certificate: CCC, UL, CE, FCC, CB, GS, SAA, C-tick, Rohs,

Protection: over current, over voltage, over load, short circuit protection

 12V 4000ma Power Supply Electrical:

Dielectric Withstand: 3,000VAC Primary-Secondary

Leakage Current: 0.25mA@2Pin

EMI Conduction & Radiation: Compliance to EN55022  EN55024 FCC Part 15B Class B

Harmonic Current: Compliance to EN61000-3-2

MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332

Output characteristics: constant current / constant voltage mode;

12V 4000mA AC/DC power adapter DC connector:

2.5*0.7*10mm,

3.5*1.35*10mm,

4.0*1.7*10mm,

5.5*2.1*10mm,

5.5*2.5*10mm,

 images:

Company infomation :

Shenzhen Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer specialized in researching, producing and selling products like Switching power adapter, Car charger etc.So far our products have been exported to Europe, North America, Australia, Africa, Middle East and Southeast Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and foreign customers to visit our factory and achieve win-win situation.
