IEC62368 12V 5A Desk-top Power Supply

12V5A Desk-top Power Adapter Parameter :

Input:        100-240V 50-60HZ

Output:      12V 5A 60W
DC Cable:   1.2M /1.5M/1.8M/3M/5M etc.
Connector:  5.5*2.1mm / 4.7*1.7mm etc.
Color:         Black/White/Gray
Package:     PP Bag/paper box
Efficiency:   DOE VI
Certificates: CB/UL/FCC/GS/CE/CCC/SAA/RCM/PSE/KC/KCC/ROHS/REACH

Safety standard: IEC60950/IEC62368/IEC61558/IEC60335/IEC60065

12V5A Desk-top Power Supplies Description :

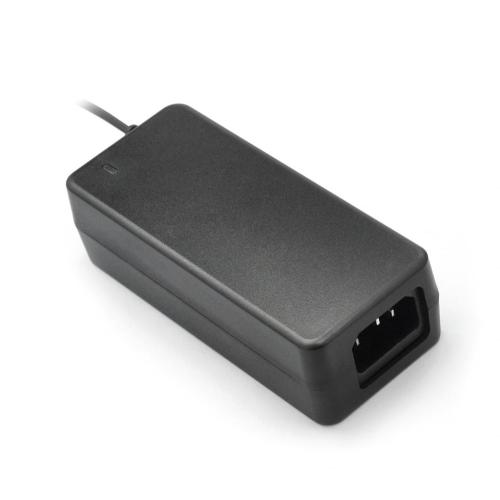

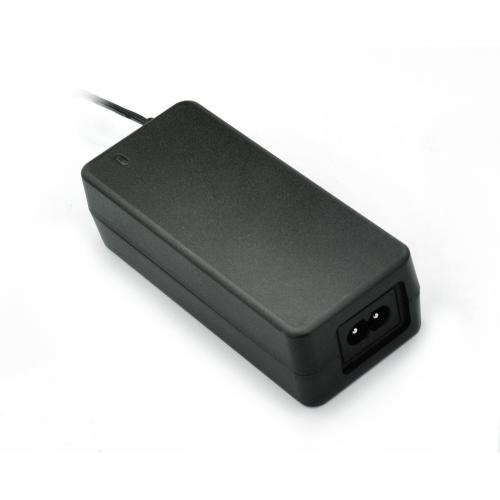

AC Socket: C6 / C8 / C14

Small shell with LED indicator light

High precision up to 90%, low ripple and noise around 20-50Mvp

100% high voltage test, 100% aging test, 100% full inspection

With over current protection, over voltage protection, over load protection and short circuit protection.

12V5A AC DC Desk Top Power Adaptor Electrical:

Dielectric Withstand: 3,000VAC Primary-Secondary

Leakage Current: 0.25mA@2Pin

EMI Conduction & Radiation: Compliance to EN55032  EN55014 FCC Part 15B Class B

Harmonic Current: Compliance to EN61000-3-2

MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332

Output characteristics: constant current / constant voltage mode;

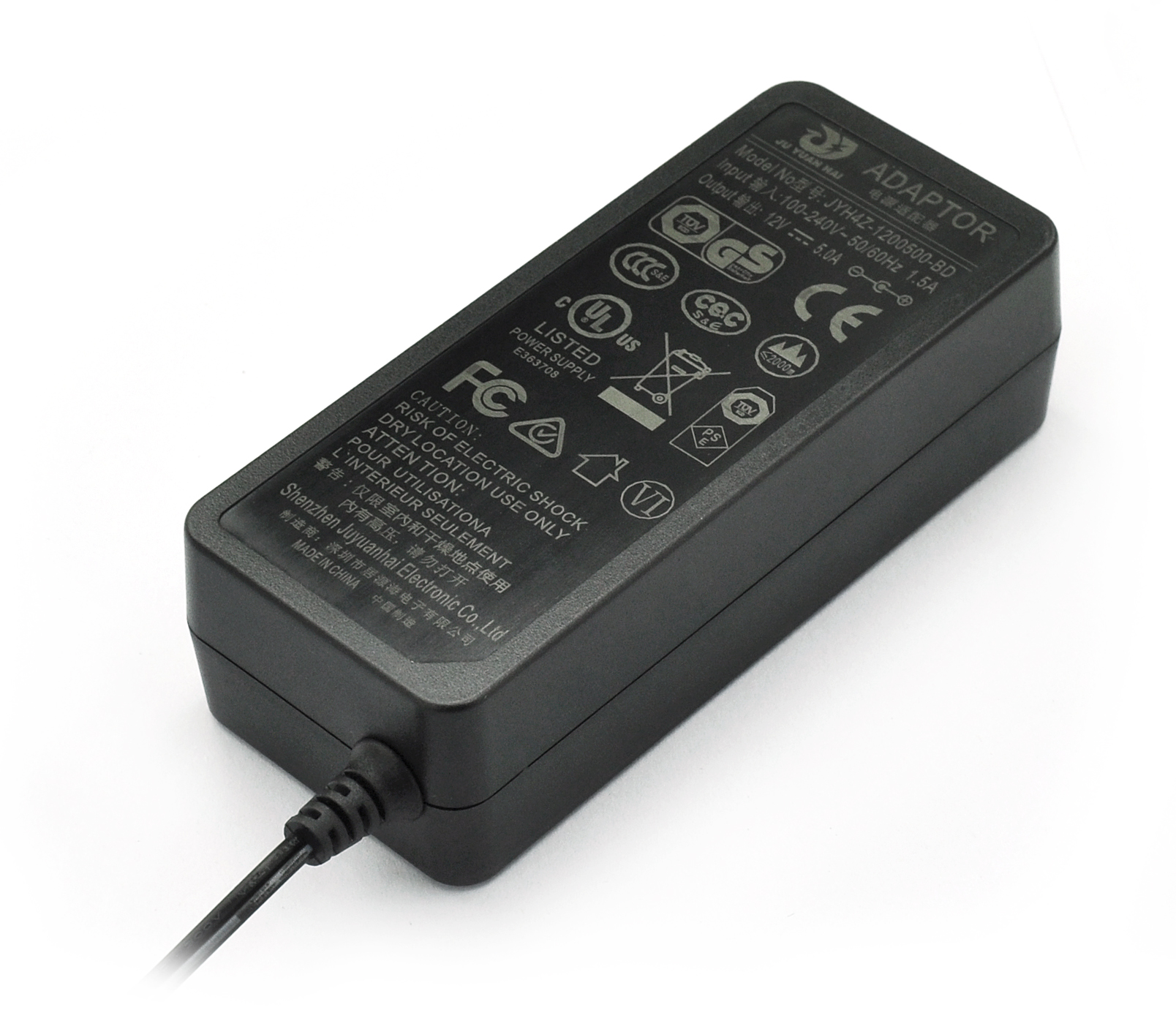

Images for 12V 5000MA Desk-top Charger:

Company Infomation :

Shenzhen Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer specialized in researching, producing and selling products like Switching power adapter, Car charger etc.So far our products have been exported to Europe, North America, Australia, Africa, Middle East and Southeast Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and foreign customers to visit our factory and achieve win-win situation.

Certifications:

Packing & Shipping

FAQ

1, What kind of company we are?

2, How we control the quality?
