Multiple Voltage Output 3v-12v

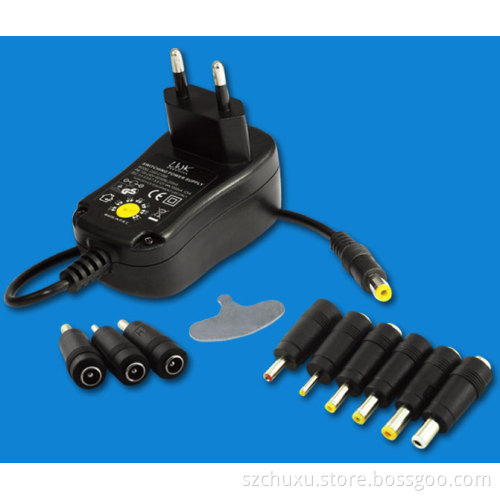

Universal AC/DC Power Adapter with Multiple Voltage Output (3v-12v) Allows you to easily replace your old wall wort transformer, and allows you the flexibility to use it with multiple devices featuring 8 interchangeable DC tips, with compatibility for 1000s of small electronic devices it can save you a lot of headaches finding the correct plug. Voltage is easy to change by the switch on the side of the adapter. Be sure you're using the correct VOLTAGE & POLARITY for your device before plugging it in.

Specifications:

Efficiency: >80% (TYP)

Input voltage: AC100V-240V

Input current: 1.0A

Output voltage: DC 3V/4.5V/5V/6V/7.5V/9V/12V

Output current: 300mA/600mA/1000mA/1500mA/2000mA

Dimension: 75(L) x 43(W) x 35(H) Unit: mm

Cable: 1.50 M

Color: Black

LED indicator

Instruction:

Before plugging adapter into mains socket, please follow the step-by-step instructions.

1. VOLTAGE: Set voltage selector switch in accordance with the voltage requirement of      your electronic unit.

2. MILLIAMP(mA): Verify the mA requirement of the unit and determine if it can be used with a 1500mA Adapter.

3. POLARITY: Determine the polarity (+ or -) of the unit. The polarity can be found on the unit or in the user manual.

4. OUTPUT PLUG: Select a proper adapter plug and plug in into the DC input jack on unit.

5. PLUG IN: Plug the adapter into 100-240V electronic unit.

6. Note: If unit does not operate properly, check the polarity setting IMMEDIATELY.

Different plugs for you choose:

Warning:

Please read the description thoroughly and check the adaptor is compatible with your device, we are not responsible for customers who buy an incompatible adaptor or use unsuitable attachment tip as this can burn out the adaptor or damage your product through misuse.

You must check carefully the technical specifications of your device when choosing the correct model of the  adaptor you require (please refer the manufactures instructions or rating label on the product).

If you're replacing an existing power adaptor choose the adaptor matched as closely as possible to the original adaptor's voltage and current specifications.
