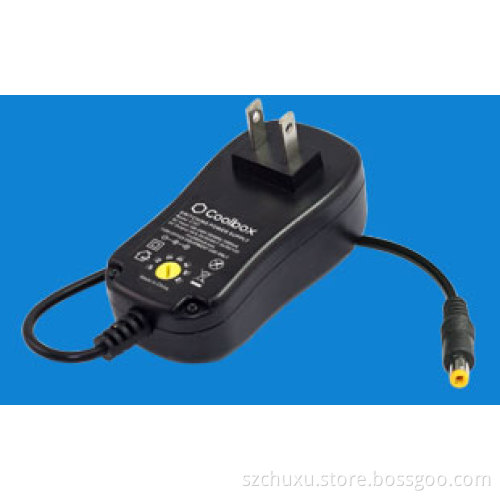

Compact Switching Power Supply

This model is 10 Watts and has 6 selectable outputs ranging from 3V to 12VDC and up to 1A output. 110VAC to 240VAC so you can use it anywhere with a simple plug adapter.

It comes with a range of tips, such as 2.5mm mono, 3.5mm mono, 5.5mm/2.5mm, 2.5mm/2.1mm, 4mm, etc. You can also change it from center positive (most common) to center negative (less common but seen in some audio gear) You could use this with just about any device or project, it's very handy!

Parameters:

Efficiency: >80% (TYP)

Input voltage: AC 100V-240V

Input current: 2.0A

Output voltage: DC 3V/4.5V/5V/6V/7.5V/9V/12V

Output current: 300mA/600mA/1000mA/1500mA/2000mA

Dimension: 75(L) x 43(W) x 35(H) Unit: mm

Cable: 1.50 M

Color: Black

LED indicator

Instruction:

Before plugging adapter into mains socket, please follow the step-by-step instructions.

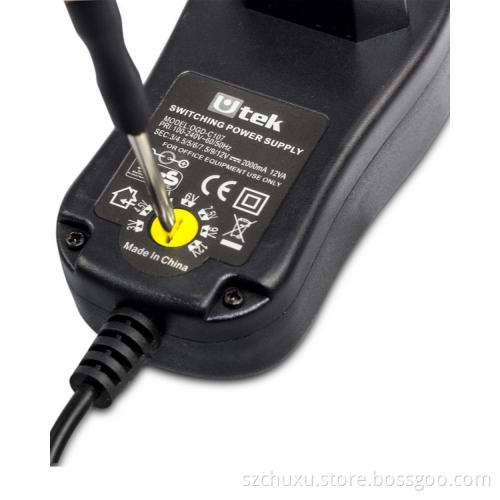

1. VOLTAGE: Set voltage selector switch in accordance with the voltage requirement of your electronic unit.

2. MILLIAMP(mA): Verify the mA requirement of the unit and determine if it can be used with a 1500mA Adapter.

3. POLARITY: Determine the polarity (+ or -) of the unit. The polarity can be found on the unit or in the user manual.

4. OUTPUT PLUG: Select a proper adapter plug and plug in into the DC input jack on unit.

5. PLUG IN: Plug the adapter into 100-240V electronic unit.

6. Note: If unit does not operate properly, check the polarity setting IMMEDIATELY.

Different plugs for you choose:

Warning:

Please read the description thoroughly and check the adaptor is compatible with your device, we are not responsible for customers who buy an incompatible adaptor or use unsuitable attachment tip as this can burn out the adaptor or damage your product through misuse.

You must check carefully the technical specifications of your device when choosing the correct model of the  adaptor you require (please refer the manufactures instructions or rating label on the product).

If you're replacing an existing power adaptor choose the adaptor matched as closely as possible to the original adaptor's voltage and current specifications.
