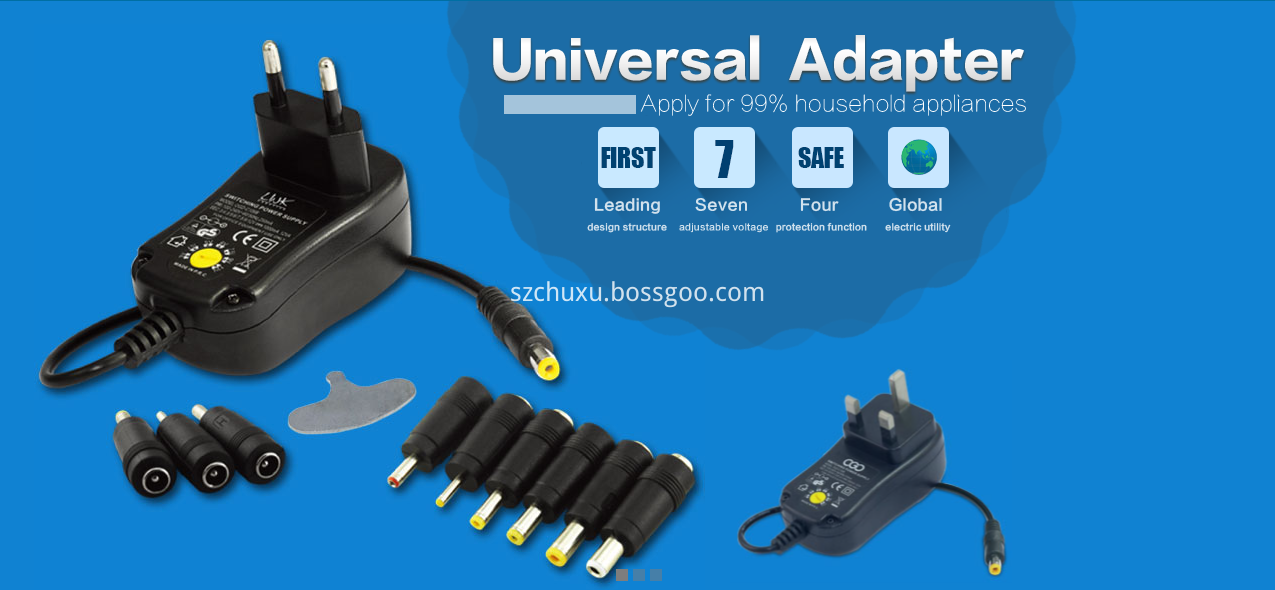

Universal Euro & UK 1A Power Supply

The unit is truly universal as it can convert power into any of the following outputs. the selectable output voltages are from 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12V DC. It also incorporates short circuit protection and automatic overload cut-off safety features. It is adaptable with various personal electronic devices. It also has two exchangeable input plugs (3 pin british UK type & European type) for worldwide use.

Non slip strip&matting shell.

Safer and stronger with fire ABS&PC plastic shell.

Built-in OVP,OCP and SCP.

Can be OEM or ODM made.

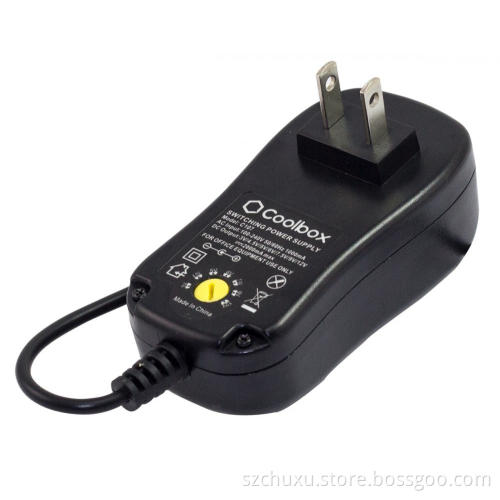

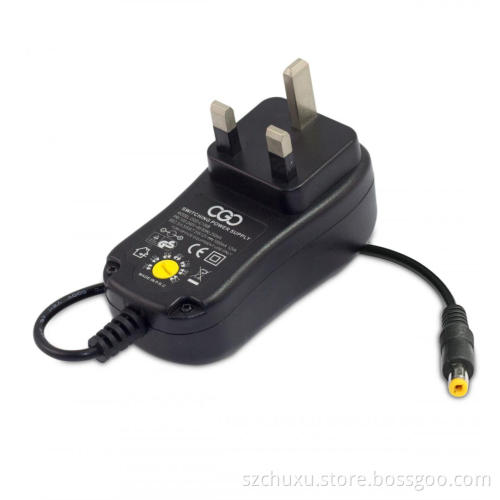

Plug  type:EU,US,AU,UK

Can be equipped with 5 to 7 types of DC tips,so that it can be used to all kinds of small household eletrical appliances.

Parameters:

Efficiency: >80% (TYP)

Input voltage: AC 100V-240V

Input current: 1.0A

Output voltage: DC 3V/4.5V/5V/6V/7.5V/9V/12V

Output current: 300mA/600mA/1000mA/1500mA/2000mA

Dimension: 75(L) x 43(W) x 35(H) Unit: mm

Cable: 1.50 M

Color: Black

LED indicator

Instruction:

Before plugging adapter into mains socket, please follow the step-by-step instructions.

1. VOLTAGE: Set voltage selector switch in accordance with the voltage requirement of your electronic unit.

2. MILLIAMP(mA): Verify the mA requirement of the unit and determine if it can be used with a 1500mA Adapter.

3. POLARITY: Determine the polarity (+ or -) of the unit. The polarity can be found on the unit or in the user manual.

4. OUTPUT PLUG: Select a proper adapter plug and plug in into the DC input jack on unit.

5. PLUG IN: Plug the adapter into 100-240V electronic unit.

6. Note: If unit does not operate properly, check the polarity setting IMMEDIATELY.

Different plugs for you choose:

Warning:

Please read the description thoroughly and check the adaptor is compatible with your device, we are not responsible for customers who buy an incompatible adaptor or use unsuitable attachment tip as this can burn out the adaptor or damage your product through misuse.

You must check carefully the technical specifications of your device when choosing the correct model of the  adaptor you require (please refer the manufactures instructions or rating label on the product).

If you're replacing an existing power adaptor choose the adaptor matched as closely as possible to the original adaptor's voltage and current specifications.
