Masterplug 2 Outdoor Sockets

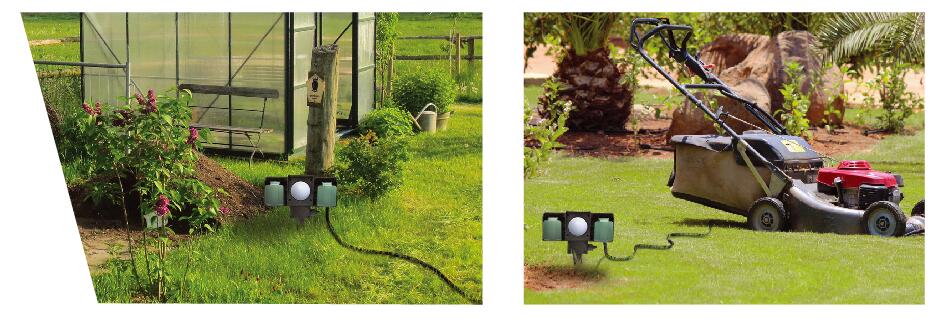

This Masterplug 2 Outdoor Socket is a convenient and safe temporary outdoor power point for equipment such as DIY or Garden Tools. The garden power Socket with spike provide convenient and safe power points for use in your garden regardless of weather conditions. Complete with 2 metres of power cable. Better than common power extension leads - this high spec unit is IP54 weatherproof rated so if it rains you can continue providing safe power for your garden.

Features

·Wide voltage input range: 100-264V

·Working frequency: 50/60HZ

·Water proof level: IP54

Application

·Outside Fountain

·Outside landscape lamp

·Outside Garden light

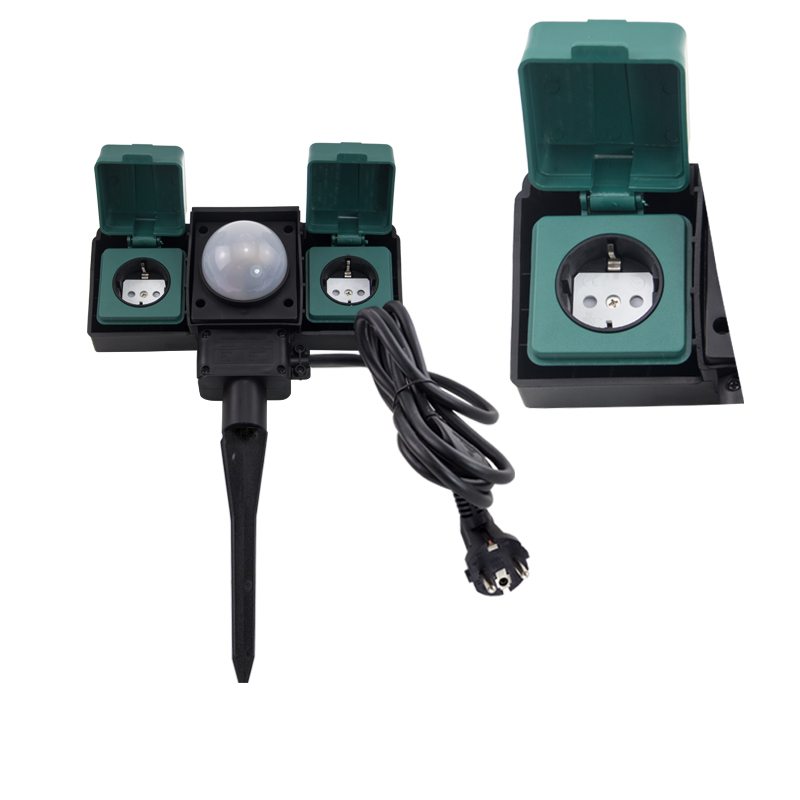

Two Way Outdoor Garden Socket

Parameters

AC Working frequency: 50/60HZ

AC Rated output current: 10A(2PCS sockets total 10A)

AC Max output current: 16A(2PCS sockets total 16A)

Waterproof level: IP54

AC wire diameter: 1.5mm²

Working temperature: -35℃~+65℃

Installation

·  Carefully unpack contents and check to make sure all parts are present. Following this insert the plastic stake plug into the bottom hole of the sockets.

·  Choose a suitable location for the AC socket giving careful consideration to the nearest suitable outlet, trip hazard etc. Push the socket firmly into the ground and plug in the socket.

·  Lastly, insert the appliance into the 2 sockets.

·  There are two different power options, with the switch on the backside.

  On: The power will always be on.

  Sensor: The power will only be on from dusk till dawn.

Attention

·  This product has a waterproof level of IP54, this means it can with stand splashes of water, but not large bodies of water.

·  This product contains 2 built-in sockets. If you are only using one socket the rated current can reach 10A, with a max. current of 13A, but reaching 13A for extended periods of time can damage the socket and internal components, therefore must be avoided.

·  If you use 2 sockets at a time the max. current should not exceed 16A.
