Outdoor Advertising LED display
-
USD800≥1 Square Meter
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | high |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Introduction:

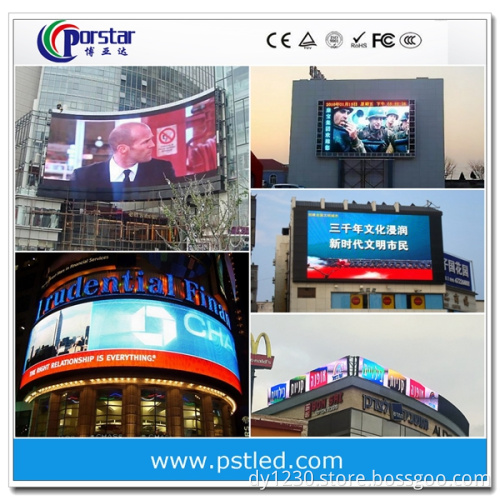

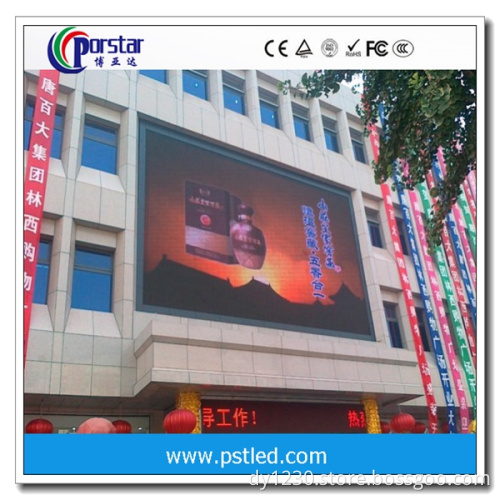

PH10mm outdoor full color advertising LED display screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The PH10mm outdoor full color advertising LED display screen is manufactured in a waterproof and dustproof design so it can work very well under rain and sunshine. It can be assembled, disassembled and reparied very easy, it is an ideal product for any kind advertisements. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, stage performances and so on.
Features & Technical Specification:
1. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, stage performances and so on.
2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen system.
3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Very high quality and Clear vivid image quality: even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. High Brightness of LED Display: 7500-nit brightness(for outdoor full color)(more than 2000 nits brightness for indoor full color) capacity throughout product lifetime of the LED display.
6. Easy Installation & Using : easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear led display cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Technical Specification(P10mm Outdoor LED Display):
|
Pixel configuration |
DIP346 1R1G1B |
|
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd |
|
|
Pixel pitch(mm) |
10 |
|
|
Pixel density(dots/��? |
10000 |
|
|
Calibrated brightness(cd/sqm,nit) |
9000 nits(adjustable) |
|
|
Calibrated brightness proportion ratio |
R: G: B = 30%:60%:10% |
|
|
Color temperature |
3,500° ��?9,500° K(adjustable) |
|
|
Contrast ratio |
4,500:1 |
|
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
|
View angle(degree)(50% brightness) |
Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center) |
|
|
Readability viewing angle |
Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center) |
|
|
Color capability |
4.4 trillion |
|
|
Refresh rate(Hz) |
>2000 Hz |
|
|
Frame frequency(Hz) |
>60 Hz |
|
|
Interface port |
DVI interface(DVI connector) |
|
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
|
Protection grade |
IP65 front side/IP54 backside |
|
|
LED Drive |
Constant-current drive |
|
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
|
Signal transmission direction |
Horizontal |
|
|
Operating temperature(Celsius degree) |
-30-65' |
|
|
Storage temperature(Celsius degree) |
-35-70' |
|
|
Operation humidity(RH) |
0-95% |
|
|
Operation humidity(RH) |
0-99% |
|
|
Servicing |
Front and back serving optional |
|
|
Control mode |
Synchronous & asynchronous available |
|
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
|
Power |
120/240 V AC single phase(50-60Hz) |
|
|
Maximum power consumption(W/SQM) |
750 |
|
|
Average power consumption(W/SQM) |
300 |
|
|
Screen operation mode(scan/static) |
1/4 |
|
|
Module configuration(Pixels quantities of the module) |
Length |
16 |
|
Height |
16 |
|
|
Module dimensions(mm) |
Length |
160 |
|
Height |
160 |
|
|
Cabinet configuration |
Length |
8 |
|
Height |
6 |
|
|
Cabinet dimensions(mm) |
Length |
1280 |
|
Height |
960 |
|
|
Width |
170 |
|
|
Screen configuration |
Length |
3 |
|
Height |
3 |
|
|
Screen dimensions(m) |
Length |
3.8400 |
|
Height |
2.8800 |
|
|
Screen Size |
SQM |
11.0592 |
|
Recommend Optimal Viewing Distance: Minimum & Maximum |
Min |
6 |
|
Max |
136 |
|
|
Resolution ratio(dots/pixels) |
Length |
384 |
|
Height |
288 |
|
|
Aspect Ratio(L:H) |
1.33333 |
|
|
Packaging configuration |
2 standard cabinets in a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM) |
|
|
Packing material |
Wooden case/carton/flight case(optional) |
|
|
Packing quantities |
5 |
|
|
Packing volume(CBM) |
4 |
|
|
Packing Dimensions(mm) |
Length |
1385 |
|
Height |
1165 |
|
|
Width |
520 |
|
|
Packing weight(KG) |
net |
829 |
|
gross |
1120 |
|
