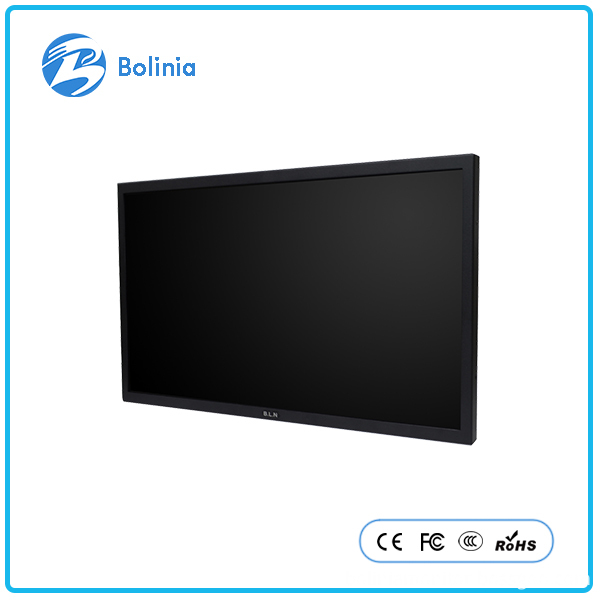

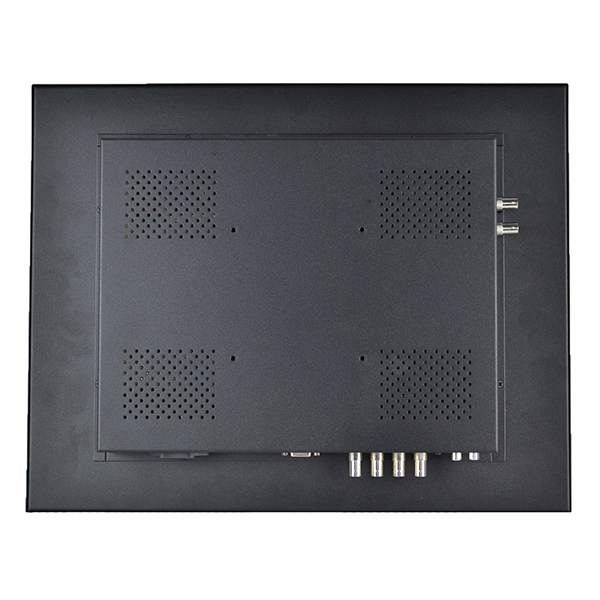

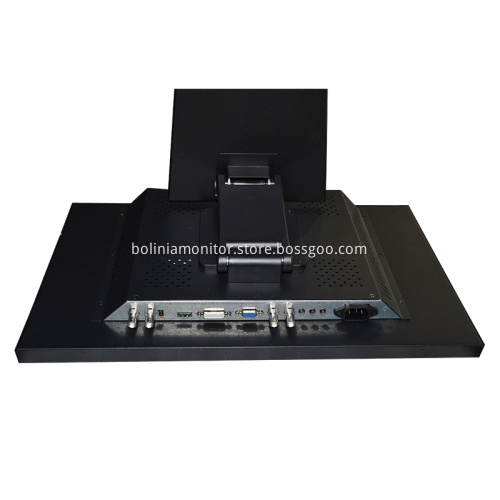

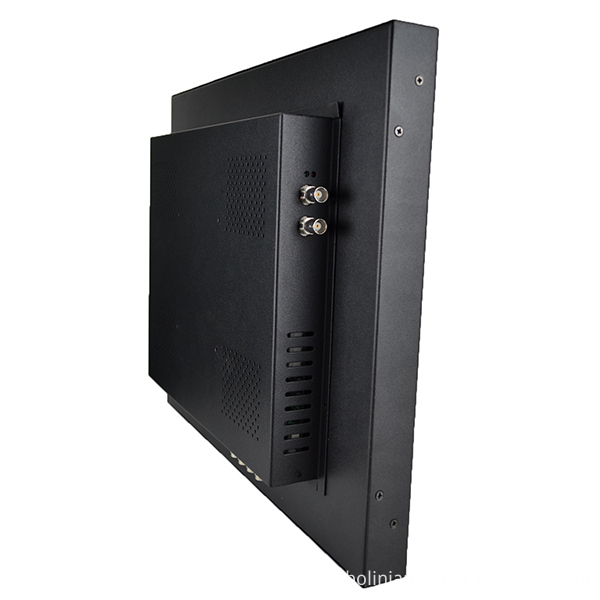

17 Inch HD-SDI Monitor

17 inch CCTV Monitoring HD-SDI Monitor with resolution 1280*1024 pixels. High quality video and audio transfer with ulter most level for broadcasting use. SDI Monitors are mainly used in  broadcasting Systems. Metal casing with 3D digital comb filter with 3D digital noise reduction. Automatically HD-SDI signals. There are 12 inch, 15 inch, 17 inch, 19 inch sizes are available.

• Display: 17" TFT High Definition Digital Metal monitor (4:3)
• Languages: English, Russian, French, Spanish, German, Italian and Chinese
• Resolution: 1280*1024pixels
• Brightness: : 400 cd/squa
• Contrast ratio: 250:1
• Viewing angles: 170°/110°
• Screen distance: 0.264*0.264mm
• Viewing angles: 85°/ 85°/ 80°/ 80°
• Input voltages: 110 to 240V AC
• Output voltage: 12V DC
• Average life: 50,000 hrs
• Operating temperature: 0 to 50°C/20%-80%(non-condensing)
• Humidity temperature: 0-85% at 40°C (non-condensing)
• Storage temperature: -10 to 60°C/5-95%(non-condensing)
• Horizontal frequency: 30~61KHZ
• Field frequency: 60~75KHZ
• Color:262,144colors
• TV System: PAL/NTSC4.43/NTSC3.58/SECAM
• Audio formats:BG/DK/I/ and M/N
• Video input: 1.0Vp-p@75ohm
• Audio input: 500mVrms
• Power consumption: (max) 30W
• Stand-by power consumption:  <1.0W
• Storage humidity: 5%~95%
• Loudspeaker output: Max.2.0W Output(16Ω)
• Earphone output:  Max.10mW Output(3.5φStereo Jack,32Ω)
• Response time: ≤8ms

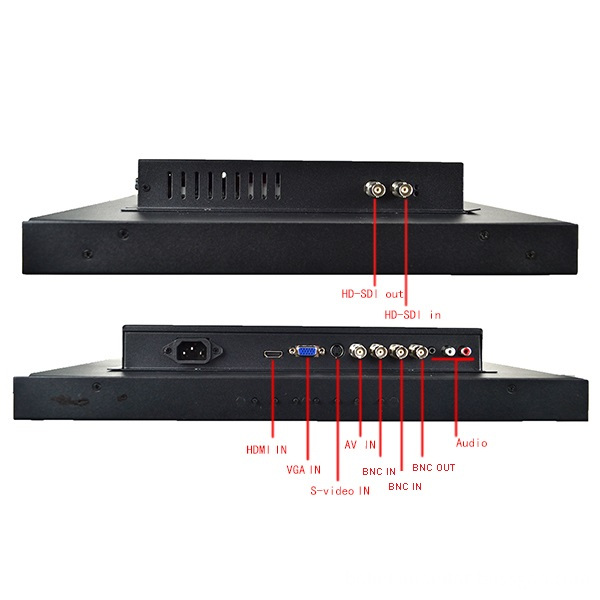

VGA*1

DVI*1

HD-SDI *2

HDMI*1



• 3D digital comb filter with 3D digital noise reduction
• HD Signal with Progressive scan ;
• Solid metal frame, Anti-static, Anti-magnetic field and Anti strong interference.
• VESA standard wall mount(Metal folded holder optional)
• VGA,AV,BNC1,BNC2 input;
• BNC output;
• Accessories: Manual, BNC cable, VGA cable, remote controller, 12VDC power adapter and VESA wall mount (Standard)
• Certification: FCC, CE, RoHS Directive-compliant, CCC
• Mainly used in security monitoring, industry video monitoring or similar fields.

Certification: CCC, FCC, CE, RoHS Directive-compliant

Shenzhen Bolinia Technology Co., Ltd. is a manufacturer for 7-24 inch lcd monitors and displays over 10 years. Original factory with assembling line in Shenzhen. Product ranges from plastic monitor, metal monitor, resistive touch monitor, capacitive touch monitor, open frame monitor, embedded monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions.
Normal plastic or metal monitor from 7 inch to 24 inch.
Single touch monitor with resistive 4 wire and 5 wire for options from 7 inch to 22 inch.
Multi-touch projected capacitive touch (PCAP Touch or PCT) monitor from 8 inch to 24 inch.
SDI monitor from 15 inch to 21.5 inch.

Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk, BGA repairing station, Lottery terminals, microscopes and similar applications.

Shenzhen Bolinia Technolgoy Co., Ltd. is a manufacturer for 7-32 inch lcd monitors and displays over 10 years. Original factory with assembling line in Shenzhen. Product ranges from plastic monitor, metal monitor, resistive touch monitor, capacitive touch monitor, open frame monitor, embedded monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions.

Single touch monitor with resistive 4 wire and 5 wire for options from 7 inch to 22 inch.
Multi-touch projected capacitive touch (PCAP Touch or PCT) monitor from 8 inch to 24 inch.
SDI monitor from 15 inch to 21.5 inch.

Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk, BGA repairing station, Lottery terminals, microscopes and similar applications.
