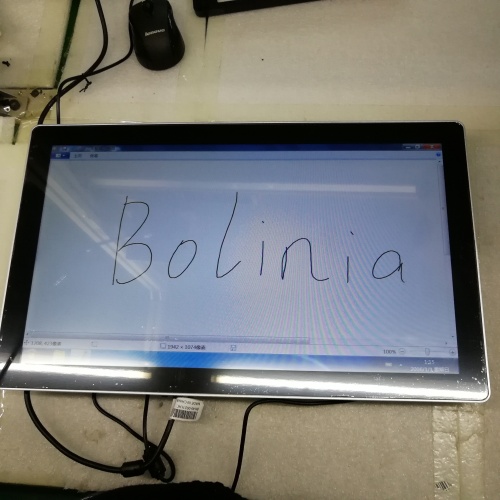

18.5" capacitive touch panel monitor

18.5 Inch Projective acapcitive touch panel monitor with multi touch. Industrial EETI touch or consumer ILITEK touch control. Rugged metal case with aluminum bezel. Extenstion USB cable for connecting host to support touch function and power supply for touch panel. Max support 10 touch points at a time. Interfaces is optional for VGA+TOUCH or VGA+AV+BNC+HDMI+USB+TOUCH. 1366*768 p resolution makes it supports HDMI output.

• Display: 18.5" TFT High Definition capacitive touch monitor (4:3)
• Resolution: 1366*768 pixels
• Brightness: 250 nits
• Contrast ratio: 1000:1
• Input voltages: 110 to 240V AC
• Output voltage: 12V DC
• Response time: 16ms
• Viewing angle: 160°/170°
• Shell material: Aluminium frame with metal case
• Screen: tempered glass
•  Interfaces is optional for VGA+TOUCH or VGA+AV+BNC+HDMI+USB+TOUCH


• Touch panel: G+G
• Surface hardness: 7H
• Transparency: >90%±5%
• Operating temperature: 0 to 50°C/20%-80%(non-condensing)
• Humidity temperature: 0-85% at 40°C (non-condensing)
• Storage temperature: -20 to 60°C/5-95%(non-condensing)
• Storage humidity: 5%~95%
• Connection Type: USB
• Response time: <20ms
• Operation voltage: 3.3V-3.6V DC
• Max supported points : 10
• System supported: Windows XP/7/8/10, Android or Linux

Company Show

Shenzhen Bolinia Technolgoy Co., Ltd. is a manufacturer for 7-32 inch lcd monitors and displays. Own factory with assembling line in Shenzhen. Product ranges from plastic monitor, metal monitor, resistive touch monitor, capacitive touch monitor, open frame monitor, embedded monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions.

Single touch monitor with resistive 4 wire and 5 wire for options from 7 inch to 22 inch.
Multi-touch projected capacitive touch (PCAP Touch or PCT) monitor from 8 inch to 24 inch.
SDI monitor from 15 inch to 21.5 inch.

Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk, BGA repairing station, microscopes and similar applications.

Our service

Sample service: 1~10 samples could be sent out within 2 days after the full payment;

Customized service: for the custom made LCD monitor, our design team could finish it at most one month with a very quick effective and flexible way;

After sale service: 24 hours on line service through the website is available; if you meet with the technical problems, our technicians will reply to you within 24 hours.

 FAQ

Q: Why choosing Bolinia?

A: 1. LCD monitor factory since 2004 with rich experience

     2. Industrial grade panel with durable PCB board

     3. Factory price

     4. Quality guaranty by QC team

     5. OEM/ODM supported

Q: How about the lead time?

A: That's depends on your order quantity and our production schedule. Normally, 2-5 working days for 19 inch cheap touch screen monitor order and 15-20 working days for bulk order after confirming of payment

Q: What payment term do you support?

A: T/T in advance, PAYPAL, Western Union and L/C(Only when amount is above 100,000USD)

Q: What's your warranty?

A: All of our products share 12 months warranty. On-line service and additional accessories supported.
