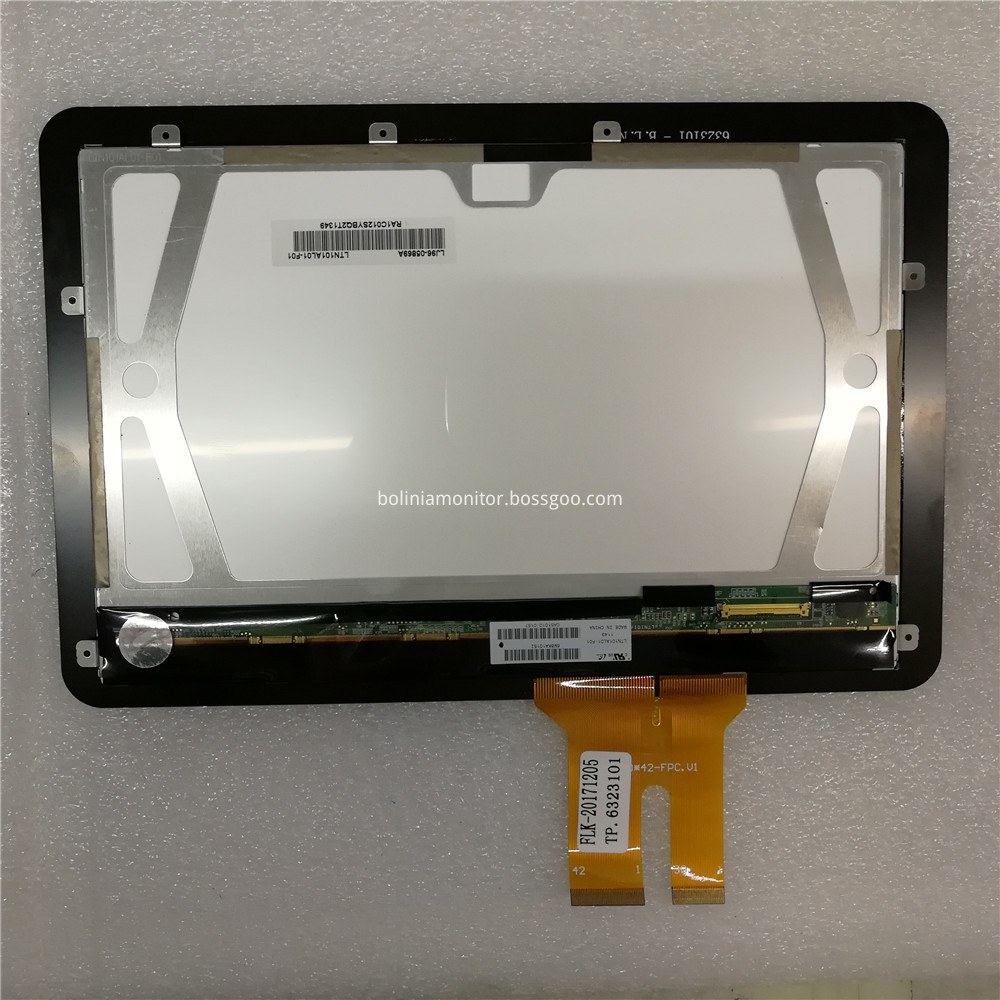

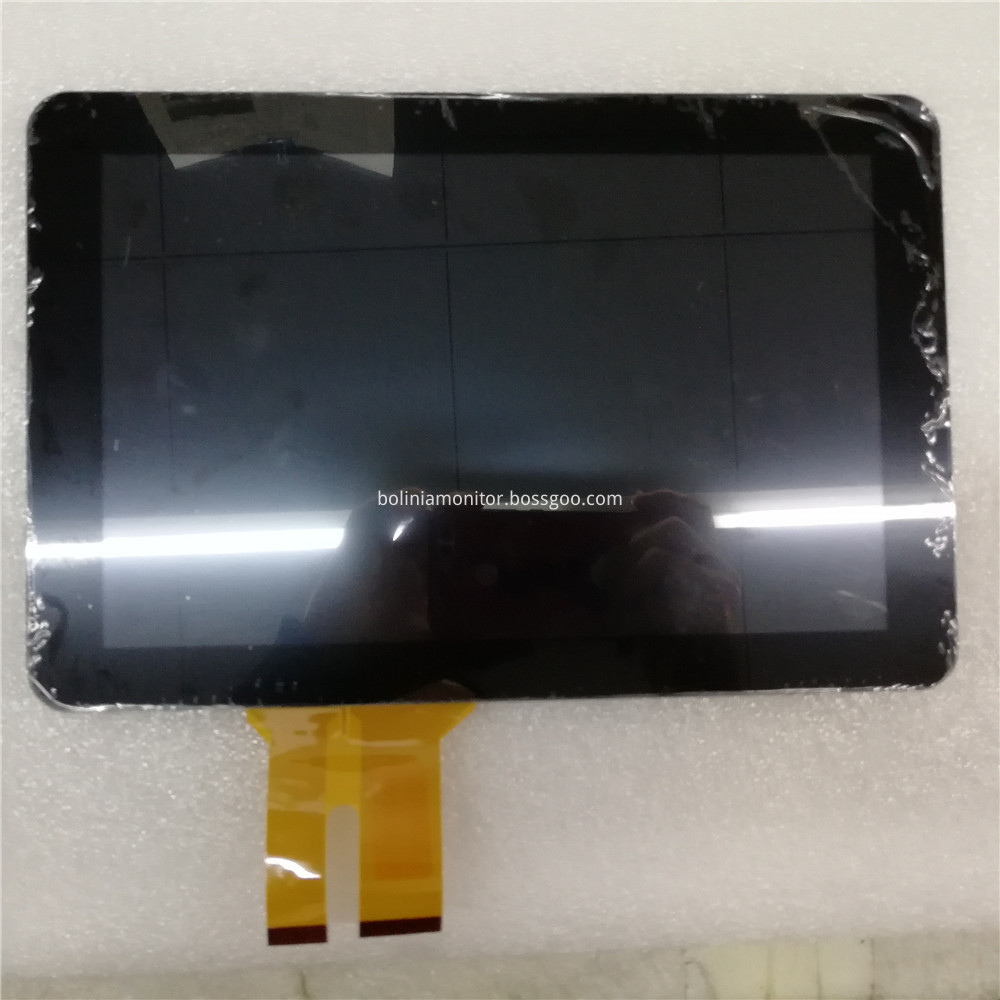

10.1 inch PCAP touch module

10.1 inch IPS panel touch module with resolution 1280*800; aspect ratio 16:10 widescreen aspect ratio with widescreen design. Full viewing angle 178/178. Industrial touch control with brand IC EETI touch. Consumer touch ILITEK is optional for choice. Glass with glass structure with flat screen. IPS panel with high quality picture resolution. PCAP touch monitor with size 8-24 inch. Stand-alone monitor, high brightness monitor,portable monitor, CCTV monitor, Plastic monitor, SDI monitor and Android touch PCs are optional for choice.

• Display: 10.1" TFT High Definition capacitive touch module (16:10)
• Resolution: 1280*800 pixels
• Brightness: : 300 cd/squa
• Contrast ratio: 800:1
• Working voltage: 12V DC
• Response time: 6ms
• Viewing angle: 178°/178°
• Touch material:  tempered glass

• Touch panel: G+G
• Surface hardness: 7H
• Transparency: >90%±5%
• Operating temperature: 0 to 50°C/20%-80%(non-condensing)
• Humidity temperature: 0-85% at 40°C (non-condensing)
• Storage temperature: -20 to 60°C/5-95%(non-condensing)
• Storage humidity: 5%~95%
• Connection Type: USB
• Response time: <10ms
• Operation voltage: 3.3V-3.6V DC
• Max supported points : 10
• System supported: Windows XP/7/8/10, Android and Linux

Shenzhen Bolinia Technology Co., Ltd. is a manufacturer for 7-24 inch lcd monitors and displays over 10 years. Original factory with assembling line in Shenzhen. Product ranges from plastic monitor, metal monitor, resistive touch monitor, capacitive touch monitor, open frame monitor, embedded monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions.

Normal plastic or metal monitor from 7 inch to 24 inch.
Single touch monitor with resistive 4 wire and 5 wire for options from 7 inch to 22 inch.
Multi-touch projected capacitive touch (PCAP Touch or PCT) monitor from 8 inch to 24 inch.
SDI monitor from 15 inch to 21.5 inch.

Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk, BGA repairing station, Lottery terminals, microscopes and similar applications.
