12V Pixel LED Strip Pixel to Pixel Programmable
  • 12V Pixel LED Strip Pixel to Pixel Programmable
  • 12V Pixel LED Strip Pixel to Pixel Programmable
12V Pixel LED Strip Pixel to Pixel Programmable
12V Pixel LED Strip Pixel to Pixel Programmable

12V Pixel LED Strip Pixel to Pixel Programmable

Payment Type:
T/T, Paypal, Money Gram, Western Union
Incoterm:
FOB, CIF
Min. Order:
5 Meter
Min. Order:
5 Meter
Delivery Time:
10 Days
Transportation:
Ocean, Land, Air, Express
Port:
Hongkong, Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 10000m/month
Supply Ability: 500mtr/day
Payment Type: T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Certificate: CE
HS Code: 9405409000
Transportation: Ocean,Land,Air,Express
Port: Hongkong,Shenzhen,Guangzhou
Product Description
Product Description

12V Pixel LED Strip Pixel to Pixel Programmable


Product Description

1, The 12V Pixel LED Strip Pixel to Pixel Programmable which built by dynamic led strip, can do with 30 pixels per meter, 60 pixel per meter led strip, 144 pixel per meter or other customized pitch with WS2818 LED Strip 12V Input Dual Signal RGB LED Light is 5meters as one roll. And you can cut the corresponding length according to your project.

2, Each piece of WS2818I LED strip Light have 60pcs led lamp, 60pixels . It's the individual pixel control and programmable for color change with iseeled led controller.

3, The IC of SPI LED Strip Light is the popular WS2811 or WS2813, the IC is external or  inside of SMD 5050 lamp, signal transfer with back up which is single signal or dual signal you can choose.

4, The advantage of  WS2813/WS2818 SPI LED Strip Light is the separate signal to avoid the broken signal when the led is damage. Well the advantage of WS2811 is the technology is mature and it is cheaper than new technology.

5, It's easy to get the power with the DC12V working voltage of RGB LED strip Light

6, ISEELED offer the IP20,  IP65 and IP67 version for the led lighting project


Application

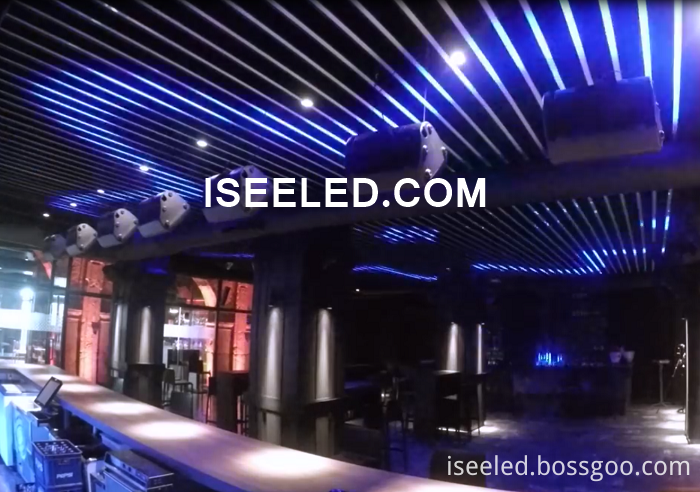

Stair Decoration LED Display Dynamic Strip is  is good for stair decoration as stair display.



Model NO.

LED-FS5000WS28183030

LED-FS5000WS28186060

LED-FS5000WS2818144144

LED-FS5000WS28183232

LED type

 SMD RGB 5050

 SMD RGB 5050

 SMD RGB 5050

 SMD RGB 5050

 LED QTY

30 Leds/meter

60 Leds/meter

144 Leds/meter

32 Leds/meter

Color

■ RGB full color

■ RGB full color

■ RGB full color

■ RGB full color

Operating Voltage

DC 12V

DC 12V

DC 12V

DC 12V

Power

MAX=5.4W/M

MAX=10.8W/M

MAX=25.92W/M

MAX=5.76W/M

Dimension

L5000mm x W10mm

L5000mm x W12mm

L5000mm x W12mm

L5000mm x W12mm

Working Current

0.45A / M

0.96A/ M

2.16A/ M

0.48A/ M

PCB Color

White/Black

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Protection

IP20/IP65/IP67/IP68

Model NO.

LED-FS5000WS28123030

LED-FS5000WS28126060

LED-FS5000WS2812144144

LED-FS5000WS28123232

LED type

 SMD RGB 5050

 SMD RGB 5050

 SMD RGB 5050

 SMD RGB 5050

 LED QTY

30 Leds/meter

60 Leds/meter

144 Leds/meter

32 Leds/meter

Color

■ RGB full color

■ RGB full color

■ RGB full color

■ RGB full color

Operating Voltage

DC 5V

DC 5V

DC 5V

DC 5V

Power

MAX=9W/M

MAX=18W/M

MAX=43.2W/M

MAX=9.6W/M

Dimension

L5000mm x W10mm

L5000mm x W12mm

L5000mm x W12mm

L5000mm x W12mm

Working Current

1.8A / M

3.6A/ M

8.64A/ M

1.92A/ M

PCB Color

White/Black

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Protection

IP20/IP65/IP67/IP68

Model NO.

LED-FS5000WS281126020

LED-FS5000WS28114816

LED-FS5000WS28113010

LED type

 SMD RGB 5050

 SMD RGB 5050

 SMD RGB 5050

 LED QTY

60 Leds/meter

48 Leds/meter

30 Leds/meter

Color

■ RGB full color

■ RGB full color

■ RGB full color

Operating Voltage

DC 12V

DC 12V

DC 12V

Power

MAX=9W/M

MAX=18W/M

MAX=7.2W/M

Working Current

1.2A/M

0.96A/M

0.6A/M

Dimension

L5000mm x W10mm

PCB Color

White/Black

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Protection

IP20/IP65/IP67/IP68

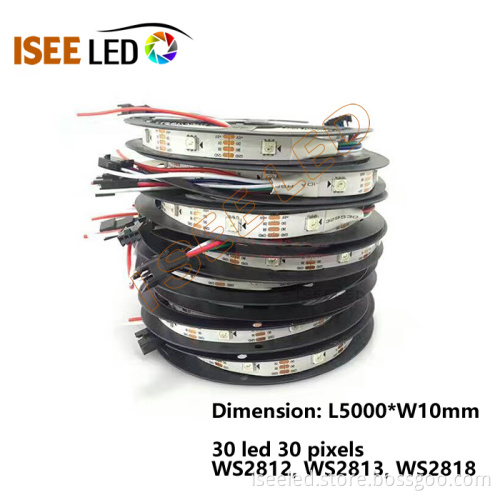

Photo of The Stair Decoration LED Display Dynamic Strip

SPI Flexible Strip RGB

WS2811 SPI Flexible Strip RGB

SPI Flexible Strip RGB

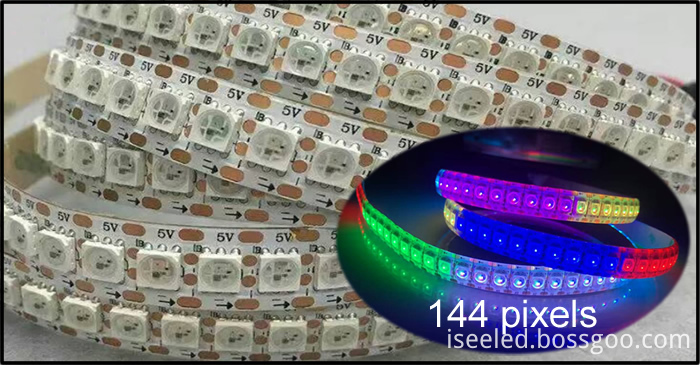

144 led 144 pixels Digital led strippackage of the 2811 led strip

Rgb Flexible Strip Dmx512

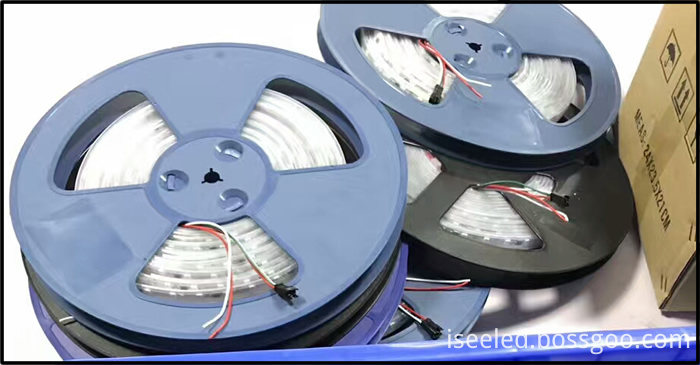

Packaging & Shipping of Stair Decoration LED Display Dynamic Strip

SPI Flexible Strip RGB

SPI Flexible Strip RGB
