LED Madrix 3D Effect Hanging Tube
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air, Express, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen of China |
|---|---|
| Productivity: | 50000 Pieces per Month |
| Supply Ability: | 50000 Piece per Month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | EXW |
| Certificate: | CE, ROHS |
| HS Code: | 9405409000 |
| Transportation: | Air,Express,Express |
| Port: | Shenzhen |
LED Madrix 3D Effect Hanging Tube
This 3d effect led hanging tube.We have 15cm diameter, 20cm diameter, 30cm diameter led 3d tube, DMX control or 2811 control both ok.
3D LED Tube
1. Dimension: 0.5m, 1m, 1.5m, 2m length
2. 8W, 15W, 22W, 30W for different length, DC 15V input
3. Clear PC cover giving 360° viewing
4. IP65 waterproof with good design of the housing
5. SPI IC control, 3D pixel mapping to set on the software programming
6. Protections: short circuit, over current , over temperature
7. With working life-span at least 50,000hrs
8. Easy control with Iseeled DMX SD card control or Online Lightning 12/30 and DMX DVI LED control
Application: 3D Vision figure, Interior design for clubs, museums,themed environments, Stage video elements for intimate or large concert productions, Television awards and game shows, Video Art projects
Specification :
Model NO.
LED-3DT20DMX3208
LED-3DT20DMX6416
LED-3DT20DMX9624
LED-3DT20DMX12832
Diameter
20mm
20mm
20mm
20mm
Length
500mm
1000mm
1500mm
2000mm
Color
■■■ SMD RGB 5050
LED QTY
32LEDs
64LEDs
96LEDs
128LEDs
Pixel QTY
8 pixels
16 pixels
24 pixels
32 pixels
Control Protocol
SPI
Operating Voltage
DC15V
DC15V
DC15V
DC15V
Max Power
MAX=8W
MAX=15W
MAX=24W
MAX=30W
LED Source Life
50,000hours,based on LED manufacturers` test data
Housing
Clear cover
Temperature
-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range
0 to 95% non-condensing
Protection
IP65
Net Weight
0.122kg/pcs
0.244kg/pcs
0.345kg/pcs
0.467kg/pcsg

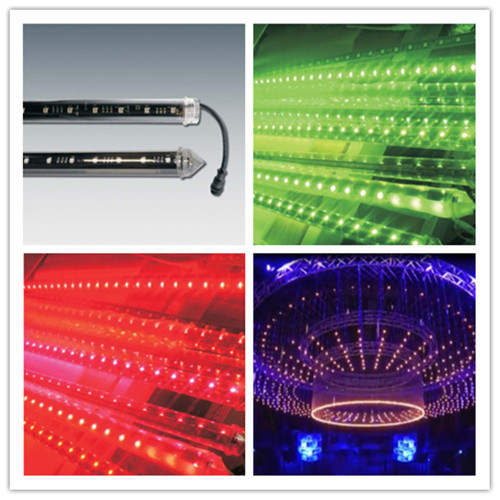

Photo Show of WS2811 LED RGB 3D Tube stage light :
Recommended Controller:
Packing and shipping :
About ISEELED :
1, Professional DMX led light and SPI led light solution provider.
2, Factory with R&D dept.
3, Rich experience on international business.
ISEELED service:
Pre-Sales Service :
24 hours of service, and provide customized solution and proposal according to customer`s different requirements, products categories, successful projects examples etc. And factory visiting, simulated effect drawing etc.
In-Sales Service :
Provide details about production schedule and procedure and free spare parts: necessary spare parts are provided together with products to customers.
After-Sales Service :
Free technical training and quality warranty. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software etc.And complaint respond period not exceed 24 hours; maintenance guidance and problem solution provided in 48 hours.
