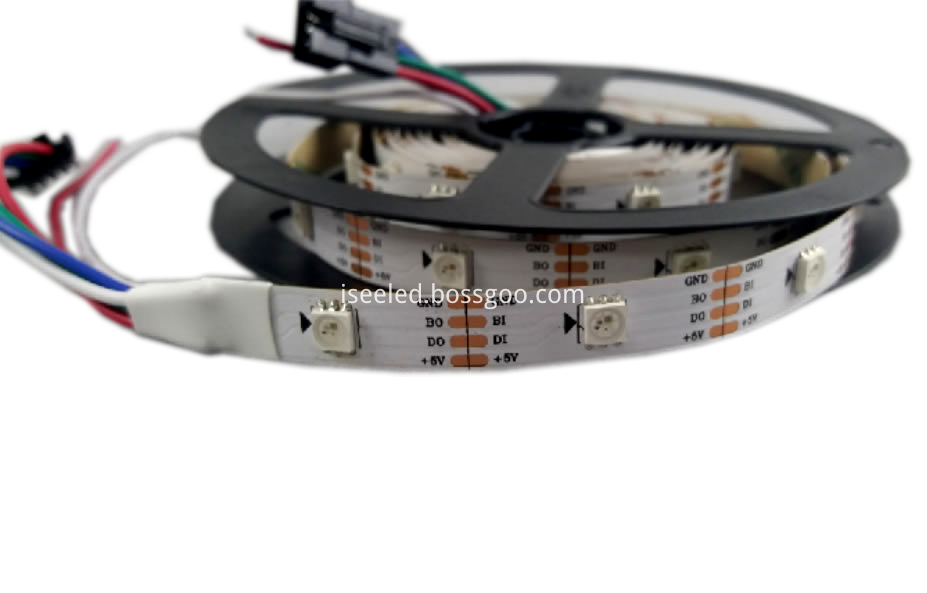

Dynamic LED Strip Pixel to Pixel
Products Description
Dynamic LED Strip Pixel to Pixel which is widely adapted for all kinds of application including, stage led lighting decoration, club atmosphere built , party and video art project, studio room decoration, etc
Dynamic LED Strip can be divided 1 led 1 pixel, 3 led 1 pixel type in pixel led strip, RGB dynamic led strip and RGBW dynamic led strip in color output, IC built in LED strip or IC external LED strip in LED IC driver position, Single signal and dual signal in signal transfer, also you can choose the dynamic led strip in waterproof protection grade and the pcb color in white or black dynamic led strip.
Dynamic LED strip need drive by constant voltage led power supply like LRS-350-12 or LRS-350-5 meanwell power supply and led controller which you can choose the different led controller for project requirements, and we provide easy artnet led controller, dvi led controller, SD card standalone led controller, and online/offline LED controller, etc
|
Model NO. |
LED-FS5000WS28123030 |
LED-FS5000WS28126060 |
LED-FS5000WS2812144144 |
LED-FS5000WS28123232 |
|
LED type |
SMD RGB 5050 |
SMD RGB 5050 |
SMD RGB 5050 |
SMD RGB 5050 |
|
LED QTY |
30 Leds/meter |
60 Leds/meter |
144 Leds/meter |
32 Leds/meter |
|
Color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
|
Operating Voltage |
DC 5V |
DC 5V |
DC 5V |
DC 5V |
|
Power |
MAX=9W/M |
MAX=18W/M |
MAX=43.2W/M |
MAX=9.6W/M |
|
Dimension |
L5000mm x W10mm |
L5000mm x W12mm |
L5000mm x W12mm |
L5000mm x W12mm |
|
Working Current |
1.8A / M |
3.6A/ M |
8.64A/ M |
1.92A/ M |
|
PCB Color |
White/Black |
|||
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
|||
|
Temperature |
-4℉ to 122℉(-20℃ to 50℃) operating temperature |
|||
|
Protection |
IP20/IP65/IP67/IP68 |
|||
|
Model NO. |
LED-FS5000WS28133030 |
LED-FS5000WS28136060 |
LED-FS5000WS2813144144 |
LED-FS5000WS28133232 |
|
LED type |
SMD RGB 5050 |
SMD RGB 5050 |
SMD RGB 5050 |
SMD RGB 5050 |
|
LED QTY |
30 Leds/meter |
60 Leds/meter |
144 Leds/meter |
32 Leds/meter |
|
Color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
|
Operating Voltage |
DC 5V |
DC 5V |
DC 5V |
DC 5V |
|
Power |
MAX=9W/M |
MAX=18W/M |
MAX=43.2W/M |
MAX=9.6W/M |
|
Dimension |
L5000mm x W10mm |
L5000mm x W12mm |
L5000mm x W12mm |
L5000mm x W12mm |
|
Working Current |
1.8A / M |
3.6A/ M |
8.64A/ M |
1.92A/ M |
|
PCB Color |
White/Black |
|||
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
|||
|
Temperature |
-4℉ to 122℉(-20℃ to 50℃) operating temperature |
|||
|
Protection |
IP20/IP65/IP67/IP68 |
|||
|
Model NO. |
LED-FS5000WS281126020 |
LED-FS5000WS28114816 |
LED-FS5000WS28113010 |
|
|
LED type |
SMD RGB 5050 |
SMD RGB 5050 |
SMD RGB 5050 |
|
|
LED QTY |
60 Leds/meter |
48 Leds/meter |
30 Leds/meter |
|
|
Color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
|
|
Operating Voltage |
DC 12V |
DC 12V |
DC 12V |
|
|
Power |
MAX=9W/M |
MAX=18W/M |
MAX=7.2W/M |
|
|
Working Current |
1.2A/M |
0.96A/M |
0.6A/M |
|
|
Dimension |
L5000mm x W10mm |
|||
|
PCB Color |
White/Black |
|||
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
|||
|
Temperature |
-4℉ to 122℉(-20℃ to 50℃) operating temperature |
|||
|
Protection |
IP20/IP65/IP67/IP68 |
|||
Ordering Information
|
Model No. |
Details |
|
Dynamic LED Strip Pixel to Pixel |
|
|
LED-FS5000SPI3010 |
SPI flexible strip, Black/White PCB, 30pcs smd rgb 5050 and 10pixels per meter, DC12V, 7.2W/M, IP65. 5meters in one roll. |
|
LED-FS5000SPI4816 |
SPI flexible strip, Black/White PCB, 48pcs smd rgb 5050 and 16pixels per meter, DC12V, 12W/M, IP65. 5meters in one roll. |
|
LED-FS5000SPI6020 |
SPI flexible strip, Black/White PCB, 60pcs smd rgb 5050 and 20pixels per meter, DC12V, 14.4W/M, IP65. 5meters in one roll. |
|
LED-FS5000SPI3030 |
SPI flexible strip, Black/White PCB, 30pcs smd rgb 5050 and 30pixels per meter, DC5V, 9W/M, IP65. 5meters in one roll. |
|
LED-FS5000SPI6060 |
SPI flexible strip, Black/White PCB, 60pcs smd rgb 5050 and 60pixels per meter, DC5V, 18W/M, IP65. 5meters in one roll. |
|
LED-FS5000SPI144144 |
SPI flexible strip, Black/White PCB, 144pcs smd rgb 5050 and 60pixels per meter, DC5V, 45W/M, IP65. 2meters in one roll. |
|
Controller and Power Supply |
|
|
LRS-350-5 |
Meanwell 350W, DC 5V output, indoor |
|
LRS-350-12 |
Meanwell 350W, DC 12V output, indoor |
|
RSP-320-5 |
Meanwell 320W, DC 5V output, indoor with PFC |
|
RSP-320-12 |
Meanwell 320W, DC 12V output, indoor with PFC |
|
LED-01SC |
DMX LED Controller, SD card offline, 1* 512 CH |
|
LED-SA08 |
8 port Standalone LED Controller 8 output, max load 8192 pixel |
|
LED-ANC-ES4 |
Easy Artnet 4,4 output, Max 512pixel each port. AC220V / AC110V input, 1.2W, 1.5KG, |
|
LED-GPS-SC |
GPS SD Card Controller,2port GPS Standalone LED Controller 2 output, max load 2048 pixel |
|
T100K |
T100K |
|
T500K |
T500K |
