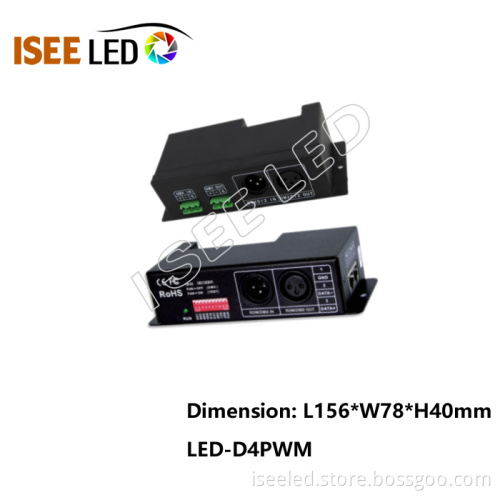

DMX led controller 4ch decoder
Model No. : LED-D4PWM
DMX 4ch decoder, 4 Channel, common anode input, max 6A per channel, The DMX led decoder allows for led lights to be controlled via a dmx controller
by accepting both dc supply voltage and your dmx controller signal and distributing it to attached led lights.
This led decoder accepts XLR-3 type connections for the DMX signal input and output, DC6-24V input, 0-100% dimming, 1024 gray level, 500Hz frequency.
Each 20pcs DMX Decoder need a DMX signal amplifier.
Application: adapted for all kinds of led lighting control by PWM DMX protocol .
DMX led controller decoder Description
1, 3ch, 4ch, 6ch, 24ch DMX to PWM decoder.
2, DMX to SPI decoder.
3, Set dmx512 address by DIP switch.
4, XLR connector or RJ45 connector.
5, Each 20pcs dmx decoder need a dmx amplifier for the PWM decoder .
6, Protections: short circuit, over current , over temperature.
DMX led controller 4ch decoder Parameters
|
Model |
LED-D3PWM |
LED-D4PWM |
LED-D6PWM |
LED-D24PWM |
|
Input Voltage |
DC5V or DC 6-24V |
DC 6-24V |
DC 6-24V |
DC 7.5-24V |
|
Control |
3CH x 4A |
4CH x 6A |
6CH x 6A |
24CH x 5A |
|
Working Temperature |
-20C°--75C° |
-20C°--75C° |
-20C°--75C° |
-20C°--75C° |
|
Protection |
IP40 |
IP40 |
IP40 |
IP40 |
|
Dimension |
L165 x W67 x H42mm |
L156 x W78 x H40(mm) |
L127 x W40 x H52mm |
L262 x W130 x H45mm |
|
Net Weight |
0.8kg |
0.5kg |
0.4kg |
0.8kg |
DMX led controller 4ch decoder Diagram
DMX led controller 4ch decoder Photo Show
