Meanwell Power Supply for LED Display LRS-200-5
Products Description

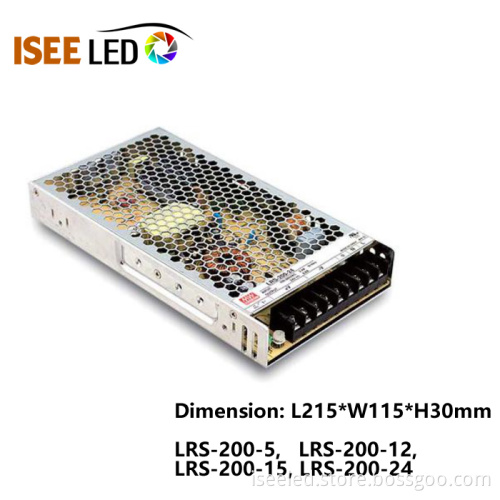

Meanwell switching power supply LRS-200 series is a 200W single output enclosed type power supply with 30mm of low profile design. Adopting the input of 115V AC or 230V AC( select by switch), the entire series provides an output voltage line of 3.3.V, 4.2V. 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency ip to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-200 that the whole series operates from -25℃ through 70℃ under air convection without a fan.
Delivering an extremely low no load power consumption ( less than 0.75W), it allows the end system to easily meet the worldwide energy requirements. LRS-200 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL 60950-1.
LRS-200 series serves as a high price-to performance power supply solution for various industrial applications,
5V 200W is widely used for led display
|
MODEL |
LRS-200-5 |
LRS-200-12 |
LRS-200-15 |
LRS-200-24 |
LRS-200-36 |
LRS-200-48 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
36V |
48V |
|
RATED CURRENT |
40A |
17A |
14A |
8.8A |
5.9A |
4.4A |
|
|
CURRENT RANGE |
0 ~ 40A |
0 ~ 17A |
0 ~ 14A |
0 ~ 8.8A |
0 ~ 5.9A |
0 ~ 4.4A |
|
|
RATED POWER |
200W |
204W |
210W |
211.2W |
212.4W |
211.2W |
|
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
VOLTAGE ADJ. RANGE |
4.5 ~ 5.5V |
10.2 ~ 13.8V |
13.5 ~ 18V |
21.6 ~ 28.8V |
32.4 ~ 39.6V |
43.2 ~ 52.8V |
|
|
VOLTAGE TOLERANCE Note.3 |
±3.0% |
±1.5% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
LOAD REGULATION Note.5 |
±2.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
SETUP, RISE TIME |
1300ms, 50ms/230VAC, 1300ms,50ms/115VAC at full load |
||||||
|
HOLD UP TIME (Typ.) |
16ms/230VAC 12ms/115VAC at full load |
||||||
|
INPUT |
VOLTAGE RANGE |
90 ~ 132VAC / 180 ~ 264VAC by switch, 240 ~ 370VDC (switch on 230VAC) |
|||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||||
|
EFFICIENCY (Typ.) |
87% |
87.50% |
88% |
89.50% |
89.50% |
90% |
|
|
AC CURRENT (Typ.) |
4A/115VAC, 2.2A/230VAC |
||||||
|
INRUSH CURRENT (Typ.) |
COLD STAR 60A/115VAC, 60A/230VAC |
||||||
|
LEAKAGE CURRENT |
<2mA / 240VAC |
||||||
|
PROTECTION |
OVER LOAD |
110 ~ 140% rated output power |
|||||
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
18 ~ 21V |
28.8 ~ 33.6V |
41.4 ~ 46.8V |
55.2 ~ 64.8V |
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
OVER TEMPERATURE |
Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
ENVIRONMENT STORAGE |
WORKING TEMP. |
-25 ~ +70℃ (Refer to "Derating Curve") |
|||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||||
|
TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
||||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||||
|
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
|
SAFETY STANDARDS |
UL60950-1 approved |
||||||
|
SAFETY |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||||
|
OTHERS |
MTBF |
347.5K hrs min. MIL-HDBK-217F (25℃) |
|||||
|
DIMENSION |
215*115*30mm (L*W*H) |
||||||
|
PACKING |
0.66Kg; 15pcs/10.9Kg/0.78CUFT |
||||||
