Round 36W DC24V Outdoor Facade Light Fixtures
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 12 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 10000pcs per month |
| Supply Ability: | 2000pcs per month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Hongkong |
Round 36W DC24V Outdoor Facade Light Fixtures
Products Description
Material: Die-cast Aluminum + tempered glass for the Facade Light
Dimension: Dia 230mm
Power: 36*1W
Shape: Round
Input working voltage: DC24V
Emitting color: RGB, Red, Green, Blue, Yellow, White, Warm White
Lens: 8° , 16 °, 25°, 30°, 45°, 60°
IP Level: IP65
Auto or Manual setting DMX address
Application:
Building Facade, Bridge, Square, Garden, Park, Stage, Hotel, Parking Place
|
Model NO. |
LED-FL430162DMX3601 |
LED-FL330145DMX3601 |
LED-PL203DMX1801 |
|
Material |
Stretched Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
|
Size |
430*162*101mm |
330*145mm |
Ø230xH246MM |
|
Power |
can make 18W , 24W , 36W |
||
|
Working Voltage |
DC 24V |
||
|
Color Range |
RGB, red, green, blue, white |
||
|
Beam Angle |
8° , 16 °, 25°, 30°, 45°, 60° |
||
|
Address Setting |
Automatically/Manually |
||
|
Protocol / Dimming |
DMX512 |
||
|
Lifespan |
50000 hours |
||
|
Protection |
IP65 |
||
|
Operating Temperature |
-20 to 50degree Celsius |
||
|
Storage Temperature |
-40~ + 80degree Celsius |
||
|
Guarantee |
2 years |
||
Ordering Information
|
Model No. |
Details |
|
Wall Washer |
|
|
LED-FL430162DMX3601 |
430*162*101mm, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65 |
|
LED-FL330162DMX1801 |
330*162*101mm, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65 |
|
LED-FL330145DMX3601 |
330*145mm, 12RGB, 12white, 24 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65 |
|
LED-FL230DMX1801 |
Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 70W, IP65 |
|
LED-FL230DMX3601 |
Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65 |
|
LED-FL203DMX1801 |
Ø203xH360MM,, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65 |
|
LED-FL470DMX7201 |
470*45*420mm, 24Red, 24Green, 23Blue, 72pcs 2W leds, tempered glass, 24V DC input, DMX 512, max 200W, IP65 |
|
Controller and Power Supply |
|
|
HLG-240H-24 |
Meanwell 240W, DC 24V output, IP65 / IP67 |
|
HLG-320H-24 |
Meanwell 320W, DC 24V output, IP65 / IP67 |
|
HLG-320H-24B |
Meanwell 320W, DC 24V output, IP65, PWM/1-10V DC / resistance dimming function |
|
LRS-350-24 |
Meanwell 350W, DC 24V output, indoor |
|
RSP-320-24 |
Meanwell 320W, DC 24V output, indoor with PFC |
|
LED-01SC |
DMX LED Controller, SD card offline, 1* 512 CH |
|
IA-001005 |
Madrix Plexus, 2*512 DMX CH, Standalone or Online |
|
LED-DW100 |
DMX LED Address Writer |
|
Cables |
|
|
LED-BI(1000)4FB |
10M black 4 pin female to bare cable( the bare cable to controller) |
|
LED-BI(300)4M4F |
3M black 4 pin male to 4 pin female |
|
LED-BI(100)2FB |
1M black 2 pin female to bare cable( the bare cable to Power Supply) |

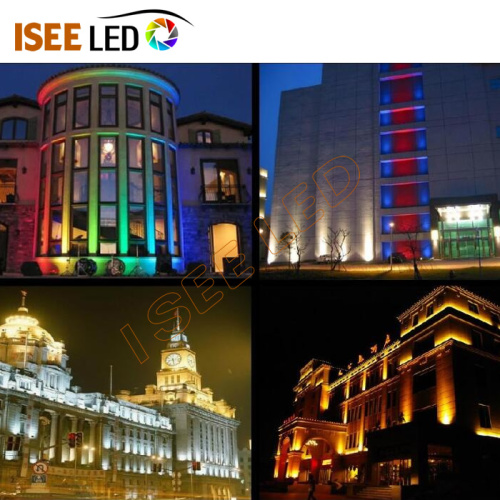

Photo Show
Packaging&Shipping
Our service
Pre-Sales Service
24 hours of service, and provide customized solution and proposal according to customer`s different requirements, products categories, successful projects examples etc. And factory visiting, simulated effect drawing etc.
In-Sales Service
Provide details about production schedule and procedure and free spare parts: necessary spare parts are provided together with products to customers.
After-Sales Service
Free technical training and quality warranty. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software etc.And complaint respond period not exceed 24 hours; maintenance guidance and problem solution provided in 48 hours.
