144W High Power LED Flood Lighting Fixture
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 24 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China |
|---|---|
| Productivity: | 10000pcs per month |
| Supply Ability: | 1000pcs per month |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Hongkong |

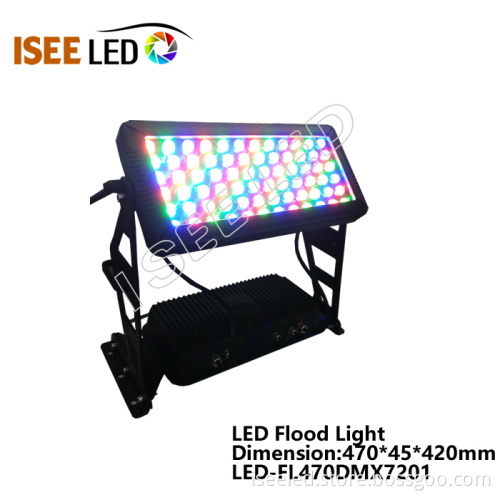

144W High Power LED Flood Lighting Fixture
Products Description
144W high power LED flood lights is 72 pcs 2W led, and 24 pcs red led, 24 pcs green led, 24 pcs blue led. Control by dmx 512 led controller and auto dmx addressing.
LED Flood lights fixture always for flood lights to light a wide or narrow place, like a tree, figure, building frame, landscape lighting, stadium lighting, etc. As a outdoor led lighting, the flood light is waterproof. Floodlight run on 12V, 24V, 110V-220V, and the dmx led flood light can control by standard dmx led controller, like sunlite, madrix, etc.
The flood lights panel can be rectangle, square, round, two head flood lights.The output wattage from 9W led flood light, 18W led flood light, 30W led flood light, 36W led flood light, upto 72W led flood light, 144W led flood light.
Model NO.
LED-FL470DMX7201
Material
Die-casting Aluminum
Size
470*45*420mm
LED Quantity
72pcs 2W LED
Power
144W
Working Voltage
90-240V AC
Color Range
RGB, red, green, blue, white
Beam Angle
30°, 45°, 60°
Address Setting
Automatically/Manually
Protocol / Dimming
DMX512
Lifespan
50000 hours
Protection
IP65
Operating Temperature
-20 to 50degree Celsius
Storage Temperature
-40~ + 80degree Celsius
Guarantee
2 years
Ordering Information
|
Model No. |
Details |
|
Wall Washer |
|
|
LED-FL430162DMX3601 |
430*162*101mm, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65 |
|
LED-FL330162DMX1801 |
330*162*101mm, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65 |
|
LED-FL330145DMX3601 |
330*145mm, 12RGB, 12white, 24 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65 |
|
LED-FL230DMX1801 |
Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 70W, IP65 |
|
LED-FL230DMX3601 |
Ø230xH246MM, 12Red, 12Green, 12Blue, 36 leds, tempered glass, 24V DC input, DMX 512, max 45W, IP65 |
|
LED-FL203DMX1801 |
Ø203xH360MM,, 6Red, 6Green, 6Blue, 18 leds, tempered glass, 24V DC input, DMX 512, max 28W, IP65 |
|
LED-FL470DMX7201 |
470*45*420mm, 24Red, 24Green, 23Blue, 72pcs 2W leds, tempered glass, 24V DC input, DMX 512, max 200W, IP65 |
|
Controller and Power Supply |
|
|
HLG-240H-24 |
Meanwell 240W, DC 24V output, IP65 / IP67 |
|
HLG-320H-24 |
Meanwell 320W, DC 24V output, IP65 / IP67 |
|
HLG-320H-24B |
Meanwell 320W, DC 24V output, IP65, PWM/1-10V DC / resistance dimming function |
|
LRS-350-24 |
Meanwell 350W, DC 24V output, indoor |
|
RSP-320-24 |
Meanwell 320W, DC 24V output, indoor with PFC |
|
LED-01SC |
DMX LED Controller, SD card offline, 1* 512 CH |
|
IA-001005 |
Madrix Plexus, 2*512 DMX CH, Standalone or Online |
|
LED-DW100 |
DMX LED Address Writer |
|
Cables |
|
|
LED-BI(1000)4FB |
10M black 4 pin female to bare cable( the bare cable to controller) |
|
LED-BI(300)4M4F |
3M black 4 pin male to 4 pin female |
|
LED-BI(100)2FB |
1M black 2 pin female to bare cable( the bare cable to Power Supply) |
Photo Show
Packaging&Shipping
Our service
Pre-Sales Service
24 hours of service, and provide customized solution and proposal according to customer`s different requirements, products categories, successful projects examples etc. And factory visiting, simulated effect drawing etc.
In-Sales Service
Provide details about production schedule and procedure and free spare parts: necessary spare parts are provided together with products to customers.
After-Sales Service
Free technical training and quality warranty. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software etc.And complaint respond period not exceed 24 hours; maintenance guidance and problem solution provided in 48 hours.
