DMX512 LED Dot Matrix Light
-
$10.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Hongkong, Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 500pcs/day |
|---|---|
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Hongkong,Shenzhen,Guangzhou |
DMX512 pixel light features
DMX512 pixel led dot light is rgb full color, dmx led dot matrix pixel diameter is 30mm, dmx512 led pixel dot matrix have milky housing and transparent housing is available. Regular pitch of dmx512 pixel led is 15cm, but it can be customized. Flexible pitch makes full color DMX512 pixel led light is easy to make led dot matrix. DMX512 pixel led dot matrix is good for stage, TV show, billboard, led display and so on.
1, DMX512 led dot string is flexible spacing.
2, LED dot matrix light could be DMX512 or SPI protocol.
3, Different size led dmx512 pixel light is optional.
4, DMX pixel led light is RGB full color, each pixel takes 3channels.
5, DMX led dot light string compatibles with Artnet led controller.
DMX512 led dot parameters
|
Model NO. |
LED-PL30DMX0301 |
LED-PL50DMX0301 |
LED-PL100DMX1201 |
LED-PL120DMX1801 |
|
LED |
3pcs SMD RGB 5050 |
3pcs SMD RGB 5050 |
12pcs SMD RGB 5050 |
18pcs SMD RGB 5050 |
|
Dimension (housing) |
30MM diameter |
50MM diameter |
100MM diameter |
120MM diameter |
|
Color |
■■■RGB full color |
■■■RGB full color |
■■■RGB full color |
■■■RGB full color |
|
Voltage |
DC 12V |
DC 12V |
DC 24V |
DC24V |
|
Power |
MAX=0.72W |
MAX=0.72W |
MAX=2.88W |
MAX=4.32W |
|
Control Protocol |
DMX512 |
|||
|
Control Mode |
DMX Artnet / DMX DVI / Standalone Control |
|||
|
Model NO. |
LED-HP80DMX0101 |
LED-HP64DMX0101 |
LED-HP64DMX0101 |
LED-HP78DMX0101 |
|
LED |
3W High Power RGB in one LED |
3W High Power RGB in one LED |
4W High Power RGBW in one LED |
4W High Power RGBW in one LED |
|
Emitting angle |
70degree |
120 degree |
10*75 degree/ 120 degree |
10*75 degree |
|
Color |
■■■RGB full color |
■■■RGB full color |
■■■RGB full color |
■■■RGB full color |
|
Voltage |
DC 12V |
DC 12V |
DC 24V |
DC12- 24V |
|
Power |
MAX=3W |
MAX=3W |
MAX=4W |
MAX=4W |
|
Control Protocol |
DMX512 |
|||
|
Control Mode |
DMX Artnet / DMX DVI / Standalone Control |
|||
|
Dimension (housing) |
80MM diameter |
64MM diameter |
64MM diameter |
78MM diameter |
|
Housing Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Model NO.
LED-PL20SPI0101
LED-PL30SPI0301
LED-PL50SPI0601
LED-PL50SPI0601
LED type and QTY
1pcs SMD RGB 5050
3pcs SMD RGB 5050
6pcs SMD RGB 5050
6pcs SMD RGB 5050
Dimension (housing)
20MM diameter
30MM diameter
50MM diameter
50MM diameter
Color
■■■RGB full color
■■■RGB full color
■■■RGB full color
■■■RGB full color
Operating Voltage
DC 5V
DC 12V
DC 12V
DC 12V
Power
MAX=0.3W
MAX=0.72W
MAX=1.44W
MAX=1.44W
Control Protocol
WS2811
WS2811
WS2821
WS2811
Control Mode
DVI / Standalone Control

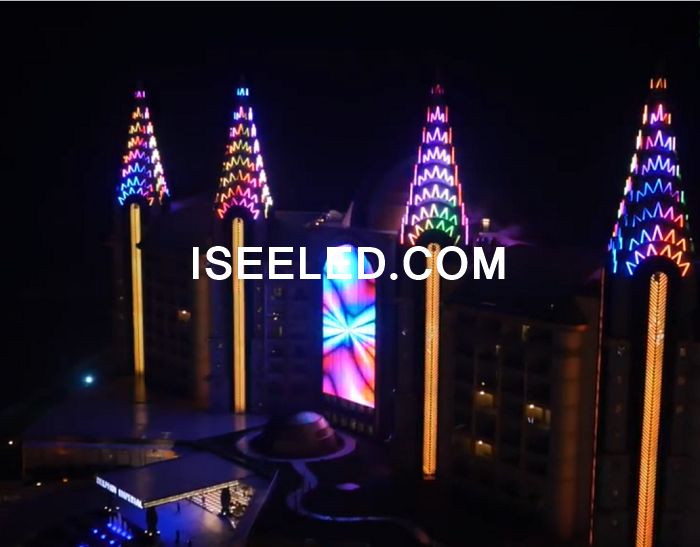

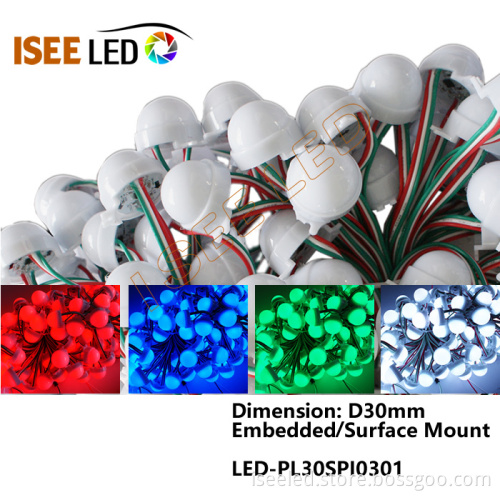

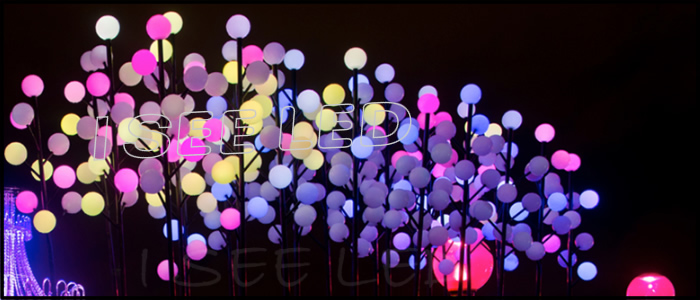

LED dot matrix light pictures
About ISEELED
1, Professional DMX led light and SPI led light solution provider.
2, Factory with R&D dept.
3, Rich experience on international business.
ISEELED Service
1, Fast response.
2, Professional pre-sales consulting.
3, Good after-sales service.
4, ODM/OEM.
5, Fast lead time, most orders can be finished in two weeks.
FAQ
Q: How can I order from you?
A: 1, Please contact sales to issue pro-forma (PI).
2, After receiving your 50% or 100% deposit, we'll arrange production.
3, We'll inform you before production is finished.
4, Please arrange balance payment.
5, After receiving your balance payment, we'll arrange shipping, and let you know tracking NO.
Q: Is there a minimum order value?
A: Some items have MOQ, please contact sales.
Q: What's your terms of trade?
A: We quote based on EXW. Regarding shipping cost, we can quote if you want.
Q: How about payment terms?
A: TT, PayPal, Western Union, MoneyGram are available.
Q: When will my order be dispatched?
A: We aim to send all orders within 15 working days.
If there is any problem with your order or stock we will contact you as soon as possible.
Q: I have received my delivery and some items are missing/damaged – what should I do?
A: Please notify us in writing as soon as you notice any damaged items or missing items. You can send this information by email.
Q: If I need technical support, what should I do?
A: Please contact your sales, he/she will help you.
