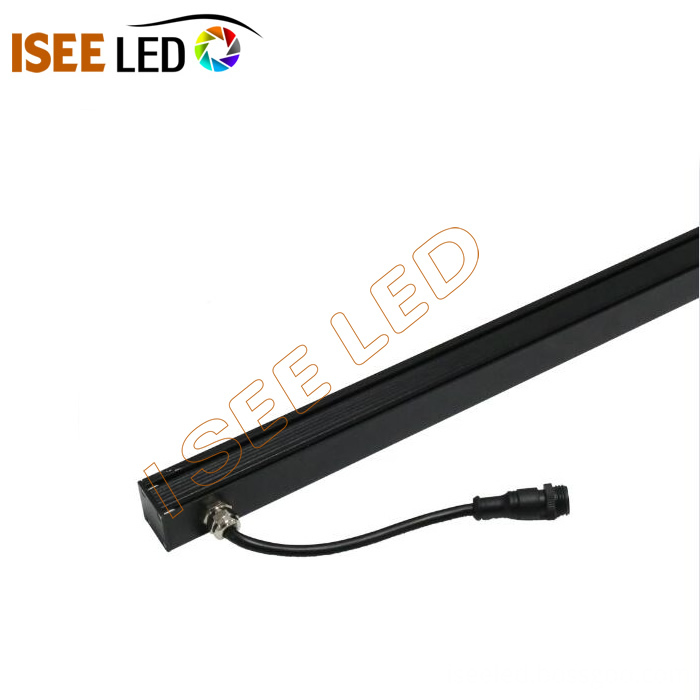

DMX512 LED 5050 RGB Pixel Bar
-
$20.00≥10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Hongkong, Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500pcs/day |
| Supply Ability: | 500pcs/day |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Hongkong,Shenzhen,Guangzhou |
DMX512 RGB Pixel Bar, IP65, coated with waterproofing, complete encapsulation, can be used indoor or outdoor.
Multiples of strips can be designed to form a video, graphic show and visual matrix. 24v LED Pixel Bar's Pixel pitch can be customized, to meet different design requirement. Constant current driver contributes to the protecting of LEDS` lifespan.
DMX512 Protocol for 5050 RGB Pixel Bar, sharing long-distance of transmission and high ability of anti-interference.
Madrix Software compatible, Madrix DMX led light control solution. Light and audio controlled synchronously, music controllable. Environment friendly, no harsh glare and buzzing noise, no flicker.
Application:
DJ Club, Events, Wall decoration, Ceiling decoration, Exhibition, Building Outline, Building Facade and so on
|
Model NO. |
LED-LB2725DMX3216 |
LED-LB2725DMX1608 |
LED-LB2725DMX4816 |
LED-LB2725DMX2408 |
|
Dimension |
1000x27x25mm |
500x27x25mm |
1000x27x25mm |
500x27x25mm |
|
LED type and QTY |
32 pcs SMD RGB 5050 |
16 pcs SMD RGB 5050 |
48 pcs SMD RGB 5050 |
24 pcs SMD RGB 5050 |
|
Pixel QTY |
16 PIX |
8 PIX |
16 PIX |
8 PIX |
|
Emitting angle |
120 degree |
120 degree |
120 degree |
120 degree |
|
Color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
|
Operating Voltage |
DC 12V/24V |
DC 12V/24V |
DC 12V/24V |
DC 12V/24V |
|
Power |
MAX=12W |
MAX=6W |
MAX=12W |
MAX=6W |
|
Control Protocol |
DMX512 |
|||
|
Address Setting |
Automatically / Manually |
|||
|
Control Mode |
DMX Artnet / DMX DVI / Standalone Control |
|||
|
Material |
Aluminum housing + PC cover |
|||
|
Housing Color |
Black or customized color |
|||
|
Cover Color |
Clear / milky / frosted / mirror cover |
|||
|
Protection |
IP65 |
|||
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
|||
|
Temperature |
-4℉ to 122℉(-20℃ to 50℃) operating temperature |
|||
|
Humidity Range |
0 to 95% non-condensing |
|||
Connection guide:

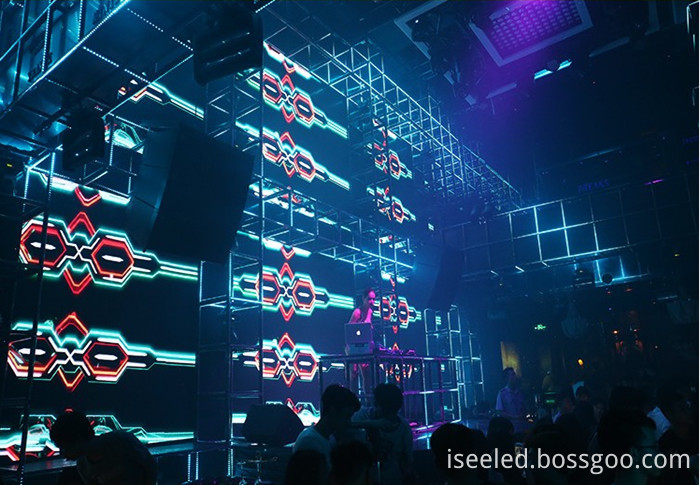

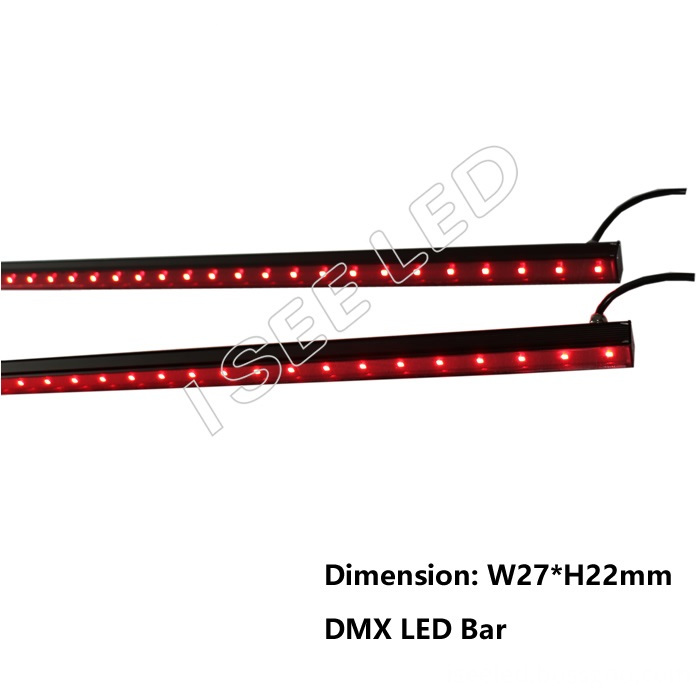

Picture show :
Packaging & Shipping
About ISEELED
1, Professional DMX led light and SPI led light solution provider.
2, Factory with R&D dept.
3, Rich experience on international business.
ISEELED Service
1, Fast response.
2, Professional pre-sales consulting.
3, Good after-sales service.
4, ODM/OEM.
5, Fast lead time, most orders can be finished in two weeks.
