DMX 512 Controllable RGB LED Panel Dynamic Light

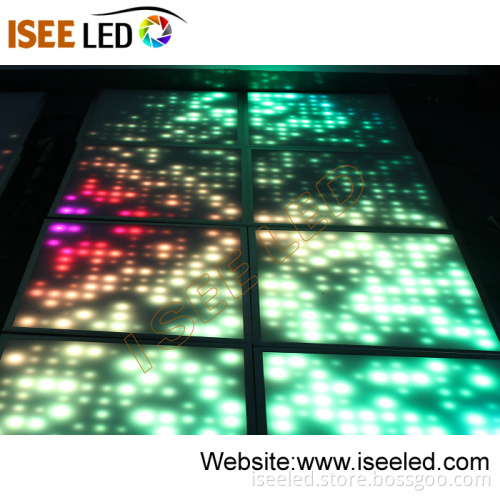

Model LED-PL150DMX3636 this panel including 36 pcs SMD RGB 5050 leds which is controll by DMX 512, and RGB color make dynamic panel light. It adapted for all kinds of installation methods including, stage background, lighting background, video display, club and bar lighting.
Iseeled Tech also provide a wide range of this type of product, no housing but PCBA type led panel, and standard 600*600mm or customzied size panel, and waterproof led panel as well.

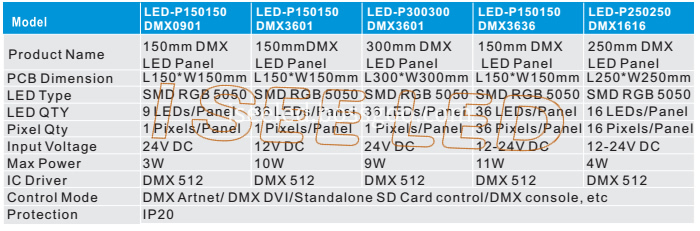

Please find the different RGB pixel LED panel light details as following.
|
Model NO. |
LED-PL150DMX3636 |
LED-PL150DMX3601 |
LED-PL250DMX1616 |
LED-PL300DMX1616 |
LED-PL600DMX144144 |
|
LED type and QTY |
36 pcs SMD RGB 5050 |
36 pcs SMD RGB 5050 |
16 pcs SMD RGB 5050 |
16 pcs SMD RGB 5050 |
144 pcs SMD RGB 5050 |
|
Pixles |
36 pixels |
1 pixel |
16 pixles |
16 pixles |
144 pixels |
|
Emitting angle |
120 degrees |
120 degrees |
120 degrees |
120 degrees |
120 degrees |
|
Color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
|
Gray Scale |
256 |
256 |
256 |
256 |
256 |
|
Operating Voltage |
DC 12-24V |
DC 12V |
DC 12-24V |
DC 12-24V |
DC12-24V |
|
Power |
12W |
10W |
6W |
6W |
55W |
|
Control Protocol |
DMX512 |
||||
|
Control Mode |

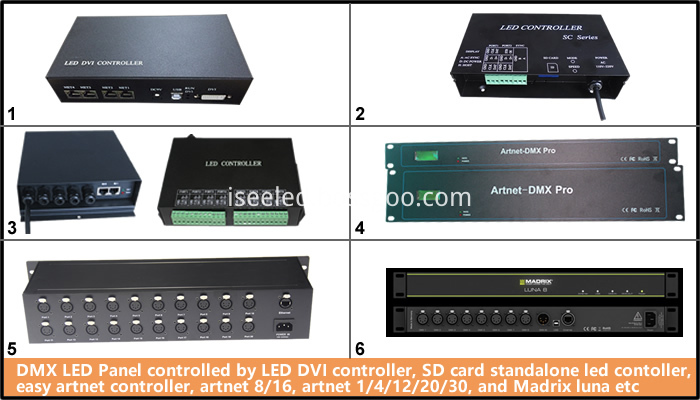

DMX Artnet / DMX DVI / Standalone Control |
||||
|
Address Setting |
Automatically/ Manually |
||||
|
Dimension |
150*150MM |
150*150MM |
250*150MM |
300*300MM |
600*600MM |
|
PCB Material |
Standard FR4 PCB Panel |
||||
|
PCB Color |
White color or other customized |
||||
|
Pitch |
P25MM |
P150MM |
P62.5MM |
P75MM |
P25MM |
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
||||
|
Temperature |
-4℉ to 122℉(-20℃ to 50℃) operating temperature |
||||
|
Humidity Range |
0 to 95% non-condensing |
||||
|
Protection |
IP20 |
||||
|
Package |
Carton |
||||
|
Note |
Custom-made housing is available |
||||
Packaging&Shipping
About us
ISEELED specialize in total LED lighting solutions for large business plazas, clubs, concerts, hotels and shopping malls, as well as LED decorations for your home.
And not only LED light fixtures and controllers. We also offer software and hardware solutions for making special effects.
Our service
Pre-Sales Service
24 hours of service, and provide customized solution and proposal according to customer`s different requirements, products categories, successful projects examples etc. And factory visiting, simulated effect drawing etc.
In-Sales Service
Provide details about production schedule and procedure and free spare parts: necessary spare parts are provided together with products to customers.
After-Sales Service
Free technical training and quality warranty. Full set of documents free of charge, including installation guidance, software operation manual, easy maintenance manual and control system software etc.And complaint respond period not exceed 24 hours; maintenance guidance and problem solution provided in 48 hours.
