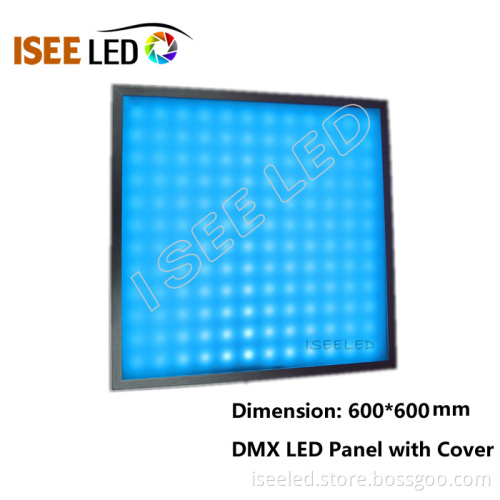

Aluminum Cover DMX Led Panel Lamp
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/Month |
| Supply Ability: | 10000pcs/Month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | ISO9001:2008 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Aluminum Cover DMX Led Panel Lamp
Model: LED-PL250DMX3601-HS
Size: 250mm*250mm (with housing)
36pcs Leds, 1 pixel. The pixels and led qty can be customized.
Waterproof
1, Ultra wide voltage input(DC:12-24V), adopt high brightness LED chips, SMD RGB 5050
2,1 led/pixel, 1 panel/pixels which realize manifestation and visual impact
3,Standard DMX 512 control, 44frames/second, manual or auto-addressing customized
4,2D pixel mapping to set on the software programming
5,Protections: short circuit, over current , over temperature
6,With working life-span at least 50,000hrs
7,Fast get through input/output signal
8,Support adjustable color temperature within 2,500k-10,000k
Products Description of DMX LED panel light
|
Model NO. |
LED-PL150DMX3636 |
LED-PL150DMX3601 |
LED-PL250DMX1616 |
LED-PL300DMX1616 |
|
LED type and QTY |
36 pcs SMD RGB 5050 |
36 pcs SMD RGB 5050 |
16 pcs SMD RGB 5050 |
16 pcs SMD RGB 5050 |
|
Pixles |
36 pixels |
1 pixel |
16 pixles |
16 pixles |
|
Emitting angle |
120 degrees |
120 degrees |
120 degrees |
120 degrees |
|
Color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
■■■ RGB full color |
|
Gray Scale |
256 |
256 |
256 |
256 |
|
Operating Voltage |
DC 12-24V |
DC 12V |
DC 12-24V |
DC 12-24V |
|
Power |
12W |
10W |
6W |
6W |
|
Dimension |
150*150MM |
150*150MM |
250*150MM |
300*300MM |
|
Pitch |
P25MM |
P150MM |
P62.5MM |
P75MM |
|
Control Protocol |
DMX512 |
|||
|
Control Mode |
DMX Artnet / DMX DVI / Standalone Control |
|||
|
Address Setting |
Automatically/ Manually |
|||
|
PCB Material |
Standard FR4 PCB Panel |
|||
|
PCB Color |
White color or other customized |
|||
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
|||
|
Temperature |
-4℉ to 122℉(-20℃ to 50℃) operating temperature |
|||
|
Humidity Range |
0 to 95% non-condensing |
|||
|
Protection |
IP20 |
|||
|
Package |
Carton |
|||
|
Note |
Custom-made housing is available |
|||
Product show
Recommended Controller :
Packing and shipping
Standard carton box
Delivery Details : 7-12 working days
DHL,Fedex,UPS,TNT available . you can also use your own logistics.
DHL express is about 3-5days working day for delivery.
About ISEELED :
ISEELED specialize in total LED lighting solutions for large business plazas, clubs, concerts, hotels and shopping malls, as well as LED decorations for your home.
And not only LED light fixtures and controllers. We also offer software and hardware solutions for making special effects.
ISEELED service:
1, Fast response.
2, Professional pre-sales consulting.
3, Good after-sales service.
4, ODM/OEM.
5, Fast lead time, most orders can be finished in two weeks.
Welcome to your enquiry !
