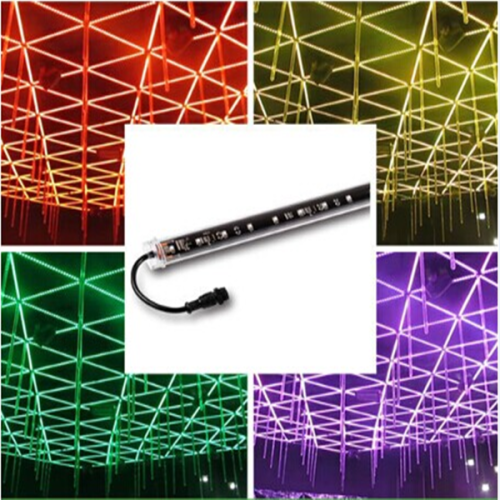

DMX512 led 3d effect video tube
DMX512 led 3d effect video tube's signal is in parallel connection, avoiding all lights influenced by failure of
one light in serial connection. It is much more easier for maintenance.
After installation, DMX addresses can be set by Iseeled DMX address writer.
1. Size : 0.5m, 1m, 1.5m, 2m length
2. Clear PC cover giving 360 degree viewing
3. Standard DMX 512 control, 44frames/second, manual customized
4. 3D pixel mapping to set on the software programming
5. Protections: short circuit, over current , over temperature
6. With working life-span at least 50,000hrs
7. IP65 waterproof with good design of the housing
Specification :
Model NO.
LED-3DT30DMX3208
LED-3DT30DMX6416
LED-3DT30DMX9624
LED-3DT30DMX12832
Diameter
30mm
30mm
30mm
30mm
Length
500mm
1000mm
1500mm
2000mm
Color
■■■ SMD RGB 5050
LED QTY
32LEDs
64LEDs
96LEDs
128LEDs
Pixel QTY
8 Pixels
16 Pixels
24 Pixels
32 Pixels
Tube Qty/Universe
20 Tubes
10 Tubes
7 Tubes
5 Tubes
Operating Voltage
DC15V
DC15V
DC15V
DC15V
Max Power
MAX=8W
MAX=16W
MAX=24W
MAX=32W
Control Protocol
DMX512
DMX512
DMX512
DMX512
Address Setting
Manually
LED Source Life
50,000hours,based on LED manufacturers` test data
Housing
Clear cover
Temperature
-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range
0 to 95% non-condensing
Protection
IP65
Net Weight
180g
350g
500g
670g
Note
1. diameter 15mm, 30mm, 50mm , 3D LED Vertical tube is available
2. Comparing with DMX512 protocol , if you need economic solution, we recommend SPI protocol
Connection guide :
Photo Show :
Packing and shipping :
Standard carton
50pcs tubes in one carton
Package Size 113*38*24cm
Delivery Details : 7-12 working days
DHL,Fedex,UPS,TNT available . you can also use your own logistics.
DHL express is about 3-5days working day for delivery.
