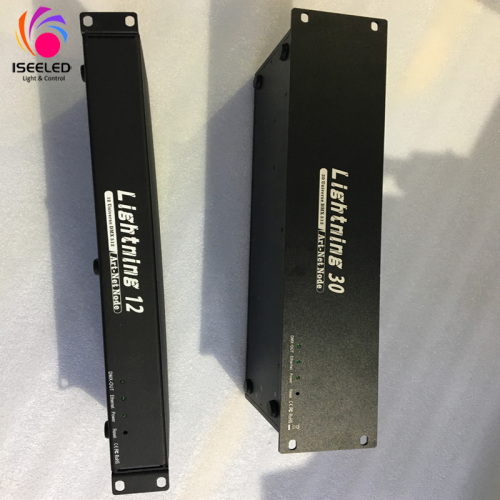

Mapmapper Software LED Controller for Event Lighting

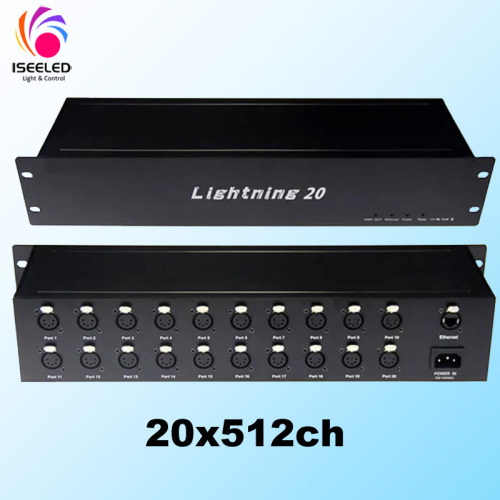

20ports Madmapper LED controller is standard 2U rack size 20x512ch DMX led controller device.
Madmapper software controller is AC90-250V input, very friendly to small projects.
If your project need more than 12universe Madmapper lighting controller, you can connect many Madmapper artnet controller together with switch. Also you can choose ISEELED 4x512ch, 8x512ch, 16*512ch, 20*512ch, 30*512ch dmx artnet controller.
LED Madmapper controller description
1, Compatibles with DMX512 led pixel lights.

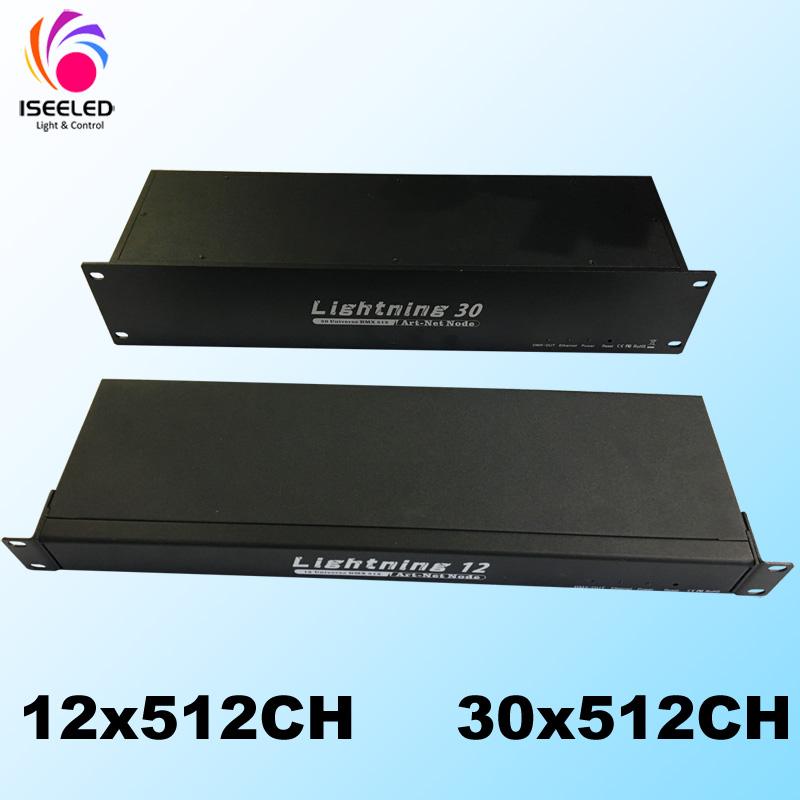

2, 8x512 CH, 16x512 CH, 4x512 CH, 12x512 CH, 20x512 CH, 30x512 CH Artnet dmx controller are available.
3, LCD screen show IP address and universe information
4, RJ45 in & out, with built in switch, realize series connection between many dmx artnet led controller.

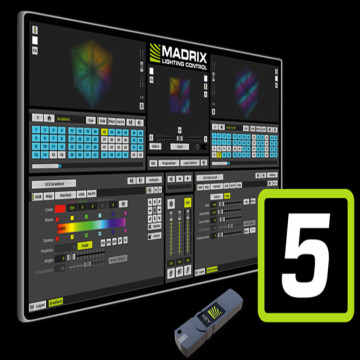

5, Compatible with different software, such as Madmapper, Madrix, Jinx and others.
|
Model |
Lightning 4 LED-ANC4x512 |
Lightning 12 LED-ANC12x512 |
Lightning 20 LED-ANC20x512 |
Lightning 30 LED-ANC30x512 |
|
CPU |
ARM |
ARM+FPGA |
||
|
Input Protocols |
ART-NET II, ART-NET III |
ART-NET II, ART-NET III, sANC |
||
|
Configuration |
IP address, Artnet Name |
|||
|
Output Protocols |
DMX512 |
|||
|
Input Connection |
RJ45 |
|||
|
Output Connector |
3pin/5pin XLR female |
|||
|
Input Voltage |
DC5-24V |
AC90-250V |
||
|
Input Power (Max) |
2W |
5W |
||
|
Dimension |
125x70x45 mm |
483x155x44 mm |
482.6x130x88mm |
482.6x130x88mm |
|
Net Weight |
0.7kg |
1.0kg |
2.0kg |
2.0kg |
FAQ
1, Why use a Artnet DMX controller?
Artnet controller supports DMX512 signal output. The advantage of Artnet is real time control and stable signal, you can program LED lights to display any wanted effect. You can set intensity, colour within a split-second.
2, What is DMX led controller?
DMX is an acronym for Digital Multiplex.
DMX led controller uses standard digital communication protocol to control intelligent lighting fixtures.
3, How about capacity of a DMX universe?
A standard DMX universe's capacity is 512 channels.
For RGB lightings, one pixel takes 3 DMX channels, then one universe controls 512/3=170pixels.
For RGBW lightings, one pixel takes 4 DMX channels, then one universe controls 512/4=128pixels.
4, How do I set up Artnet controller?
Set Artnet parameters on our software or on broswer, depends on the model which you're using, for more details, feel free to ask us.
ISEELED Service
1, Professional DMX led light and SPI led light solution provider.
2, Response in 24hours.
3, Professional pre-sales consulting and good after-sales service.
4, Fast lead time, most orders can be finished in two weeks.
5, ODM/OEM is available.
