Artnet Node DMX Pixel LED Controller
-
$500.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000PCS/Month |
| Supply Ability: | 3000PCS/Month |
| Payment Type: | Paypal,T/T |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE, ROHS |
| HS Code: | 8537209000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Hongkong |
1 x Art-Net input, 8 x DMX output, 12 x DMX output, 20 x DMX output, support ANY Artnet software and console.
3/5 pin XLR and RJ45 for DMX input connection, Auto sensing universal power adaptor,
Anodizing black aluminum housing, LED indicator for power status.
Our ArtNet/DMX controller are available in versions of 3-pin XLR and 5-pin XL connector,to avoid the trouble of using 3-to-5 adapter, please make it clear when placing the order prefer 3pin or 5pin, default XLR is 3pin if customer do not declare.
Parameters
Standard controller can set the IP address and controller name via Artnet setting software
|
Model |
LED-ANC8x512 |
LED-ANC16x512 |
|
Universe |
8 |
16 |
|
Working Voltage |
AC 110 -240V |
|
|
Output Protocol |
DMX512 |
|
|
Output connector |
3/5 pin XLR female |
|
|
Support software |
Madrix, SUNLITE, Arkaos, Martin, Avolite |
|
|
Input Protocol |
ART-NET II, ART-NET III |
|
|
Ethernet/Art-Net |
RJ45, 10/100Mbit/s |
|
|
Working temperature |
-20℃-+50℃ |
|
|
Working Environment |
IP20,Indoor use only |
|
|
Dimension |
483x155x44 mm |
483x155x88 mm |
|
Net Weight |
0.9KG |
1.86KG |
Lightning controller can set the IP address and controller name via web
|
Model |
Lightning 1 |
Lightning 4 |
Lightning 12 |
Lightning 20 |
Lightning 30 |
|
|
CPU |
ARM |
ARM+FPGA |
||||
|
Input Protocols |
ART-NET II, ART-NET III |
ART-NET II, ART-NET III, sANC |
||||
|
Configuration |
IP address, Artnet Name |
|||||
|
Output Protocols |
DMX512 |
|||||
|
Input Connection |
RJ45 |
|||||
|
Output Connector |
3pin/5pin XLR female |
|||||
|
Input Voltage |
DC5-24V |
AC90-250V |
||||
|
Input Power (Max) |
2W |
5W |
||||
|
Dimension |
70x63x38 mm |
125x70x45 mm |
483x155x44 mm |
482.6x130x88mm |
482.6x130x88mm |
|
|
Net Weight |
0.3kg |
0.7kg |
1.0kg |
2.0kg |
2.0kg |
|

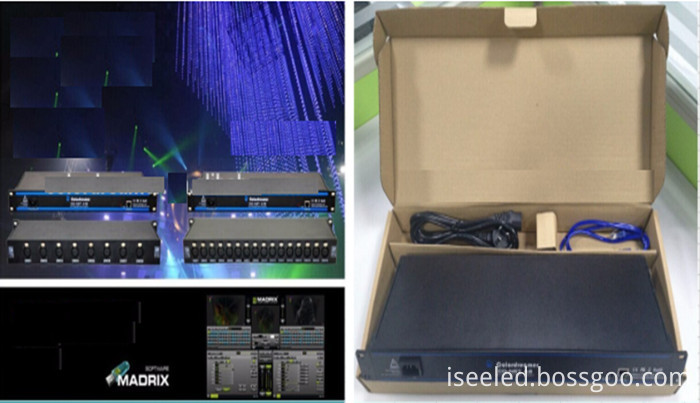

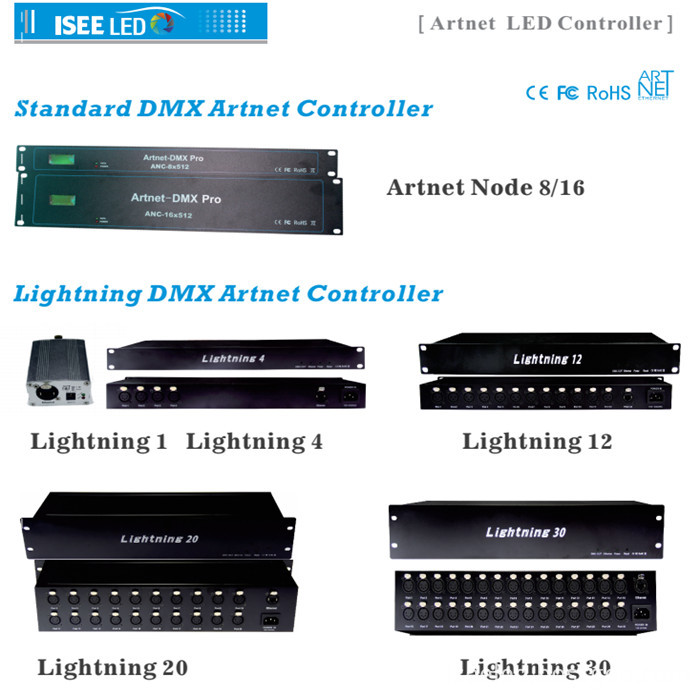

Photo Show :
Remarks: XLR 3pin or 5pin all avaliable, please make it clear when placing the order prefer 3pin or 5pin,
default XLR is 3pin if customer do not declare.
Packing :
FAQ
Q: Is there a minimum order value?
A: Some items have MOQ, please contact sales.
Q: What's your terms of trade?
A: We quote based on EXW.Regarding shipping cost, we can quote if you want.
Q: I have received my delivery and some items are missing/damaged – what should I do?
A: Please notify us in writing as soon as you notice any damaged items or missing items. You can send this information by email.
Q: If I need technical support, what should I do?
A: Please contact your sales, he/she will help you.
