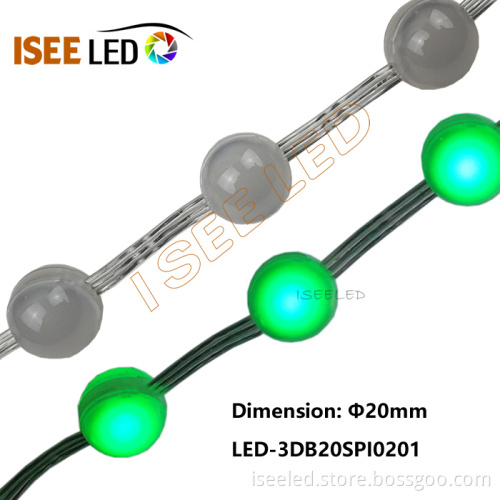

Mini 3D 20MM Diameter LED Ball Bead Light
Products Description
Mini 3D 20mm diameter LED ball bead light is the led lighting for 3D illuminate structure or hanging led ball for 3D led cube, and also for decoration as background led lighting.
For small size of the 3D LED ball string, we have 14mm diameter led ball, 20mm diameter led ball and 50mm diameter led ball 3 types 3D led ball to meet different application.
And the LED Bulb ball type we have size 50mm, 80mm, 150mm, 200mm, 300mm, 400mm and 500mm diameter which you can choose.
Customized introduction of the 3D 20mm diameter led ball bead light
Considering this mini 20mm diameter led ball bead light, the minimum pitch (center to center) is 5CM, and max 80pcs led ball per string. Only need power from one end, max length 4M, which means when you do 10CM pitch, you can get max 40 pcs 20mm diameter led ball per string.
Parameters
|
Model |
LED-3DB20SPI0201 |
LED-3DB50DMX0401 |
LED-3DB80DMX0301 |
LED-3DB14DMX0201 |
|
|
Product Name |
20mm 3D LED Ball |
50mm 3D LED Ball |
80mm 3D LED Ball |
14mm 3D LED Ball |
|
|
Housing Diameter |
Ø20mm |
Ø50mm |
Ø80mm |
Ø14mm |
|
|
Housing Color |
Milky |
Frosted/clear/silver/golden/icy |
Milky/Clear |
Milky |
|
|
Housing Material |
PC |
Acrylic |
PC |
Acrylic |
|
|
LED Qty |
2 pcs SMD RGB 5050 |
4 pcs SMD RGB 5050 |
3 pcs SMD RGB 5050 |
2 pcs SMD RGB 5050 |
|
|
Input Voltage |
12V DC |
15V DC |
12V DC |
7.5V DC |
|
|
Power |
0.72W/PC |
0.9W/PC |
0.72W/PC |
0.5W/PC |
|
|
Protocol |
SPI/DMX with 1903Decoder |
DMX |
DMX |
SPI/DMX |
|
|
Dimming/Control Mode |
DMX 512/DMX Artnet/DVI/Standalone Control |
||||
|
Protection |
IP53/IP65 |
IP54/IP65 |
IP53/IP65 |
IP53/IP65 |
|
|
Working Temperature |
-20-+60degree Celsius |
||||
|
Lifespan |
50,000 hours |
||||
|
Weight |
0.0056KG/PC |
0.1KG/PC |
0.18KG/PC |
0.0033KG/PC |
|
|
Guarantee |
2 years |
||||
Ordering Information
|
Model No. |
Details |
|
3D LED Ball |
|
|
LED-3DB14DMX0201 |
DMX 3D ball, diameter is 14mm, 360degree viewing, 2pcs SMD RGB 5050, DC7.5V, 0.5W/PC, manual address, IP53/65. milky cover is available. |
|
LED-3DB20SPI0401 |
SPI 3D ball, diameter is 20mm, 360degree viewing, 2pcs SMD RGB 5050, DC12V, 0.72W/PC, IP53/65. milky cover is available. |
|
LED-3DB50DMX0401 |
DMX 3D ball, diameter is 50mm, 360degree viewing, 2x2pcs SMD RGB 5050, DC15V, 1W/PC, manual address, IP54/65. clear / milky /icy / silver / gold cover is available. ( price from 6-10USD for different cover) |
|
LED-3DB80DMX0301 |
DMX LED ball, diameter is 80mm, 360degree viewing, 3pcs SMD RGB 5050, DC12V, 0.72W/PC, manual address, IP53/65. milky cover is available. |
|
LED-MB150DMX0601 |
DMX magic ball, diameter is 15cm, 360degree viewing, 6pcs SMD RGB 5050, DC24V, 1.44W/PC, manual address, IP65. milky cover. |
|
LED-MB200DMX1201 |
DMX magic ball, diameter is 20cm, 360degree viewing, 12pcs SMD RGB 5050, DC24V, 2.88W/PC, manual address, IP65. milky cover. |
|
LED-MB300DMX1201 |
DMX magic ball, diameter is 30cm, 360degree viewing, 12pcs SMD RGB 5050, DC24V, 2.88W/PC, manual address, IP65. milky cover. |
|
LED-MB400DMX1801 |
DMX magic ball, diameter is 40cm, 360degree viewing, 18pcs SMD RGB 5050, DC24V, 4.3W/PC, manual address, IP65. milky cover. |
|
LED-MB500DMX1801 |
DMX magic ball, diameter is 50cm, 360degree viewing, 18pcs SMD RGB 5050, DC24V, 4.3W/PC, manual address, IP65. milky cover. |
|
Controller and Power Supply |
|
|
HLG-240H-12/15/24 |
Meanwell 240W, DC 12V/15V/24V output, IP65 / IP67 |
|
HLG-320H-12/15/24 |
Meanwell 320W, DC 12V/15V/24V output, IP65 / IP67 |
|
LRS-350-7.5/12/15/24 |
Meanwell 350W, DC 7.5V/12V/15V/24V output, indoor |
|
RSP-320-7.5/12/15/24 |
Meanwell 320W, DC 24V output, indoor with PFC |
|
LED-01SC |
DMX LED Controller, SD card offline, 1* 512 CH |
|
LED-ANC-4X512 |
DMX ArtNet Node, 1x512ch, compatible with madrix software |
|
LED-ANC-12X512 |
DMX ArtNet Node, 12x512ch, compatible with madrix software |
|
LED-ANC-20X512 |
DMX ArtNet Node, 20x512ch, compatible with madrix software |
|
LED-ANC-30X512 |
DMX ArtNet Node, 30x512ch, compatible with madrix software |
|
LED-ANC-8X512 |
DMX ArtNet Node, 8x512ch, compatible with madrix software |
|
LED-ANC-16X512 |
DMX ArtNet Node, 16x512ch, compatible with madrix software |
|
|
1, DVI Master LED Controller PC connected |
|
LED-DVI-S4 |
1, 4 Port Slave led controller with rainproof housing |
|
IA-SOFT-001001 |
Madrix key basic V3.x, 16x512 DMX channels |
|
IA-SOFT-001012 |
Madrix key DVI V3.x, DVI only, support MAX 307200 DVI pixels |
|
IA-SOFT-001002 |
Madrix key professional V3.x, 64x512 DMX channels and DVI 786432pixels |
|
IA-SOFT-001008 |
Madrix key ultimate V3.x , 256x512 DMX channels and DVI 1310720pixels |
|
Cables |
|
|
LED-BT(15)4M(15)4F(15)2M |
Black / white color,4pin male, 4pin female,2pin male, 15 cm from center to the end |
|
LED-BT(15)4M(15)4F(15)4F |
Black color, 4pin male, 4pin female,4pin female, 15cm from center to side. |
|
LED-BI(25)2FB |
Black / white color, 25cm, 2pin female, 25 cm length |
|
LED-BI(500)3XLRFB |
5M cable, 3 pin XLR female to bare cable, ( can do black cable same as the pixel cable, or ethernet cable) from T connector to the 8way out DVI-DMX slave controller |
|
LED-BI(100)4M4F |
1M extension cable, Black color, 4pin male to 4pin female ( Length is customized) |
|
5TCable |
5 T end, each T line cable can connected with 5 strings, 121/5=25 pcs T line cable needed |
