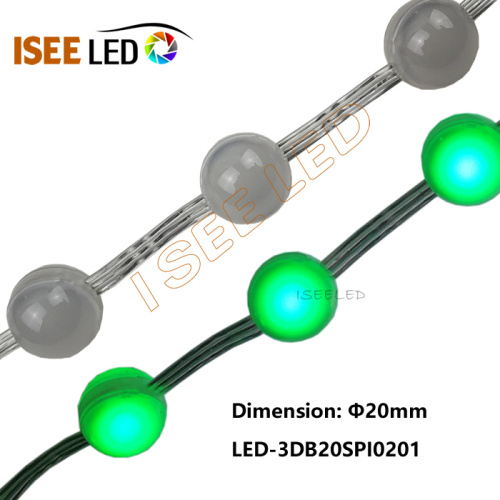

3D 20MM LED Ball Bead String Light
Item No.: LED-3DB20SPI0201
3D Bead string light is 20mm diameter LED ball bead light
20mm LED Ball String Light is 3D illuminate structure or hanging led ball for 3D led cube, and also for decoration as background led lighting.
ISEELED company have the 14mm, 20mm, 50mm and 80mm diameter versions for your different postion project
Each 20MM LED Bead Light have 2pcs smd rgb 5050, DC12V working voltage
The LED Ball String Light is SPI protocol, and can be controlled by DMX512 controller with SPI converter

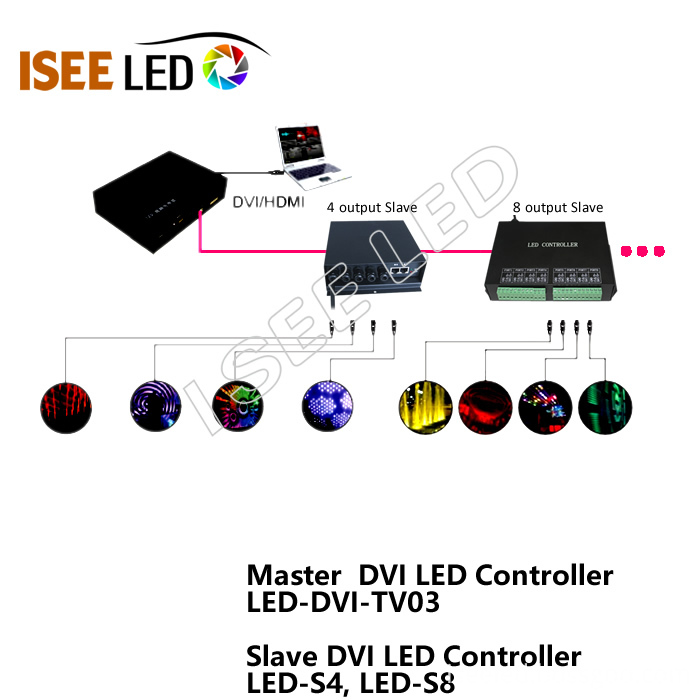

Two solutions for your reference:
1) SPI 3D LED Ball +Decoder +DMX Artnet controller + Madrix software
2) SPI 3D LED Ball + Nebula Controller + Madrix software
Customized introduction
the minimum pitch (center to center) of 20mm led string light is 5CM, and max 80pcs led ball per string.
Only need power from one end, max length 4M, which means when you do 10CM pitch, you can get max 40 pcs 20mm diameter led ball per string.
Parameters
Model
LED-3DB20SPI0201
LED-3DB50DMX0401
LED-3DB80DMX0301
LED-3DB14DMX0201
Product Name
20mm 3D LED Ball
50mm 3D LED Ball
80mm 3D LED Ball
14mm 3D LED Ball
Housing Diameter
Ø20mm
Ø50mm
Ø80mm
Ø14mm
Housing Color
Milky
Frosted/clear/silver/golden/icy
Milky/Clear
Milky
Housing Material
PC
Acrylic
PC
Acrylic
LED Qty
2 pcs SMD RGB 5050
4 pcs SMD RGB 5050
3 pcs SMD RGB 5050
2 pcs SMD RGB 5050
Input Voltage
12V DC
15V DC
12V DC
7.5V DC
Power
0.72W/PC
0.9W/PC
0.72W/PC
0.5W/PC
Protocol
SPI/DMX with 1903Decoder
DMX
DMX
SPI/DMX
Control Mode
DMX 512/DMX Artnet/DVI/Standalone Control

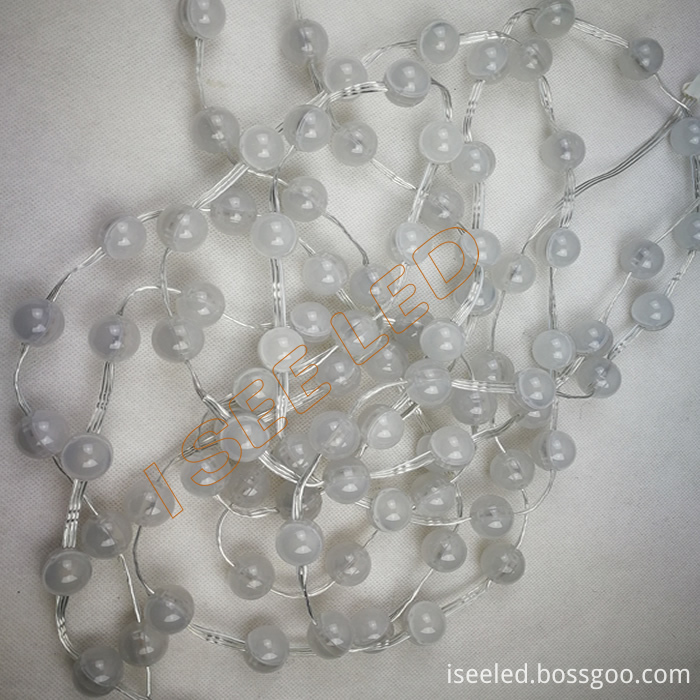

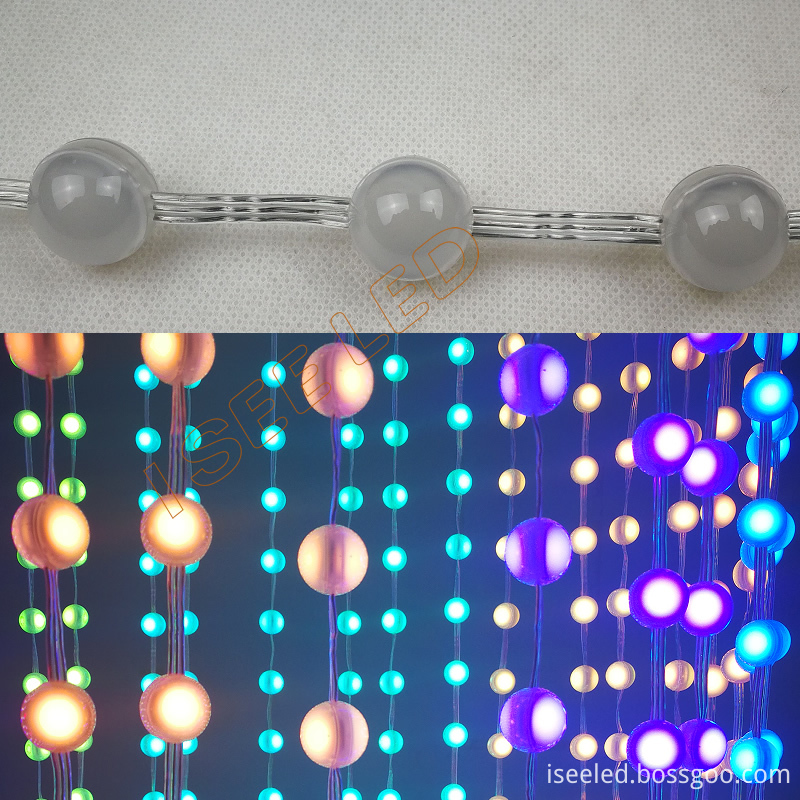

Photo Show
ISEELED Service
1, Fast response.
2, Professional pre-sales consulting.
3, Good after-sales service.
4, ODM/OEM.
5, Fast lead time, most orders can be finished in two weeks.
