Diameter 40mm 50mm DMX Led RGB Ball Light
We usually make 20pcs led ball per string, but the quantity and pixel pitch can be customized.
1 Led Ball 1 Pixel, DMX512 Protocol, Addressable.
Description of DMX 3d Ball
1.ɸ50mm and ɸ40mm LED Ball, Milky/Clear/Icy/Silver/Gold cover giving 360° viewing
2.Standard DMX 512 control, manual addressing .Customized pitch with customized ball QTY/String
3.High Brightness and long service life LED, 4 leds in one LED ball
4.Easy to install, Max Length 5M/ string
Application: adapted for all kinds of installation methods including, stage, club, concert and so on.

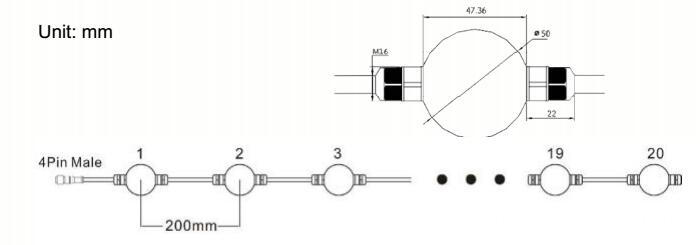

Parameters of DMX 3d Ball
|
Model NO. |
LED-3DB50DMX0401 |
LED-3DB40DMX0401 |
|
Housing Diameter |
50mm |
40mm |
|
LED type |
SMD RGB 5050 |
SMD RGB 3535 |
|
LED QTY |
4 Leds |
4 Leds |
|
Emitting angle |
360 degrees |
360 degrees |
|
Color |
■■■ RGB full color |
■■■ RGB full color |
|
Gray Scale |
256 |
256 |
|
Operating Voltage |
DC 15V |
|
|
Power |
MAX=1W |
|
|
Control Protocol |
DMX512 |
|
|
Control Mode |
DMX Artnet / DMX DVI / Standalone Control |
|
|
Housing Color |
Frosted/Clear/Sliver/Golden/Icy |
|
|
Protection |
IP 54/ IP65 |
|
|
LED Source Life |
50,000 hours, based on test data of LED manufacturer |
|
|
Note |
Pitch and Qty for each string can be customized |
|

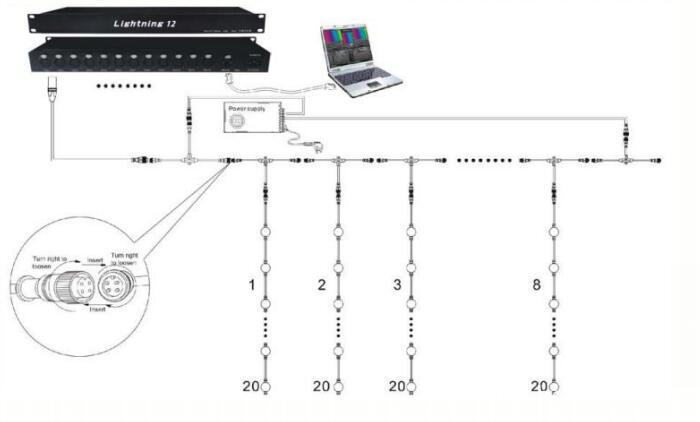

Connection Guide:

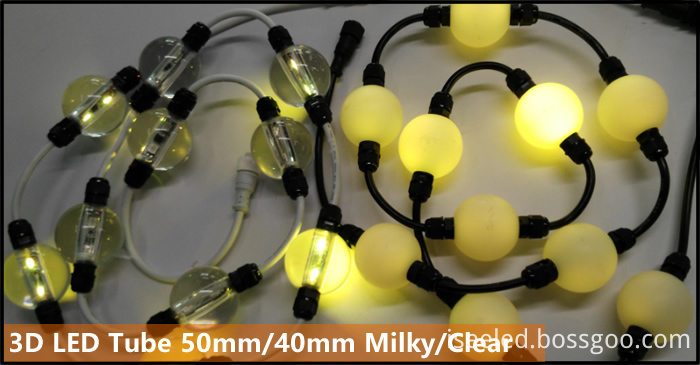

Photo show
