Reserve motoren Battery 2V100Ah Emergency Power Battery

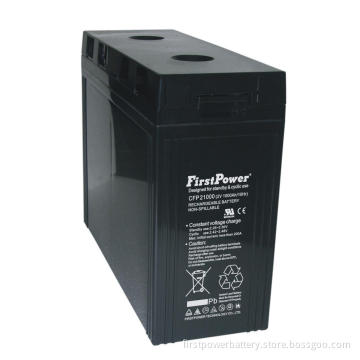

Telecommunication power battery (CFP21000, 2v, 1000Ah)
FirstPower brings you not only reliable battery and technology, but also excellent services and real value you shall expect and enjoy.We welcome orders with "FirstPower" brand; We are also flexible to accept orders on OEM basis. Contact us now! Your partnership with FirstPower will prove worthy of it.

International certifications:
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
 CFP Series Battery General Features
Nonspillable
Sealed and Maintenance-free Operation
High Quality and High Reliability
Exceptional Deep Discharge Recovery
Low Self-discharge
Long Service Life
Solid Copper Terminals
Tank-formed Plates
Computer-aided Design and Manufacturing
UL, CE, VdS Approved

Typical Applications
Telecommunication equipment
Electronic instruments
Fire alarm
Security devices
UPS power supply
Emergency lighting

Specifications

Nominal Voltage			2 V
Capacity (25ºC)	10HR(1.80V)		1000 Ah
	3HR(1.75V)		765Ah
	1HR(1.75V)		565Ah
Dimension	Length		475±2mm (18.70inch)
	Width		175±2mm (6.89inch)
	Height		330±2mm (12.99inch)
	Total Height		367±2mm (14.45inch)
Approx. Weight			61kg (134.5lbs)±3%
Terminal type			T10
Internal resistance (Fully charged, 25ºC)			Approx. 0.28mΩ
Capacity affected by temperature (10HR)		40ºC	102%
		25ºC	100%
		0ºC	85%
		-15ºC	65%
Self-discharge (25ºC)		3 month	Remaining Capacity: 91%
		6 month	Remaining Capacity: 82%
		12 month	Remaining Capacity: 65%
Nominal operating temperature			25ºC±3ºC(77ºF±5ºF)
Operating temperature range		Discharge	-15ºC~50ºC(5ºF~122ºF)
		Charge	-10ºC~50ºC(14ºF~122ºF)
		Storage	-20ºC~50ºC(-4ºF~122ºF)
Float charging voltage(25ºC)			2.25 to 2.30V Temperature compensation: -3mV/ºC
Cyclic charging voltage(25ºC)			2.42 to 2.48V Temperature compensation: -5mV/ºC
Maximum charging current			200A
Terminal material			Copper
Maximum discharge current			7500A(5 sec.)
Designed floating life(20ºC)			20 years

Absorbent glass mat technology;
Recognized by UL & CE;
ABS container.
Dimensions

Terminal: M8

Constant Current Discharge Characteristics (A, 25ºC)

F.V/TIME	30min	60min	2h	3h	4h	5h	6h	8h	10h	20h	24h
1.60V	900	600	365	260	209	182	156	122	102	53.4	46.3
1.65V	882	591	363	259	208	180	155	122	102	53.3	46.2
1.70V	855	576	360	257	206	179	154	121	101	53.2	46.1
1.75V	834	565	355	255	205	178	153	120	101	52.9	45.8
1.80V	804	547	346	247	199	173	148	116	100	52.5	45.5

Constant Power Discharge Characteristics (Watt, 25ºC)

F.V/TIME	30min	60min	2h	3h	4h	5h	6h	8h	10h	20h	24h
1.60V	1683	1140	705	510	410	358	307	244	203	107	93.1
1.65V	1649	1123	701	507	407	356	306	242	202	107	92.9
1.70V	1599	1094	695	503	405	353	304	240	202	106	92.6
1.75V	1560	1073	684	500	402	351	301	239	200	106	92.1
1.80V	1503	1040	667	485	390	340	292	232	199	105	91.5

Note: The above characteristics data can be obtained within three charge/discharge cycles
