Reserve Battery 12V120Ah Sealed and Maintenance-Free
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

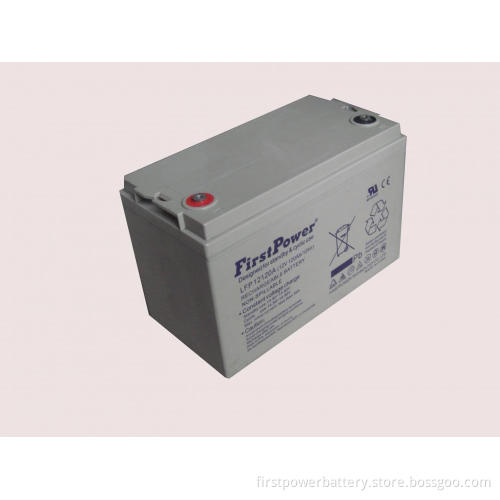

Telecom Systems battery(LFP12120A)
FirstPower Technology Co., Ltd. was set up as a manufacturer of rechargeable batteries in 1993.
FirstPower brings you not only reliable battery and technology, but also excellent services and real value you shall expect and enjoy.We welcome orders with "FirstPower" brand; We are also flexible to accept orders on OEM basis. Contact us now! Your partnership with FirstPower will prove worthy of it.
International certifications:
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
General Features
Nonspillable
Sealed and Maintenance-free Operation
High Quality and High Reliability
Exceptional Deep Discharge Recovery
Low Self-discharge
Long Service Life
Solid Copper Terminals
Tank-formed Plates
Computer-aided Design and Manufacturing
Typical Applications
Telecommunication equipment
Electronic instruments
Fire alarm
Security devices
UPS power supply
Emergency lighting
Specifications
Absorbent glass mat technology;
Nominal Voltage
12 V
Capacity
(25ºC)
10HR(10.8V)
120 Ah
5HR(10.5V)
96.5Ah
1HR(9.60V)
71.3Ah
Dimension
Length
330±2mm (12.99inch)
Width
171±2mm (6.73inch)
Height
214±2mm (8.43inch)
Total Height
T5: 224±2mm (8.82inch)
T9: 220±2mm (8.66inch)
Approx. Weight
32.5kg (71.7lbs)±4%
Terminal type
T5/T9/T11
Internal resistance
(Fully charged, 25ºC)
Approx. 3.5mΩ
Capacity affected by temperature (10HR)
40ºC
102%
25ºC
100%
0ºC
85%
-15ºC
65%
Self-discharge
(25ºC)
3 month
Remaining Capacity: 91%
6 month
Remaining Capacity: 82%
12 month
Remaining Capacity: 65%
Nominal operating temperature
25ºC±3ºC(77ºF±5ºF)
Operating temperature range
Discharge
-15ºC~50ºC(5ºF~122ºF)
Charge
-10ºC~50ºC(14ºF~122ºF)
Storage
-20ºC~50ºC(-4ºF~122ºF)
Float charging voltage(25ºC)
13.50 to 13.80V
Temperature compensation:
-18mV/ºC
Cyclic charging voltage(25ºC)
14.50 to 14.90V
Temperature compensation:
-30mV/ºC
Maximum charging current
36A
Terminal material
Copper
Maximum discharge current
800A(5 sec.)
Designed floating life(20ºC)
12 years
Recognized by UL & CE;
ABS container.
Dimensions
Terminal:T9(M6)
Constant Current Discharge Characteristics (A, 25ºC)
Constant Power Discharge Characteristics (Watt, 25ºC)
F.V/TIME
15min
30min
60min
2h
3h
4h
5h
6h
8h
10h
20h
9.60V
190
115
71.3
40.2
28.1
23.0
19.6
17.2
13.5
11.2
5.88
9.90V
185
113
70.2
40.0
27.9
22.9
19.5
17.1
13.4
11.2
5.87
10.2V
178
109
68.4
39.6
27.7
22.7
19.4
16.9
13.3
11.1
5.85
10.5V
172
107
67.1
39.0
27.5
22.6
19.3
16.8
13.2
11.1
5.82
10.8V
163
103
65.0
38.0
26.7
21.9
18.7
16.3
12.8
11.0
5.78
Note: The above characteristics data can be obtained within three charge/discharge cycles.
F.V/TIME
15min
30min
60min
2h
3h
4h
5h
6h
8h
10h
20h
9.60V
2083
1290
813
465
330
270
232
203
160
134
70.5
9.90V
2033
1264
801
463
328
269
231
202
159
133
70.4
10.2V
1958
1226
780
459
326
267
229
200
158
133
70.2
10.5V
1892
1196
765
452
323
265
228
199
157
132
69.8
10.8V
1792
1152
741
440
314
257
221
193
152
131
69.3
