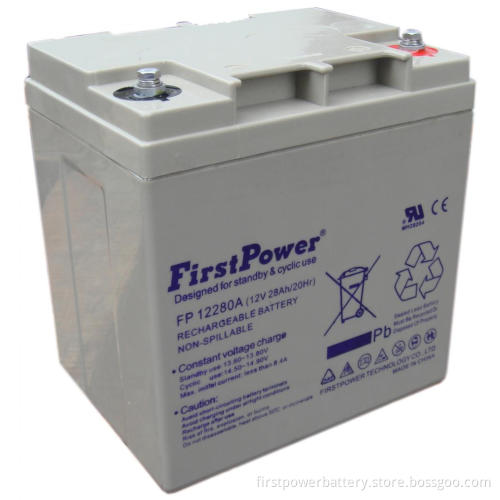

Reserve Battery Main Power 12V Battery12V26AH
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | china |
---|---|
Productivity: | 2000, 000kvah/ Year |
Supply Ability: | 2000, 000kvah/ Year |
Payment Type: | L/C,T/T,D/P |
Incoterm: | FOB,CFR,CIF |
Certificate: | iso,UL,CE |
Transportation: | Ocean,Land |
AGM: As stated earlier, the Absorbed Glass Matte construction allows the electrolyte to be suspended in close proximity with the plate`s active material. In theory, this enhances both the discharge and recharge efficiency. Actually, the AGM batteries are a variant of Sealed VRLA batteries. This particular style has recently become very popular in many engine start and power sports applications.
Specifications
Nominal Voltage |
12 V |
||
Capacity (25℃) |
20HR(10.5V) |
26 Ah |
|
10HR(10.5V) |
24.2Ah |
||
1HR(9.60V) |
16.3Ah |
||
Dimension |
Length |
165±2mm (6.50inch) |
|
Width |
125±1mm (4.92inch) |
||
Height |
175±2mm (6.89inch) |
||
Total Height |
T6: 182±2mm (7.17inch) |
||
T8: 175±2mm (6.89inch) |
|||
Approx. Weight |
8.3kg (18.3lbs)±4% |
||
Terminal type |
T6/T8 |
||
Internal resistance (Fully charged, 25℃) |
Approx. 12mΩ |
||
Capacity affected by temperature (20HR) |
40℃ |
102% |
|
25℃ |
100% |
||
0℃ |
85% |
||
-15℃ |
65% |
||
Self-discharge (25℃) |
3 month |
Remaining Capacity: 91% |
|
6 month |
Remaining Capacity: 82% |
||
12 month |
Remaining Capacity: 65% |
||
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
Charge |
-10℃~50℃(14℉~122℉) |
||
Storage |
-20℃~50℃(-4℉~122℉) |
||
Float charging voltage(25℃) |
13.60 to 13.80V Temperature compensation: -18mV/℃ |
||
Cyclic charging voltage(25℃) |
14.50 to 14.90V Temperature compensation: -30mV/℃ |
||
Maximum charging current |
7.8A |
||
Terminal material |
T6: Lead, T8: Copper |
||
Maximum discharge current |
390A(5 sec.) |
||
Designed floating life(20℃) |
10years |
||
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container
Constant Current Discharge Characteristics (A, 25℃)
F.V/TIME |
10min |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
8h |
10h |
20h |
9.60V |
60.0 |
47.5 |
26.5 |
16.3 |
9.24 |
6.63 |
5.30 |
4.51 |
2.92 |
2.45 |
1.32 |
9.90V |
58.2 |
46.4 |
26.0 |
16.0 |
9.18 |
6.59 |
5.27 |
4.48 |
2.90 |
2.44 |
1.31 |
10.2V |
55.8 |
44.7 |
25.2 |
15.6 |
9.10 |
6.55 |
5.24 |
4.45 |
2.88 |
2.43 |
1.31 |
10.5V |
53.4 |
43.1 |
24.6 |
15.3 |
8.96 |
6.50 |
5.20 |
4.42 |
2.86 |
2.42 |
1.30 |
10.8V |
50.4 |
40.9 |
23.7 |
14.8 |
8.74 |
6.31 |
5.04 |
4.29 |
2.77 |
2.37 |
1.27 |
Constant Power Discharge Characteristics (Watt, 25℃)
F.V/TIME |
10min |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
8h |
10h |
20h |
9.60V |
677 |
542 |
304 |
188 |
108 |
78.8 |
63.2 |
53.8 |
35.0 |
29.5 |
15.8 |
9.90V |
656 |
529 |
298 |
185 |
107 |
78.3 |
62.8 |
53.5 |
34.8 |
29.3 |
15.8 |
10.2V |
629 |
509 |
289 |
181 |
106 |
77.8 |
62.4 |
53.1 |
34.6 |
29.2 |
15.7 |
10.5V |
602 |
492 |
282 |
177 |
105 |
77.2 |
61.9 |
52.8 |
34.3 |
29.0 |
15.6 |
10.8V |
569 |
466 |
271 |
172 |
102 |
74.9 |
60.1 |
51.2 |
33.3 |
28.4 |
15.3 |
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
FP Series Battery General Features
- Nonspillable
- Sealed and Maintenance-free Operation
- High Quality and High Reliability
- Exceptional Deep Discharge Recovery
- Low Self-discharge
- Long Service Life
- Solid Copper Terminals
- Tank-formed Plates
- Computer-aided Design and Manufacturing
- UL, CE, VdS Approved
Typical Applications
- Telecommunication equipment
- Electronic instruments
- Fire alarm
- Security devices
- UPS power supply
- Emergency lighting
