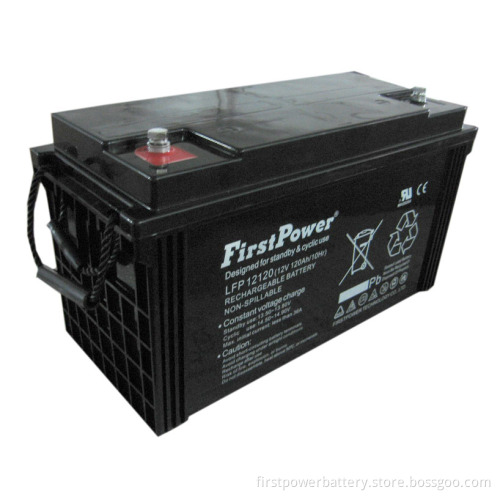

Solar Battery Charger 12V125Ah
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |
Specifications
|
Nominal Voltage |
12 V |
||
|
Capacity (25℃) |
10HR(10.8V) |
125 Ah |
|
|
5HR(10.5V) |
109Ah |
||
|
1HR(9.60V) |
77Ah |
||
|
Dimension |
Length |
436±2mm (17.17inch) |
|
|
Width |
108±2mm (4.25inch) |
||
|
Height |
317±2mm (12.48inch) |
||
|
Total Height |
317±2mm (12.48inch) |
||
|
Approx. Weight |
38kg (83.8lbs)±4% |
||
|
Internal resistance (Fully charged, 25℃) |
Approx. 4.2mΩ |
||
|
Capacity affected by temperature (10HR) |
40℃ |
102% |
|
|
25℃ |
100% |
||
|
0℃ |
85% |
||
|
-15℃ |
65% |
||
|
Self-discharge (25℃) |
3 month |
Remaining Capacity: 91% |
|
|
6 month |
Remaining Capacity: 82% |
||
|
12 month |
Remaining Capacity: 65% |
||
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
|
Operating temperature range |
Discharge |
-15℃~70℃(5℉~158℉) |
|
|
Charge |
-10℃~70℃(14℉~158℉) |
||
|
Storage |
-20℃~70℃(-4℉~158℉) |
||
|
Float charging voltage(25℃) |
13.50 to 13.80V Temperature compensation: -18mV/℃ |
||
|
Cyclic charging voltage(25℃) |
14.50 to 14.90V Temperature compensation: -30mV/℃ |
||
|
Maximum charging current |
37.5A |
||
|
Terminal material |
Copper |
||
|
Maximum discharge current |
1000A(5 sec.) |
||
|
Designed floating life(20℃) |
13~15 years |
||
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
|
F.V/TIME |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
|
9.60V |
202 |
123 |
77.5 |
45.7 |
31.9 |
26.1 |
22.3 |
19.5 |
15.3 |
12.7 |
6.68 |
|
9.90V |
197 |
120 |
76.3 |
45.4 |
31.7 |
26.0 |
22.2 |
19.4 |
15.2 |
12.7 |
6.67 |
|
10.2V |
190 |
116 |
74.4 |
45.0 |
31.5 |
25.8 |
22.0 |
19.3 |
15.1 |
12.7 |
6.65 |
|
10.5V |
184 |
114 |
72.9 |
44.3 |
31.3 |
25.6 |
21.9 |
19.1 |
15.0 |
12.6 |
6.61 |
|
10.8V |
174 |
109 |
70.7 |
43.2 |
30.3 |
24.9 |
21.2 |
18.6 |
14.6 |
12.5 |
6.56 |
Constant Power Discharge Characteristics (Watt, 25℃)
|
F.V/TIME |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
|
9.60V |
2219 |
1374 |
884 |
529 |
375 |
307 |
264 |
231 |
182 |
152 |
80.2 |
|
9.90V |
2166 |
1347 |
870 |
526 |
373 |
306 |
262 |
229 |
181 |
152 |
80.0 |
|
10.2V |
2086 |
1306 |
848 |
521 |
370 |
303 |
260 |
228 |
179 |
151 |
79.8 |
|
10.5V |
2015 |
1274 |
831 |
513 |
368 |
301 |
259 |
226 |
178 |
150 |
79.3 |
|
10.8V |
1909 |
1227 |
806 |
500 |
356 |
292 |
251 |
219 |
173 |
149 |
78.8 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
Typical Applications
Fire alarm systems
Solar lighting equipment
Outdoor telecommunication equipment
