Protect sprinkler systems heat mat

• Frost protection of water pipes and condensate/drainage pipes
• Protect sprinkler systems
• Maintain process temperatures
• Ice and snow melting on roofs and in gutters
• Ice prevention in downpipes and waste pipes
• Temperature maintenance of air ducts extracting dust, or of containers for dry food, to prevent condensation build-up and blockages

1. Specifications

Initial resistance:798-976Ω,standard resistance 878Ω

Power:each section 16.4±1.64 W

high voltage resistance:≥1800Vac/0.5mA/2s(dotting test)

Insulation resistance:≥100MΩ500Vdc

Product temperature:41-51 degree(when the the environment temperature is 24 degrees overhead the bottom)

The effect of stripping force:≥5 N (Newton)

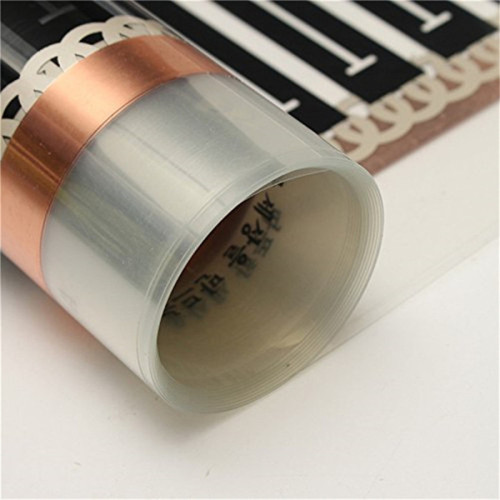

Construction.Size:

1.size:T0.5±0.05*W120±2mm*L152±1.5m

2.First printing silver line(W11mm,Each section paper feed 505mm) then printing fever carbon paste, copper foil for T0.035 * W9.5 mm hard bare copper foil, coated on the surface of solid

3.Printing related product information and customer LOGO on two side of each film

We appreciated your interest in our product. Please advise us below info. For our reference and get contact with us to find your best heating solution. size, max temperature, voltage, wattage, Application

Shipment:
a) For Sample order, we use courier like DHL,UPS,TNT,Fedex,EMS,customer also can assign the courier.
b) For large order, we could use courier or boat cargo or other special forwarder.
c) Customers can also assign the forwarder to make the transportation.
Trade Terms:
1, Payment: TT, Western Union, Paypal, L/C.
2, Sample can be supplied.
3, Shipping freight are quoted under your requests.
4, Loading port: Shenzhen, China.
5, Discounts are offered based upon your quantities.

Certificate:

Factory Introduction:
Shenzhen Xinghongchang Electric Co., Ltd was built in 1996,is a professional heating element manufacturer where located in Huizhou. With more than 20 years experiences of producing heating elements, we specialized in the field of far infrared heating film and heat pads for pet and reptile, leading a innovation energy source of heating systems.
With our R&D team and professional facility, we are able to manufacture, export and supply to our customers with excellent quality Far Infrared Heating Film.We had certificated in BV, ISO9001/ 14001 / 18000.And Our product already got approval of  CE,RoHS, Ul, ETL, etc.
The high quality and competitive price of XHC products make us to be the close partner of world famous brand suppliers, such as , Samsung, LG, Simfer, Kohler,Panasonic, BROAN,etc.
We are 100%willing and interesting in grow up with our each clients together.
