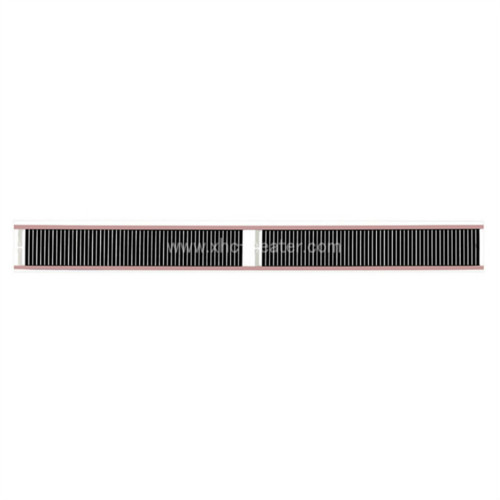

Custom-made Toilet Seat Energy-saving Heating Film

Product Description

This toilet seat warmer cover in simple design matches well with any bathroom toilet. The flexible and waterproof far infrared heating film in quality manufacturing provides superb durability . With far infrared radiation  , it can be heated up in just few minutes ,provides you with warmth and comfortable.  Additionally, human body can benefit from far infrared radiation which known as sun radiation. It can expand blood vessel, relieve muscles pain, accelerate the metabolism of human body and improve the effect of micro circulation system. Moreover, this innovative heating elements use far less energy than traditional ones.This low comsumption and environment-friendly heating elements  will take the place of traditional ones someday in the future

Start your environmentally friendly product for much healthier daily life style now

Product Application

Application in all kinds of toilet seat with heated function

Any shape is available

Customized service is available

Product Specification

Input voltage                   AC 12V

Initial resistance                5.7-6.3Ω,standard resistance 6Ω
Power                            24W±5%
high voltage resistance   500V/0.5mA/2s

Insulation resistance       ≥100MΩ500Vdc

lead strain                        ≥3Kgf/1min  Lead/terminal don't fall off

Construction.Size

1.Size:0.35*434.7*386.2mm

2. Lead: UL1430 # 20 white PVC line

3. With Emerson G4A01077C fuse, need PVC casing seal

4. The lead soldering point need to be seal  after sticking imide film

5. With 3m9448a double-sided adhesive on the back

6. With JST SSF - 21 t - P1.4 terminals and SLP - 02 v white connectors

7.Before and after welding resistance value should be recorded in the corresponding position

8.Need to spray printing product model, the information such as order number, and date of production

Certificate

Shipment:
a)For Sample order, we use courier like DHL,UPS,TNT,Fedex,EMS,customer also can assign the courier.
b)For large order, we could use courier or boat cargo or other special forwarder.
c)Customers can also assign the forwarder to make the transportation.

Trade Terms:
1, Payment: TT, Western Union, Paypal, L/C.
2, Sample can be supplied.
3, Shipping freight are quoted under your requests.
4, Loading port: Shenzhen, China.
5, Discounts are offered based upon your quantities.

We appreciated your interest in our product

Please advise us below info. for our reference and get contact with us to find your best heating solution.

Size

Max temperature,

Voltage

Wattage

Application

Product Drawing Draft(if available)
