PET Heating Film Parts for Toilet Seat Warming

Product Description

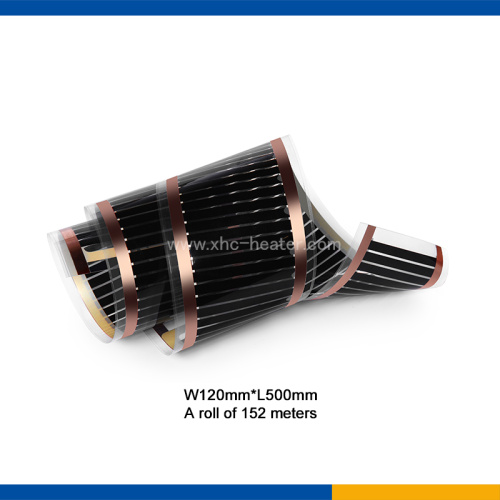

Xinghongchang offers you a green way of heating method- Far infrared heating film for toilet seats heating.

As far infrared heating film is a new kind of heating technology ,it becomes more and more popular in heating field because of following advantages.

1. Carbon crystal printing, with far infrared radiant heat.

2. With far infrared radiation property, health physiotherapy functions.

3. Emitted far infrared radiation,expand blood vessel, relieve muscles pain.

4. Design for toilet seat heating.Application in home,office,hotel and restaurant ,etc.

5. Energy-saving and environmental protection.

6. High thermal conversion and low consumption

7. With flexible property ,easy to install

8. OEM project is acceptable

Why client chose us!

No.1 . We have more than 20 years experiences in all kinds of heating elements.

No. 2. We had imported the "clean -room"to make sure the goods performed in 100% perfect.

No. 3.  We have our own designer and strongly R&D team to ensure 100% ability offer good & qualified designs and products according to clients requirement.Quality stuff, 10 years warranty,over 50 years life span.

No. 4. We had cooperate with good brands and  successful experiences with the worldwide biggest client. Such as Panasonic,Samsung, LG, Panasonic, Simfer, Kohler,etc.

No. 5. Our product already got approval of  CE,RoHS, Ul, ETL, etc.

No. 6. We are 100% willing and interesting grewing up with our each clients together.

Product Application

Application in all kinds of toilet seat with heated function

Any shape is available

Customized service is available

Product Specification

Input voltage                        AC 12V

Initial resistance                5.7-6.3Ω,standard resistance 6Ω
Power                                   24W±5%
high voltage resistance   500V/0.5mA/2s

Insulation resistance       ≥100MΩ500Vdc

lead strain                        ≥3Kgf/1min  Lead/terminal don't fall off

Construction.Size

1.Size:0.35*434.7*386.2mm

2. Lead: UL1430 # 20 white PVC line

3. With Emerson G4A01077C fuse, need PVC casing seal

4. The lead soldering point need to be seal  after sticking imide film

5. With 3m9448a double-sided adhesive on the back

6. With JST SSF - 21 t - P1.4 terminals and SLP - 02 v white connectors

7.Before and after welding resistance value should be recorded in the corresponding position

8.Need to spray printing product model, the information such as order number, and date of production

Certificate

We appreciated your interest in our product

Please advise us below info. for our reference and get contact with us to find your best heating solution.

Size

Max temperature,

Voltage

Wattage

Application

Product Drawing Draft(if available)
