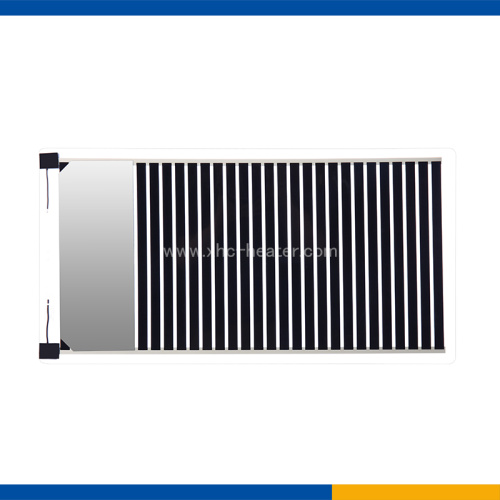

Desigh for home underfloor heating mat

An underfloor heating mat lets you enjoy the warmth and comfort of heated floors without going to the trouble of replacing your existing flooring.

UnderFloor Mat installs between floor joists; there's no need to replace the floor you want to heat.
It works under any type of flooring, including nail-down hardwood.
With hard-surface flooring, you can expect Underfloor Mat to increase the floor temperature by as much as 15°F. With carpet, the increase in warmth would typically range from 6°F to 10°F.

Product Application

Application in ceramic tile floor heating

Desigh for home ,office ,study scientific research place usage,anywhere needed heating system

Product Specification

Input voltage                    AC 220V

Initial resistance               293-358Ω,standard resistance 322Ω
Power                               150W±10%
high voltage resistance    3750V/0.5mA/2s

Insulation resistance        ≥100MΩ500Vdc

lead strain                        ≥3Kgf/1min  Not shed

Construction.Size

1.Size:750*750mm

2. With black male female plug wire, the leakage line length 200 mm

3. The connection position need to be glued, hot melt adhesive insulation

4. Cover with 0.024 PET aluminum plating pre-coating film

Shipment:
a)For Sample order, we use courier like DHL,UPS,TNT,Fedex,EMS,customer also can assign the courier.
b)For large order, we could use courier or boat cargo or other special forwarder.
c)Customers can also assign the forwarder to make the transportation.

Trade Terms:
1, Payment: TT, Western Union, Paypal, L/C.
2, Sample can be supplied.
3, Shipping freight are quoted under your requests.
4, Loading port: Shenzhen, China.
5, Discounts are offered based upon your quantities.

Certificate

We appreciated your interest in our product

Please advise us below info. for our reference and get contact with us to find your best heating solution.

Size

Max temperature,

Voltage

Wattage

Application

Product Drawing Draft(if available)
