3.2V 80Ah LiFePO4 rechargeable battery batteries
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen/China |
|---|---|
| Productivity: | 10,000pcs/day |
| Supply Ability: | 10,000pcs/day |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | CE, ROHS, UL, UN38.3, SGS, ISO9001 |
| Transportation: | Ocean,Land,Air |

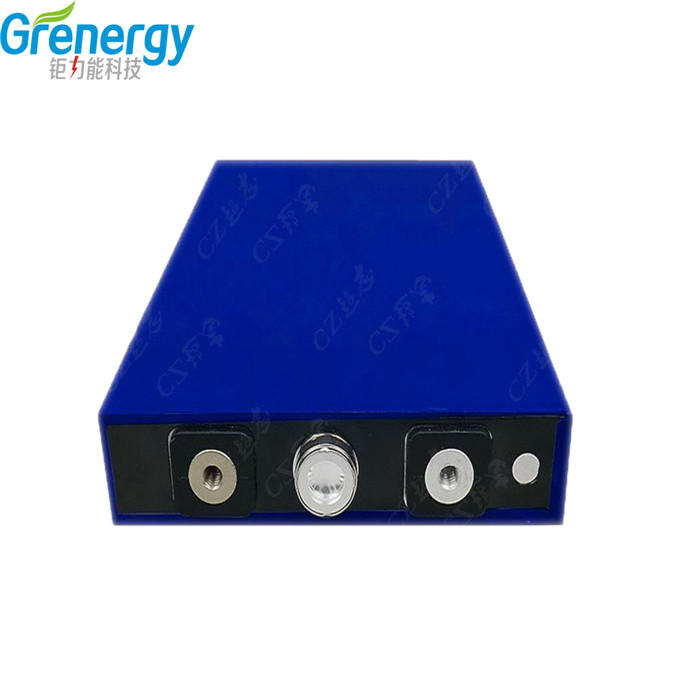

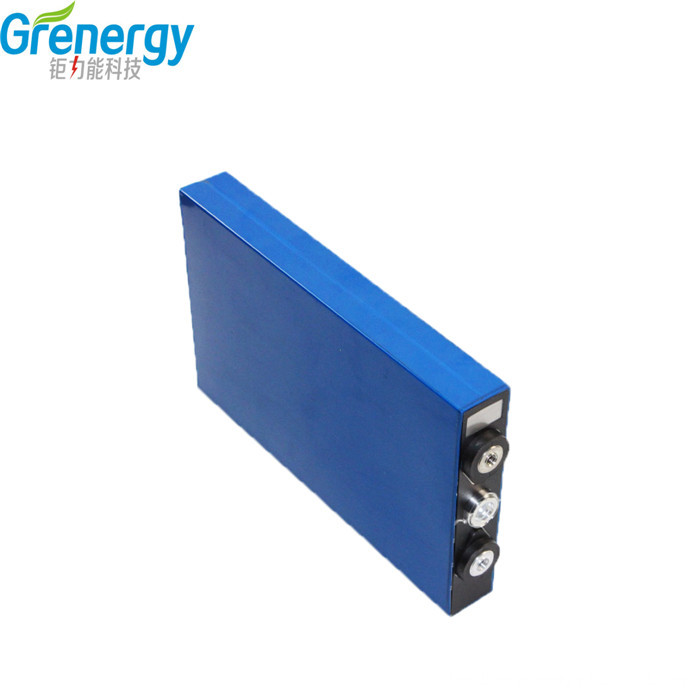

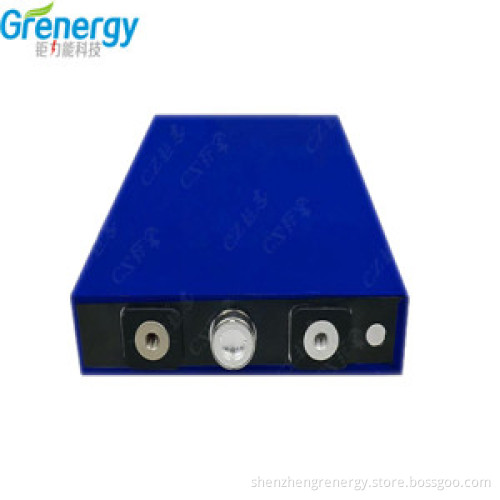

3.2V 80Ah LiFePO4 rechargeable battery batteries
This 3.2V 80Ah LiFePO4 battery cell is our new product, mainly used for solar battery. For the rechargeable batteries, the max charge is 1C, and recommended charge current is 0.5C. LiFePO4 battery is mainly used to replace SLA/GEL/lead acid battery, and enjoy very good feedback in the market. Now, the technology of the 3.8V 80Ah LiFePO4 rechargeable battery batteries is very mature, that the quality is reliable.
|
No. |
Item |
unit |
Parameters |
Remark |
|
|
1 |
Nominal Capacity |
Ah |
100.0 |
Capacity according to standard discharge, After standard charge |
|
|
2 |
Nominal Voltage |
V |
3.2 |
Average Voltage according to standard discharge, After standard charge |
|
|
3 |
Charge Type |
/ |
CC/CV |
/ |
|
|
4 |
Charge Cut-off Voltage |
V |
3.65 |
/ |
|
|
5 |
Discharge Cut-off Voltage |
V |
2.0 |
/ |
|
|
6 |
Charge current |
A |
50 |
constant current |
|
|
7 |
Discharge current |
A |
100 |
constant current |
|
|
8 |
Max. instantaneous discharge current |
A |
300 |
<15S |
|
|
9 |
Weight |
g |
3200 |
/ |
|
|
10 |
Inner Resistance |
mΩ |
<2 |
/ |
|
|
11 |
Dimension(T×W×H) |
mm |
48*173*166mm/70*150*225mm |
/ |
|
|
12 |
Working Temperature |
Charging |
°C |
0~45 |
/ |
|
Discharging |
°C |
-20~60 |
/ |
||
|
13 |
Storage Temperature |
1 month |
°C |
-20~60 |
/ |
|
3 months |
°C |
-20~45 |
/ |
||
|
6 months |
°C |
-20~25 |
/ |
||
|
Atmospheric pressure |
KPa |
86~106 |
/ |
||
|
Relative Humidity |
RH |
25%~85% |
/ |
||
