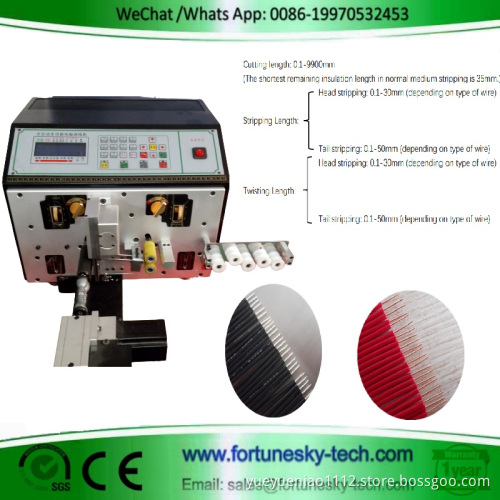

HWN-220 Fully automatic wire cutter and stripping machine
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express
- Port:
- Shemzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 30 pcs per month |
| Supply Ability: | 30 pcs per month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,DDP,Express Delivery,DDU |
| Certificate: | CCC |
| Transportation: | Ocean,Air,Land,Express |
| Port: | Shemzhen |
This most advanced electronic product has more compact structure design, more wires can be processed, and higher precision. All debugging actions are completed in the LCD panel. The model of wire cutter and stripping machine efficiency is more than 30% faster than the traditional model. According to the requirements, the cutting speed can be adjusted (0-9 level) to complete the three sectors stripping requirements.
|
Model No. |
HWN-220 |
HWN-220+T |
|
Dimension |
450x450x360mm |
450x720x360mm |
|
Net. Weight |
40KG |
60KG |
|
Cutting Length |
0.1-9900mm (The shortest remaining insulation length in normal medium stripping is 35mm.) |
|
|
Stripping Length |
Front stripping: 0.1-30mm (depending on type of wire) Rear stripping: 0.1-50mm (depending on type of wire) |
|
|
Twisting Length |
Front stripping: 0.1-30mm (depending on type of wire) Rear stripping: 0.1-50mm (depending on type of wire) |
|
|
Wire Diameter |
AWG16-AWG32 |
|
|
Cutting Error |
0.2mm+Lx0.2% |
|
|
Voltage |
AC 110V-220V (50/60Hz) |
|
|
Power |
Machine stop working:20W, max is 220W. |
|
