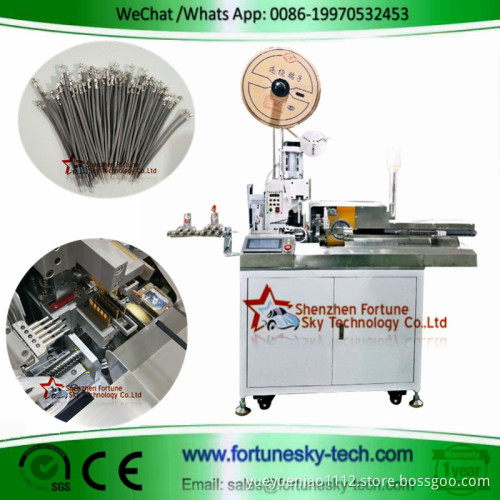

Fully Automatic Five Wires One-end Strip Crimp One-end Strip Twist Tinning Machine

Fully automatic five wires one-end strip crimp one-end strip twist tinning machine is computerized numerical control debugging: knife size, cutting length, stripping length, flux depth, tin depth, all realize digital touch screen operation. its functions: Wire cutting, single-end stripping, double-ends stripping, single-end crimping, single-end twisting, single-end tinning (optional opening and closing)

Feature:

1.Computerized touch screen English/Chinese operation menu,easy to learn and use;

2.Rapid replacement of process and materials,high efficiency,high precision,fast speed and convenient maintenance;
3.The machine adopts servo control and five sets of servo motors (Mitsubishi Servo)

4.Pneumatic components:solenoid valve + cylinder (Taiwan Airtac)

5.Screw guide:Taiwan CPC/Hiwin

6.Color Touch Screen: Kinco (Taiwan)

7.Computerized numerical control debugging: knife size, cutting length,stripping length,flux depth,tin depth,all realize digital touch screen operation.

Specification:

Model No.:HNW-835

Functions:Wire cutting,single-end stripping,double-ends stripping,single-end crimping,single-end twisting,single-end tinning (optional opening and closing)
Cutting length:32mm-650mm (long wire can be customized)

Cutting accuracy:0.2+/-0.02xL

Stripping length:0.1mm-11mm

Wire diameter:0.6mm-3.5mm

Tinning length:1mm-11mm

Twisting length:2mm-10mm

General wire diameter:AWG16-AWG32

Crimping Force:2.0T Terminal Machine

Working speed:
cutting length 100mm,6000 pcs/hour;

cutting length 220mm,5200 pcs/hour

Air pressure:0.5-0.7MPA

Detection device:crimping detection,wire missing detection,wire knotting detection,terminal presence or absence detection.

Blade material:high speed steel

Body size:1500x800x1600mm

Body weight:290KG

Auxiliary Device:terminal waste paper rewinding device

Power supply:AC220 single-phase 8A
