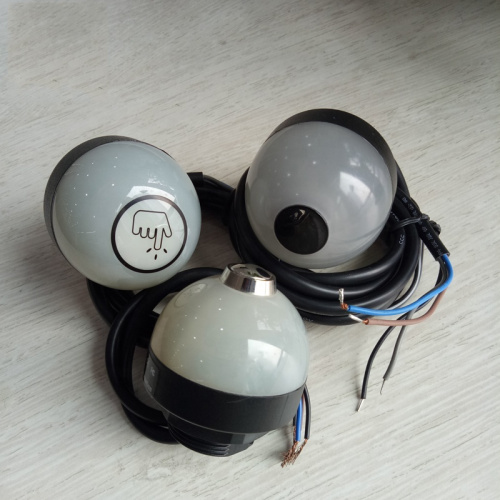

LED indicators picking for Health and Beauty
Increase productivity, accuracy and cost-effectiveness
Considered the fastest, operator-based solution, Pick to Light is an innovative LED light by picking system that visually guides pickers in what to pick and how many. Available for both full and split case applications, Pick to Light device increases productivity, accuracy and cost-effectiveness by reduces walk and seek times, eliminating paperwork and simplifying the picking process.
Power: Less 5W;
Input: DC12V-30V;
Supply current:
Red, Green, Blue<75mA(12VDC); <40mA(30VDC);
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)
IO type: Job light: Gree; Job+Sense: Yellow;
Mis-picking(Sense but no job): Red.
IB intelligent bus: Indicator color customized and controlled by instruction.
IOD: Three colors control separately
TW-T3N3-30
Supply Voltage
12V-30Vdc
Supply Current
Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc
Output Rating:
a, Maximum Load
150mA
b, On-State Saturation Voltage
<2V(10mA dc); <2.5V(150mA)
c, Off-State Leakage Current
<10uA(30Vdc)
Indicators
7 colors available: red, green, yellow, blue white etc
I/O Type
IB intelligent bus
7 colors controlled by instruction
Electronic Protection
Protected against reverse polarity and over current
Output Response Time
25 milliseconds(max.) On and Off
Connections
M12 QD wth 0.3m cable, or 1m cable
Working temperature (℃)
-40℃~50℃
Humidity
95% at 50℃
IP rating
IP69K
Dimension
50mmx50mm(ODxH)
Mounting thread
M30x1.5mm
Material
ABS and Polycarbonate
Approval
CE FCC
Feature
Interactive touch button;
Actuated with work gloves;
Rugged, fully encapsulated IP69K construction;
7 colors available
Price is much cheaper than international brand
Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red
