Food and food service with Light Directed Picking
-
$50.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air
- Port:
- Shenzhen, Hongkong, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000/week |
| Supply Ability: | 1000/week |
| Payment Type: | T/T,Paypal,online payment |
| Incoterm: | FOB |
| Certificate: | CE FCC ROHS |
| HS Code: | 8512201000 |
| Transportation: | Air |
| Port: | Shenzhen,Hongkong,Guangzhou |
Food and food service with Light Directed Picking

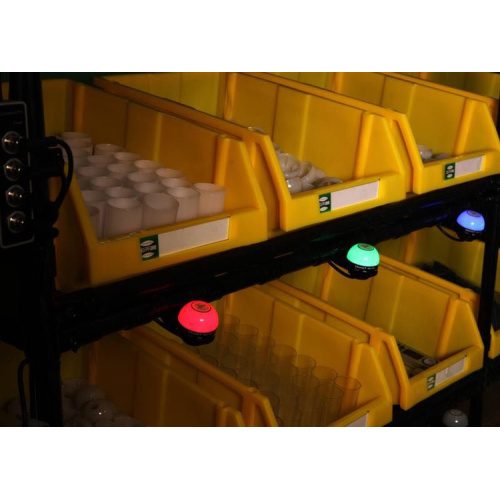

How does pick-to-light work?
1. Operators scan item barcodes that are attached to temporary and reusable holding containers, for example, shipping cartons.
2. The system’s alphanumeric display (typically, LED lights) lights up, illuminating a path to guide the operator to the indicated storage location. There, the system then indicates how many and which items should be picked.
3. An operator picks the items, places them in the holding container, and then presses a button to confirm the picking-Pick to display.
4. The system continues in this way, illuminating each sector for picking until all items have been picked and placed in their respective holding containers.
5. Depending on the pick-to-light system, additional options may be available. In addition to the LED Indicators , pick-to-light also offers an acknowledgment button and a digital readout, to enable more detailed instructions and options.
Power: Less 5W;
Input: DC12V-30V;
Supply current:
Red, Yelloe, Blue maximum 50mA 24DC;
Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);
White<205mA(12VDC); <100mA(30VDC)
Job inactivity--Red, Job activity--Blue;Job-- finish--Green;
IB intelligent bus: Indicator color customized and controlled by instruction.
TW-T2N2
Supply Voltage
12V-30Vdc
Supply Current
Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc
Output Rating:
a, Maximum Load
150mA
b, On-State Saturation Voltage
<2V(10mA dc); <2.5V(150mA)
c, Off-State Leakage Current
<10uA(30Vdc)
Indicators
7 colors available: red, green, yellow, blue white etc
I/O Type
IB intelligent bus
7 colors controlled by instruction
Electronic Protection
Protected against reverse polarity and over current
Output Response Time
25 milliseconds(max.) On and Off
Connections
M12 QD wth 0.3m cable, or 1m cable
Working temperature (℃)
-40℃~50℃
Humidity
95% at 50℃
IP rating
IP69K
Dimension
50mmx50mm(ODxH)
Mounting thread
M30x1.5mm
Material
ABS and Polycarbonate
Approval
CE FCC
Feature
Interactive touch button;
Actuated with work gloves;
Rugged, fully encapsulated IP69K construction;
7 colors available
Price is much cheaper than international brand
Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red
