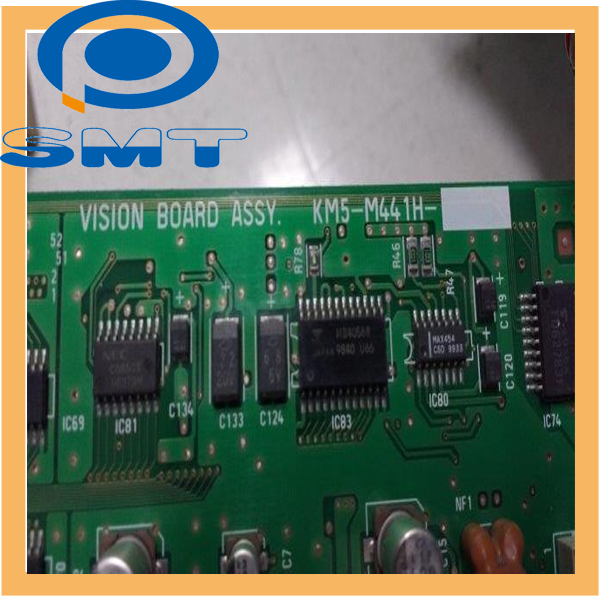

Yamaha YV100 vision board KM5-M441H-03X

Yamaha YV100 vision board KM5-M441H-03X

FUJI SMT Equipment Spare Parts;

Other Panasonic SMT Machine Spare Parts;

Smt Yamaha Spare Parts;

Siemens Siplace Smt Parts;

Speedline MPM Spare Parts;

Samsung SMT Spare Parts;

juki used machine parts;

SMT Nozzles For Hitach Universal Sony Ipulse;

Part number: KM5-M441H-03X

Part name: YV100 VISION BOARD

delivery time: within 2 days.

Payment: T/T,PAYPAL,WESTERN UNION,GRANMONEY

YV100II

1 KM5-M4510-10X MOTHER,KM5

2 KM5-M5880-01X D.POWER ASSY.

3 KM5-M4200-02X SYSTEM UNIT ASSY.

5 KL0-M53E2-00X TRANS1 ASSY KL0

8 KJ1-M5303-00X SW POWER MMR270

11 KM5-M5840-02X SERVO BOARD ASSY

12 KM5-M441H-02X VISION BOARD ASSY

13 KJ0-M5810-E2X DRIVER BOARD ASSY

13-1 KJ0-M5810-42X DRIVER BOARD ASSY

YV100X

No. Part No. Part Name Q'ty Remarks Date Revised No.

1 KV1-M4110-00X BOX ASSY,C/R 1

2 KM5-M4510-20X MOTHER BOARD ASSY. 1

3 KM5-M5840-02X SERVO BOARD ASSY. 1

4 KM5-M4200-01X SYSTEM UNIT ASSY. 1

4-1 KM5-M4200-02X SYSTEM UNIT ASSY 1 X2 M960134

5 KJ0-M5810-K2X DRIVER BOARD ASSY. 1

5-1 KJ0-M5810-K3X DRIVER BOARD ASSY 1 X1 M960067

6 KM5-M441H-02X VISION BOARD ASSY. 1

7 KM5-M5880-11X D.POWER ASSY. 1

8 KJ0-M4134-10X PANEL NO SERVO 1

9 KJ0-M4132-10X PANEL ,NO DRIVER 2

10 KM5-M4138-10X PANEL LEFT 2 1

11 KJ1-M4185-10X FAN MOTOR ASSY 3

12 KV1-M5303-00X SW POWER DC5 1

13 KV1-M5303-10X SW POWER DC12 1

14 KL0-M53E2-00X TRANS 1 ASSY KL0 1
