JDiag JD201 Code Reader

JDiag JD201 Code Reader With Color Screen for OBDII/EOBD/CAN

Product Detail

JDiag JD201 Code Reader is Original, can update online via internet directly.

Comes with 2.4 inch color screen, OBDII Cable comes with LED Light, small, easy to handle.

Can work on ALL 1996 and newer vehicles (OBD II & CAN) - domestic and import.

Features

Works on ALL 1996 and newer vehicles (OBD II & CAN)-domestic and import
Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
Bright color coded LEDs and built in speaker provide both visual and audible indication for readiness verification
Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
Easily determines the cause of the Malfunction Indicator Light( MIL)
Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors
Displays DTC definitions on the TFT color screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Reads live PCM data stream
Retrieves vehicle information(VIN, CIN and CVN)
Multilingual menu and DTC definitions- English, Spanish and French, etc
Extremely easy to use and highly reliable
Internet updateable and upgradeable

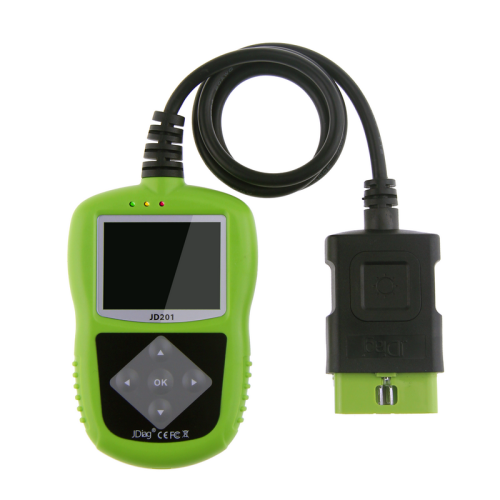

1. OBD II CONNECTOR – Connects the scan tool to the vehicle's Data Link Connector (DLC).
2. GREEN LED – Indicates that engine systems are running normally (The number of monitors on the vehicle which are active and performing their diagnostic testing is in the allowed limit, and no DTCs are present).
3. YELLOW LED – Indicates there is a possible problem. A [Pending" DTC is present and/or some of the vehicle's emission monitors have not run their diagnostic testing.
4. RED LED – Indicates there is a problem in one or more of the vehicle's systems. The red LED is also used to show that DTCs are present. DTCs are shown on the Scan tools display. In this case, the MIL lamp on the vehicle's instrument panel will light steady on.
5. LCD DISPLAY - Indicates test results.
6. UP BUTTON - Scrolls up through menu items.
7. LEFT BUTTON - Scrolls left through menu items.
8. RIGHT BUTTON - Scrolls right through menu items.
9. DOWN BUTTON - Scrolls down through menu items.




Specifications

Display 2.4'' TFT color display
Operating Temperature 0 to 60°C (32 to 140 F°)
Storage Temperature -20 to 70°C (-4 to 158 F°)
External Power 8.0 to 18.0 V power provided via vehicle battery
Length\Width\Height 117 mm (4.61") \72 mm (2.83")\18 mm (0.71")
Weight 0.18kg (0.39lb, without wire) or 0.21 kg (0.46lb, with wire)

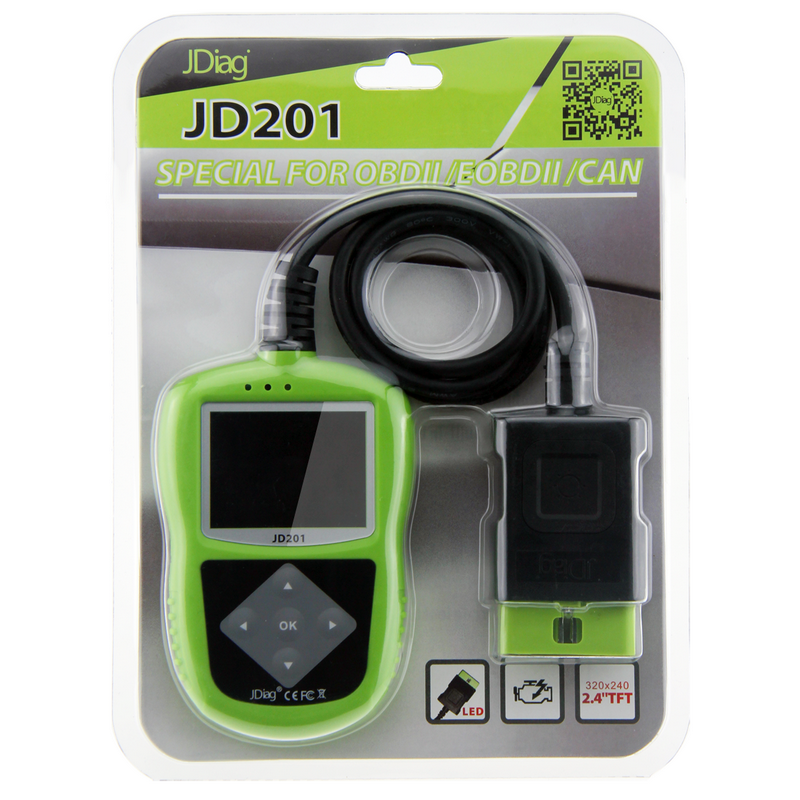

Package

1 x JD201 Interface with OBDII Cable
1 x User manual
1 x CD (DTC Library)
