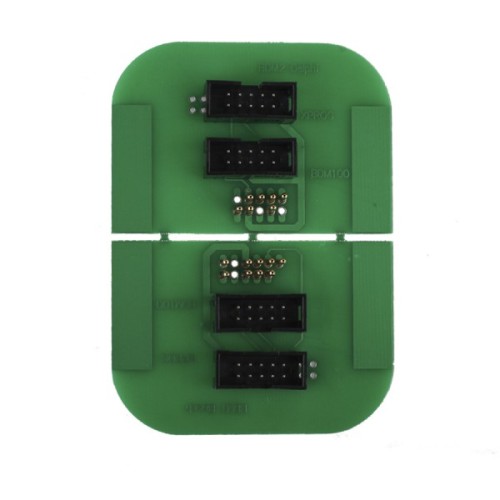

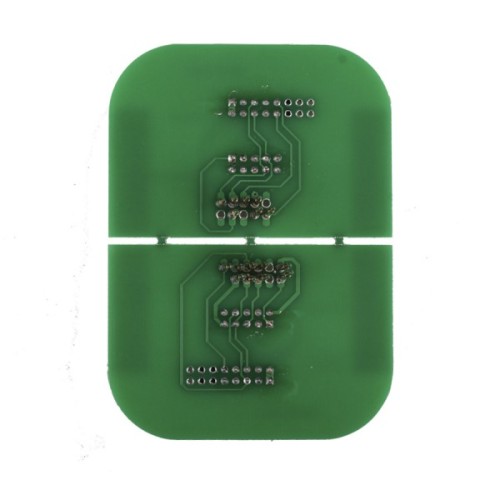

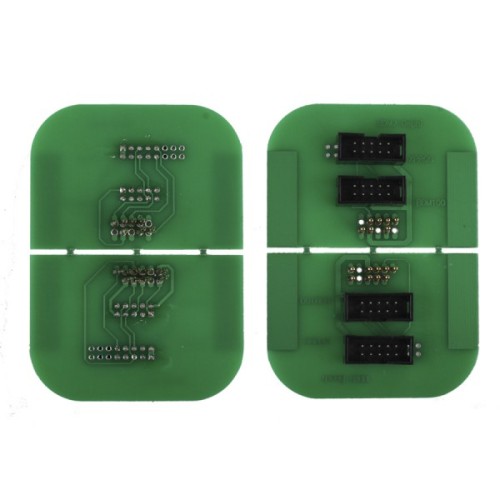

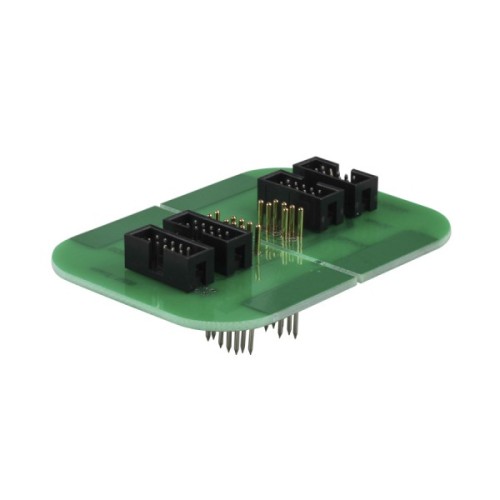

BDM1 BDM2 Spring Adapters for BDM Frame

Product Information:



1.BDM1 - Spring Adapter for BDM frame (Bosch ECU MPC Reading by BDM)


Most common used BDM spring adapter for EDC16, MED7 Bosch ECU programming by BDM. Use it for:

EDC16 ( VAG, Mercedes, Ford, PSA, BMW and other cars)ME9 (VAG, BMW, Mercedes)

All other cars with 2.54mm 14pin BDM pinouts

Using with BDM100 works without aditional power supply to ECU, with XPROG-M - need to add power supply to ECU or +12V to BDM100 connector pins



2.BDM2 Spring Adapter for BDM Frame (Delphi,Motorola)



BDM adapter for ECUs with standard 2.54mm BDM MPCxxx pinout

Delphi

Motorola

Mercury Marine

Perkins
