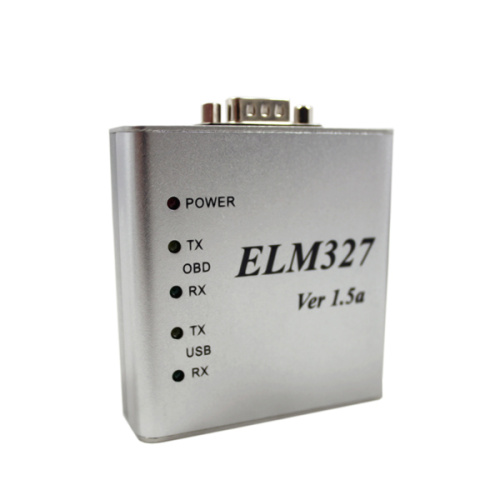

ELM 327 1.5V USB CAN BUS Scanner

ELM 327 1.5V USB CAN BUS Scanner

Device Description:

Processor: ELM327 USB

OBD-II Protocols: ISO15765-4 (CAN)

ISO14230-4 (KWP2000)

ISO9141-2

J1850 VPW

J1850 PWM

Output protocol: RS232

Baud rate: 9600 or 38400

Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage: 12V, internal protection from short circuits/overvoltages

Nominal idle current: 45 mA

OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

The software supports two platforms - DOS and Windows.

Features:

The program lets you perform the following operations:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...

Upcoming Features:

Data graphing and logging

Freeze Frame data

Continuous and Non-Continuous Oxygen Sensor test results

Free software:

Scantool.net

GM Mode 22 Scan Tool by Terry

OBD Gauge for PalmOS and Pocket PC by Dana Peters

OBD Logger by Jonathan Senkerik

OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

obd2crazy.com

OBD2 Scantool by Ivan Andrewjeski

OBDII for ELM322 by David Huffman

pyOBD by Donour Sizemore for MacOSX and Linux

RDDTC by Pete Calinski

Real Scan by Brent Harris

ScanTest for Pocket PC by Ivan Ganev aka a-ser

wOBD by WDT

Available cars:

Benz 2001/02/03 W203 C200K (ISO)

BMW X5 2002 (ISO) Chevrolet Aveo (ISO)

Citroen C3 2004 (ISO) ? Daihatsu YRV 2005 (ISO)

Daihatsu YRV Turbo 2006 (ISO)

Fiat Tipo 2002 (ISO)

Ford New?ocus 2006(CAN)

Honda Accord 2006 JDM (ISO)

Honda Accord Euro R 2004 JDM (ISO)

Honda City GD8 (ISO)

Honda Civic ES 1.6A (ISO)

Honda Integra Type R DC5 JDM (ISO)

Honda Jazz 1.4M (ISO)

Hyundai Accent 2004 (ISO)

Hyundai Getz 1.3A 2004 (ISO)

Hyundai Getz 1.6M 2004 (ISO)

Hyundai Matrix 2004 (ISO)

Hyundai Santa Fe 2.4A (ISO)

Hyundai Sonata GLS (ISO)

Hyundai Sonata 2005 (ISO)

Hyundai Tuscani FX (ISO)

Kia Carens 2005 (ISO)

Kia Magentis 2005 (ISO)

Kia Rio LS (ISO)

Kia Sorento SUV 2005 (ISO)

Lexus es300 Mazda 2 (CAN)

Mazda 5 (CAN)

Mazda 6 (CAN)

Mazda Premacy 2001 (ISO)

Mazda RX8 (CAN)

Mitsubishi Colt 2003 (ISO)

Mitsubishi Colt Plus 2005 (ISO)

Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000, RS/GS----1994-1996 GS all can do, Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)

Mitsubishi Lancer Evolution IX 2006 (ISO)

Mitsubishi Pajero 3.5 V6 2006 (ISO)

Nissan Sunny B14 (ISO)

Nissan Sunny VIP FB15 (ISO)

Nissan X-Trail 2.0L 2004 (ISO)

Nissan X-Trail 2.5L 2004 (ISO)

Peugeot 206 2001 –Only can show RPM

Peugeot 206 (ISO)

Peugeot 307 (ISO)

Peugeot 407 (ISO)

Renault Megane II 2005 (ISO)

Renault Kangoo 2006 (ISO)

Subaru Impreza 1.6TS 2002 (ISO)

Subaru Impreza WRX 2005 (ISO)

Toyota Camry 2.0A 2004 (ISO)

Toyota Camry 2.4A 2005 (ISO)

Toyota Corolla Altis 1.6A 2005 (ISO)

Toyota Corolla GLXi G8 1999 (ISO)

Toyota Corolla G9 2002 (ISO)

Toyota Vios 2004 (ISO)

Not available vehicles:

Mazda 323 Protege 2003 (OBD-I)

Mitsubishi Lancer 1.6M 2006

Nissan Sunny (N16)

Nissan Cefiro (Teana) 2005

Nissan sentra 1.8 2000/2005

Nissan Cefiro (Teana) 2005

Proton Perdana V6

Subaru Legacy GT 2005

Toyota camry 2002

Toyota Wish JDM (Missing Pin 5 in DLC)

Toyota IST JDM (Missing Pin 5 in DLC)

Toyota altis 1.8 2004

Peugeot 206 2000

Suzuki Jimny 1.3 2000

Diesel engine

Package includes:

Elm327 main unit

One com interface

One USB cables

One CD software

FAQ:

Q:What is the difference for the v1.5 elm327, the plastic elm327 and the bluetooth elm327?

A: There are the same functions for them, the only different is the interface: the v1.5elm327 has both usb com interface,the plastic elm327 just has usb interface, and the bluetooth elm327 just has no cable ,it works by the bluetooth.

Q:For elm 327,customer can not connect on any of the com port settings, how do they do?

A:If you encounter this case,pls contact us. we will send a file to you for instructions to solve this problem.

Q:.What is the difference among elm327(plastic) elm327(metal box) and bluetooth elm327?can they update?

A: For these three kinds of elm 327,they have the same functions. the only diference is the interface.the plastice elm327 just have USB interface; the metalbox elm327 has two interfaces:USB interface and COM interface;the bluetooth one doesn`t have any interface,it works by the bluetooth.For these elm 327,they all can not update.

Q:Can elm327 do his cars?1) 1997 GM Saturn 2) 1998 Toyota 4Runner 3) 2000 Didge caravan.

A:The available cars and unavailable cars are all listed in details on our website,you can check it on our website,if you can not see your car type, it means it can not do your car

Q:How can you download the driver software on our website?

A:You can go to our website:www.uobd2.com,and then find the column [download", find the elm327,just download the attachment.

Q:the version of software and hardware for elm 327?

A:The version for software is 1.12v,and the version of hardware is 1.5v.
