Why buy the Multidiag Pro+?

1. Software version: V2014.03, free activation. Suports almost all the vehicles in the world.

2. Support Multi languages: English, Czech, Dansk, Dutch, Finnish, German, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Suomi, Swedish, Turkish.

3. Support Cars, Trucks and OBD2.



Multidiag Pro+ Feature:

1. With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands.

2. With Truck software package, you are able to perform brand diagnostics for light and heavy vehicles,buses and trailers from 1995 onwards.

3. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes.

4. Support multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), RS485 (J1708), TTL and (SPI, analog in, 5volt out).





Multidiag Pro+ Functions:



Flight Recorder:  With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the

specific error so that you can investigate the detected error at a later time. CDP+ is equipped with built-in memory thus removing the need to bring a computer. Memory card not include in

package.

Multi Color Indicator:   With the multi colour indicator on CDP+, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the Multi-Cardiag CDP+ is in communication with the vehicle control unit.

Connector with LED:  To locate the diagnostic connector in the vehicle with ease, even if it`s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.

Voltage Check:   When Multi-Cardiag CDP+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle`s voltage level of 12 or 24 volts. If the voltage gets too high or too low, Multi-Cardiag CDP+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.



Chassis Number Vin:  In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.



ISS:  Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.



ISI: Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.Report Function  Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.



OBD-Function: CDP+ is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.



Help Function:  For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.



Package List:

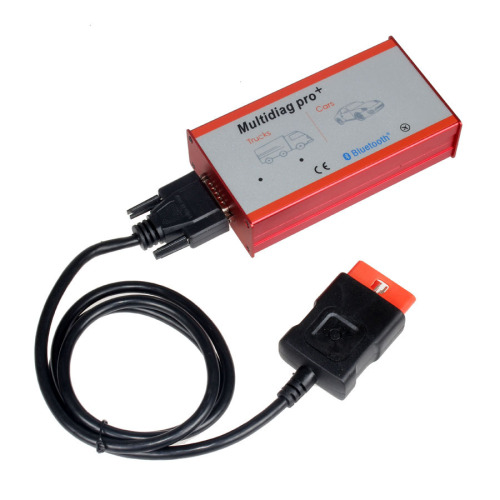

Multidiag Pro+ Interface

LED OBD2 Cable

USB Cable (3 Meter)

Software CD
