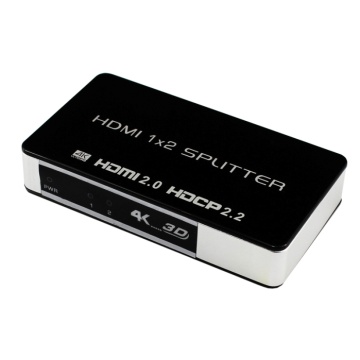

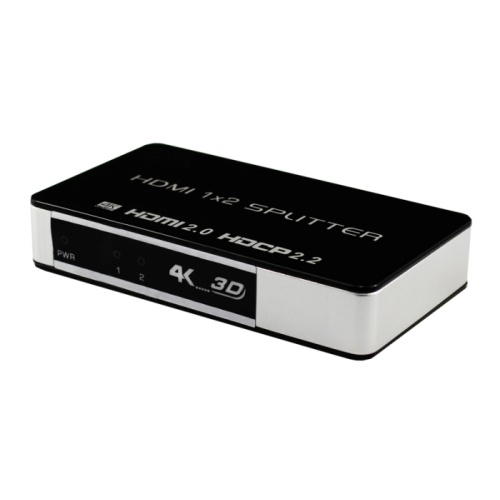

HDMI Splitter 2.0 1x2 with 1 input 2 outputs support 4k 60Hz

HDMI Splitter 2.0 1x2 with 1 input 2 outputs support 4k 60Hz

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union, Cash

Incoterm:: FOB, CFR, CIF, exw

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen Chiwan, Shenzhen Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000pcs/item/month
Supply Ability:	100000pcs/month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash
Incoterm:	FOB,CFR,CIF,exw
Certificate:	CE FCC UL Rohs
HS Code:	8543709990
Transportation:	Ocean,Land,Air
Port:	Shenzhen Chiwan,Shenzhen Yantian

Product Description

HDMI Splitter 2.0 1x2 with 1 input 2 outputs support 4k 60Hz

Features:

HDMI Splitter 2.0 1x2 with 1 input 2 outputs support 4k 60Hz

◆ Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal
device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
◆ On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0
specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP1.4/2.2 specification.
◆ Wide Frequency Range: 25MHz-600MHz.
◆ Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
◆ Supports jitter Clean capability for more cascadable stages.
◆ Supports 12-bit Deep Full HD, Full 3D and 4k2k 60Hz video.
◆ Supports standard Audio,DSD Audio and HD(HBR)Audio.

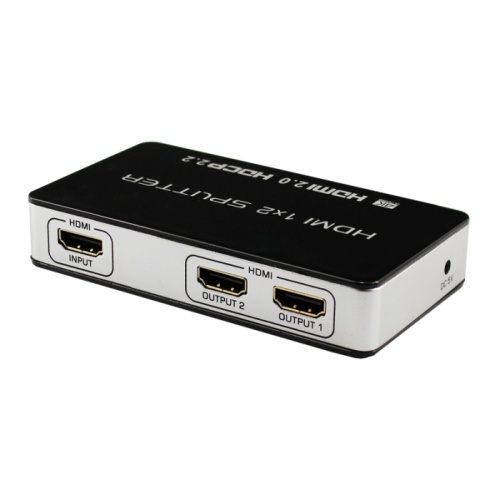

◆ Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.
◆ Supports conversion of HDMI signalling to DVI/HDMI signalling.
◆ Supports HDCP 1.4 to HDCP2.2 conversion.
◆ Supports HDCP 2.2 to HDCP1.4 conversion.
◆ Supports on-chip 512 byte E-DDC EDID RAM for input port.
◆ Supports hot plug-play.
◆ Cascadable to make more than 4 output ports.
◆ Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys.

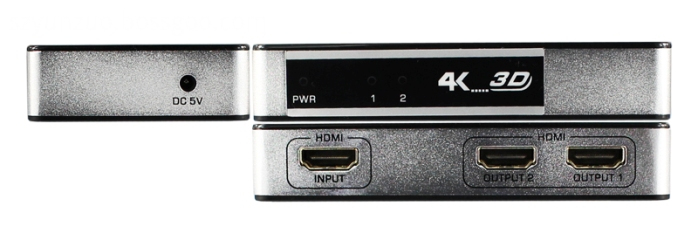

◆ LED indicate signal and power mode.
◆ Power supply(please refer to technical parameter).

Specifications:

HDMI Splitter 2.0 1x2 with 1 input 2 outputs support 4k 60Hz

HDMI version..........................................................................HDMI 2.0, HDCP 2.2
HDMI resolution ..................................................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p
Supports video color format .....................................................24bit/deep color 30bit, 36bit, 48bit
Supports audio format.......................................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth...........................................................................600MHz
Max baud rate.........................................................................18.0Gbps
Input/Output TMDS signal.....................................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal.......................................................5Volts p-p (TTL)
Input cable distance...........................................................≤15m AWG26 HDMI standard cable
Output cable distance.........................................................≤20m AWG26 HDMI standard cable
Max working current..........................................................800mA

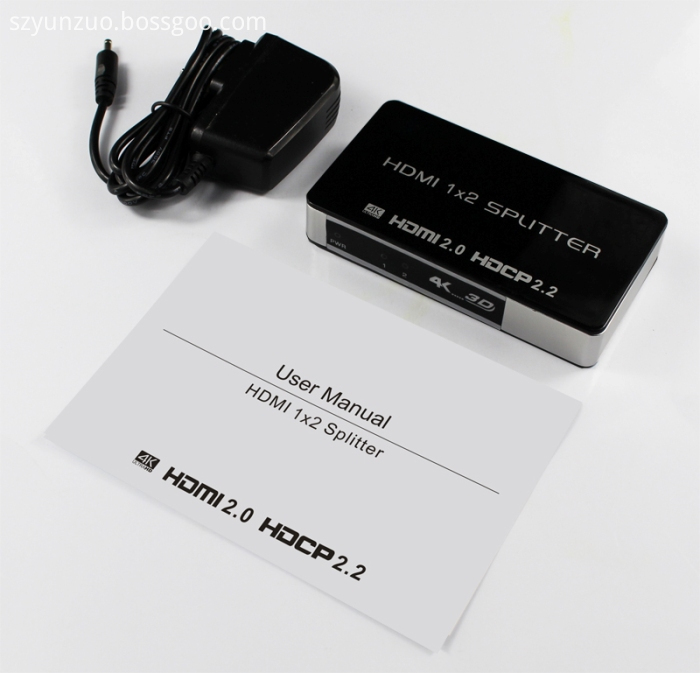

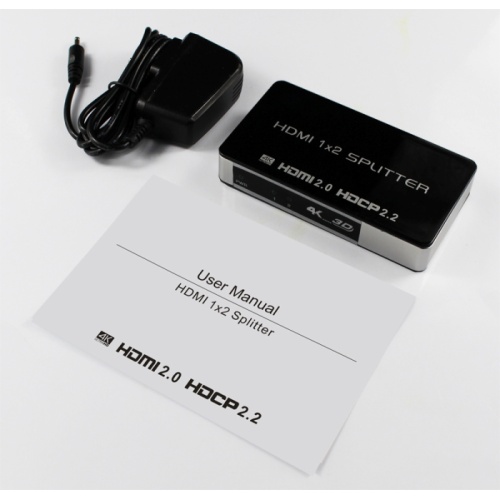

Power adapter format Input.................................................AC100V-240V (50/60Hz) ; Output: DC 5V/1A
Operating Temperature range.............................................. (-15 to +55℃)
Operating Humidity range................................................-5 to 90%RH (No Condensation)
Dimension (L x W x H).................................................... 110x60x20(mm)
Weight--........................................................................105g
