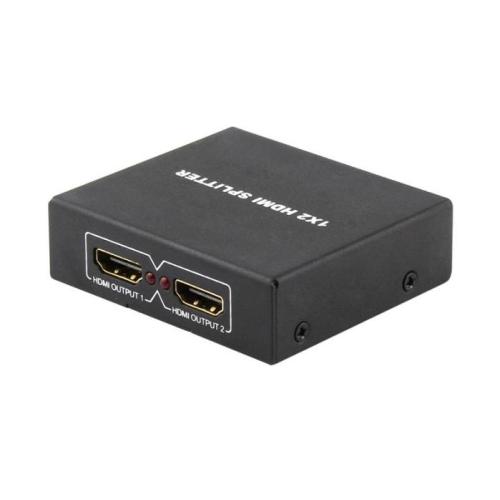

HDMI splitter V1.3 1 in 2 out support 1080p 3D
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 300 Set/Sets
- Min. Order:
- 300 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian, Shenzhen Yunzuo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE FCC RoHS |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian,Shenzhen Yunzuo |
HDMI splitter V1.3 1 in 2 out support 1080p 3D
Introduction HDMI splitter V1.3 1 in 2 out support 1080p 3D
Split one HDMI input signal to two HDMI output signals identical to the input signal.
Features:
Fully HDMI 1.3 Specification compliant. HDCP complaint.
Supports high resolutions up to 1080p, and also supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.Supports 12-bit Deep Full HD, Full 3D and 1080p video.
Supports Standard Audio, DSD Audio and HD (HBR) Audio.
Extend the transmission distance and improve transmission signal.
It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
Compatible with DVI through a HDMI to DVI adapter.Supports hot plug-and-play.
LED indicate signal and power mode.
HDMI splitter V1.3 1 in 2 out support 1080p 3D Specifications:
HDMI version.......................................................................................HDMI 1.3
HDMI resolution ...............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format ..........................24bit/deep color 30bit, 36bit, 48bit
Max band width.....................................................................................297MHz
Max band rate.....................................................................................8.91Gbps
Input/Output TMDS signal ..................................................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...............................................................5Volts p-p (TTL)
Max working current..................................................................................500mA
Power adapter format Input:.....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range..................................................................(-15 to +55℃)
Operating Humidity range ............................................................5 to 90%RH (No Condensation)
Dimension (L x W x H)....................................................................70x60x20mm
Vertical Frequency Range.............................................................1080p@60Hz
Support audio format...........................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
1080P Input cable distance...................................................≤15m AWG26 HDMI standard cable
1080P Output cable distance...................................................≤20m AWG26 HDMI standard cable
Weight...............................................................................................................130g
Certificates: CE FCC RoHS
HY-1023-V0-D1 HDMI 1 in and 2 out Package content:
HDMI 1x2 Splitter x1
Power Adapter x1
User Manual x1
