HY-4402-V0-A HDMI Matrix Switch 4 x 2
HY-4402-V0-A HDMI Matrix Switch 4 x 2 FEATURES;
Four HDMI input signals switched or split to two HDMI sink devicesOne of the HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable
Support 3D
Support 4K X 2K
With HDMI-CEC function
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fps/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG24 HDMI standard cable length
output up to 25 metres AWG24 cable length
Inputs can be switched with the IR remote control, also can be controled by two buttons
Output cable distance.................................................≤25m AWG24 HDMI standard cable
Max working current.................................................................................................1300mA
Power adapter format.............................Input:AC(50Hz,60Hz)100V-240V;Output:DC5V/2A
Operating Temperature range..........................................................................(-15 to +55℃)
Operating Humidity range.....................................................5 to 90%RH(No Condensation)
Dimension(LXWXH).....................................................................................250x27x75(mm)
Weight............................................................................................................................380g
HY-4402-V0-A HDMI Matrix Switch 4 x 2 IR Remote Operating Instruction
1. Firstly take off the plastic film that inserted in the rear of remote board
2. The A and B signifies the HDMI A output B output
3. If the Signal output from A, Only press the number key below A line. Like after you press the 2
key under A line, the signal 2 will output from A
4. ARC: Audio return switch (only the OUT-A output port support this feature).
5. SPDIF/:SPDIF and Headset audio ON/OFF switch
6. 2CH:2 channel stereo mode.
7. 5.1CH:5.1 channel model.
8. AUDIO COPY: Read EDID from sink devices automatically
9. Please insulate plastic film into remote panel tail for safety when you are not on remote control

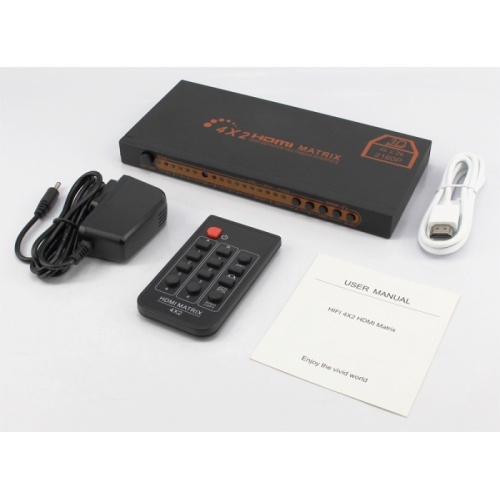

HY-4402-V0-A HDMI Matrix Switch 4 x 2 Package content:
The accessories with the machines lists as picture:
1. 5VPower Adaptor
2. Remote
3. One pc of Manual
